LiL'Matey 2 Walksnail

By JakacBatko on Feb 21, 2025

2  0  0

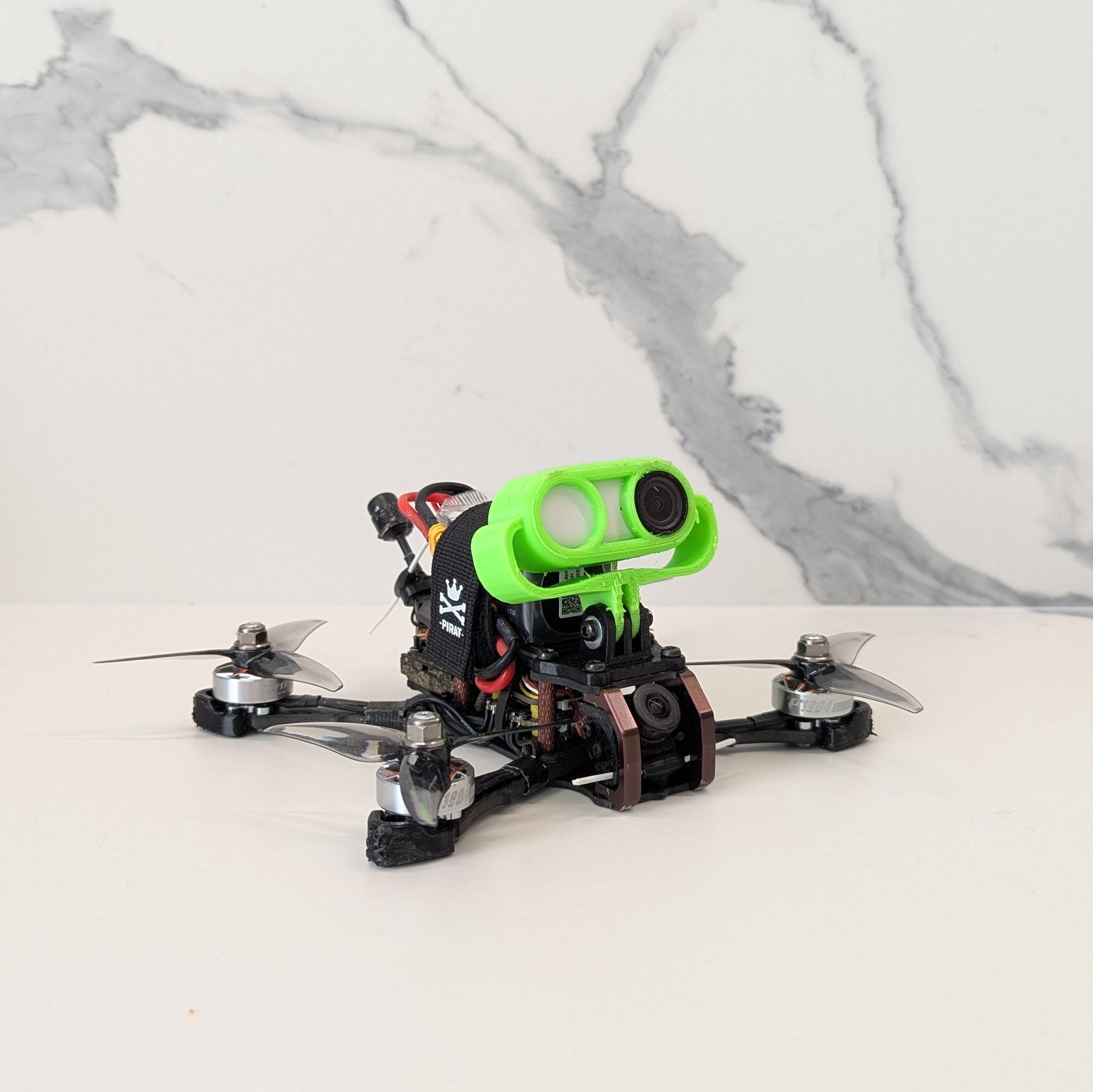

A 3,5 inch drone that feels like 5" and has agility of a 2,5". A compact design for flying tight spots allows installation of additional camera and buzzer. with more heavy setup it achieves momentum feeling of a big drone when performing punches while powerful motors provide trust that is needed for fast turns and tricks.

SIZE: (with props and camera)
Width: 22 cm
Length: 19,5 cm
Height: 8,5 cm

WEIGHT:
Dry weight: 214 g
Full weight (4S 850mAh): 314 g
Max weight (4S 850mAh + Insta GO2): 353 g

FLIGHT TIME:
Cruising speed: ≈ 8 min
Full throttle: ≈ 3 min

3D Parts: LINK
Flying: LINK

Thank you Reddit for all the help.

Photos

Part List

Frame

LiL'Matey2 by Piratframes
Drone-fpv-racer.com
See Site

Flight Controller

SpeedyBee F405 Mini
Rotorama.de
See Site

ESCs

SpeedyBee 35A Mini BLS (3 builds)
Rotorama.de
See Site

Motors

4 x Pacer P1804 5mm Shaft - 3400KV Motor By T-Motor
Drone-fpv-racer.com
See Site

Propellers

Gemfan Hurricane 3520-3 - Rotorama
Rotorama.de
See Site

FPV Camera

Avatar HD V2 Camera By Walksnail
Drone-fpv-racer.com
See Site

FPV Transmitter

Avatar HD VTX V2 By Walksnail
Drone-fpv-racer.com
See Site

Antenna

Antenna For Avatar HD VTX V2 By Walksnail
Drone-fpv-racer.com
See Site

Receiver

SuperD ELRS 2.4G Diversity Receiver By BetaFPV
Drone-fpv-racer.com
See Site

Batteries

Tattu R-Line Version 4.0 850mAh 4S 130C Lipo Battery Pack (2 builds)
Drone-fpv-racer.com
See Site

Radio

Boxer Radio - ELRS 2.4G By RadioMaster
Drone-fpv-racer.com
See Site

Goggles

Walksnail Avatar System
Caddxfpv.com
See Site

3D Printed

Lil'Matey2 - Motor protection (4pcs)
Drone-fpv-racer.com
See Site

HD Camera

Insta360 GO 2 – The World’s Smallest Action Camera
Insta360.com
See Site

Misc Parts

Buzzer für FC mit JST-Kabel
Rotorama.de
See Site
Show stores (4)
