Chameleon Ti 1ST Build

By David125 on Feb 21, 2020

5  110  1

My first Build :)

All went fine, but I've got big issues with fpv video feed, very noisy

I tried many things but the issue solved adding a small 9V BEC to power the VTX
The Kakute F7 has not a 9V Filtered output so I had to power the VTX on VBAT... the Tekko32 it's a very noisy ESC and the fpv video was crappy

Adding the BEC, and the capacitor of course, the video is 100% clear :)

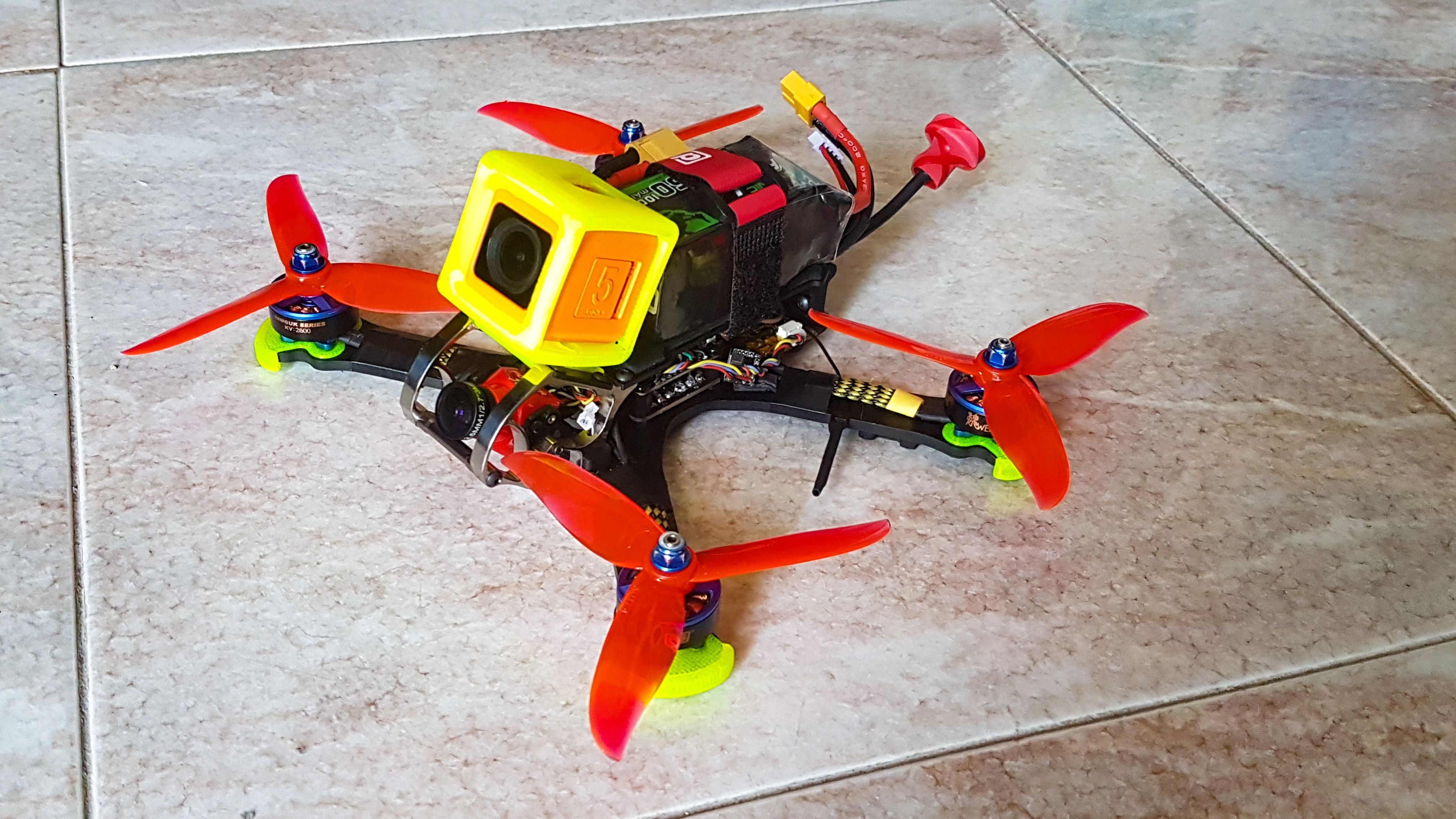

Photos

Part List

Frame

Armattan Chameleon Ti 5" Frame (54 builds)
Getfpv.com
$99.99

Flight Controller

Holybro Kakute F7 V1.5 STM32F745 Flight Controller W/ OSD Barometer for RC Drone (12 builds)
Banggood.com
$45.00

ESCs

Holybro Tekko32 F3 45A 4-in-1 ESC (30 builds)
Getfpv.com
$56.99

Motors

4 x DYS Samguk Series Wei 2207 2300KV 2600KV 3-4S Brushless Motor for RC Drone FPV Racing (73 builds)
Banggood.com
$41.16

Propellers

2 Pair DALPROP T5045C Cyclone 5 Inch 3 Blade Propeller Clover Prop Black Red Orange Green (216 builds)
Banggood.com
$3.37

FPV Camera

Mini FPV Drone Cameras for - RaceDayQuads (33 builds)
Racedayquads.com
$44.90

FPV Transmitter

Holybro Atlatl HV V2 5.8GHz Video Transmitter (37 builds)
Getfpv.com
$30.99

Antenna

2 PCS Emax Pagoda 2 5.8G 50mm/80mm 5cm/8cm RHCP FPV Antenna RP-SMA Male Red for RC Drone (17 builds)
Banggood.com
$14.99

Receiver

FrSky R-XSR Ultra SBUS/CPPM D16 16CH Mini Redundancy Receiver for RC Multirotor FPV Racing Drone (936 builds)
Amazon.com
$24.00

Batteries

2 x 4X Ovonic 4S 14.8V 1550mAh 100C RC Lipo Battery XT60 Plug for 250 FPV Freestyle 889551003889
Ebay.com
$139.10

Radio

Jumper T16 Pro with Hall Gimbals Open Source Multi-Protocol Radio Transmitter JP4-in-1 RF Module 2.4G 16CH 4.3" LCD 16 CH T (23 builds)
Amazon.com
$229.99

Goggles

FatShark Dominator V3 RTF Bundle FPV Goggle with OLED Receiver Battery Case for RC Drone (63 builds)
Banggood.com
$299.99

Video Receiver

ImmersionRC RapidFIRE w/ Analog PLUS Goggle FPV Receiver Diversity Module (179 builds)
Banggood.com
$149.00

Soldering Iron

MINI TS100 Digital OLED Programmable Interface DC5525 Soldering Iron Station Built-in STM32 Chip (264 builds)
Banggood.com
$53.99
Show stores (5)

Discussion

Sign in to comment

David125   Feb 28, 2020
1

The 9V Bec needed to cleanup the fpv video feed
