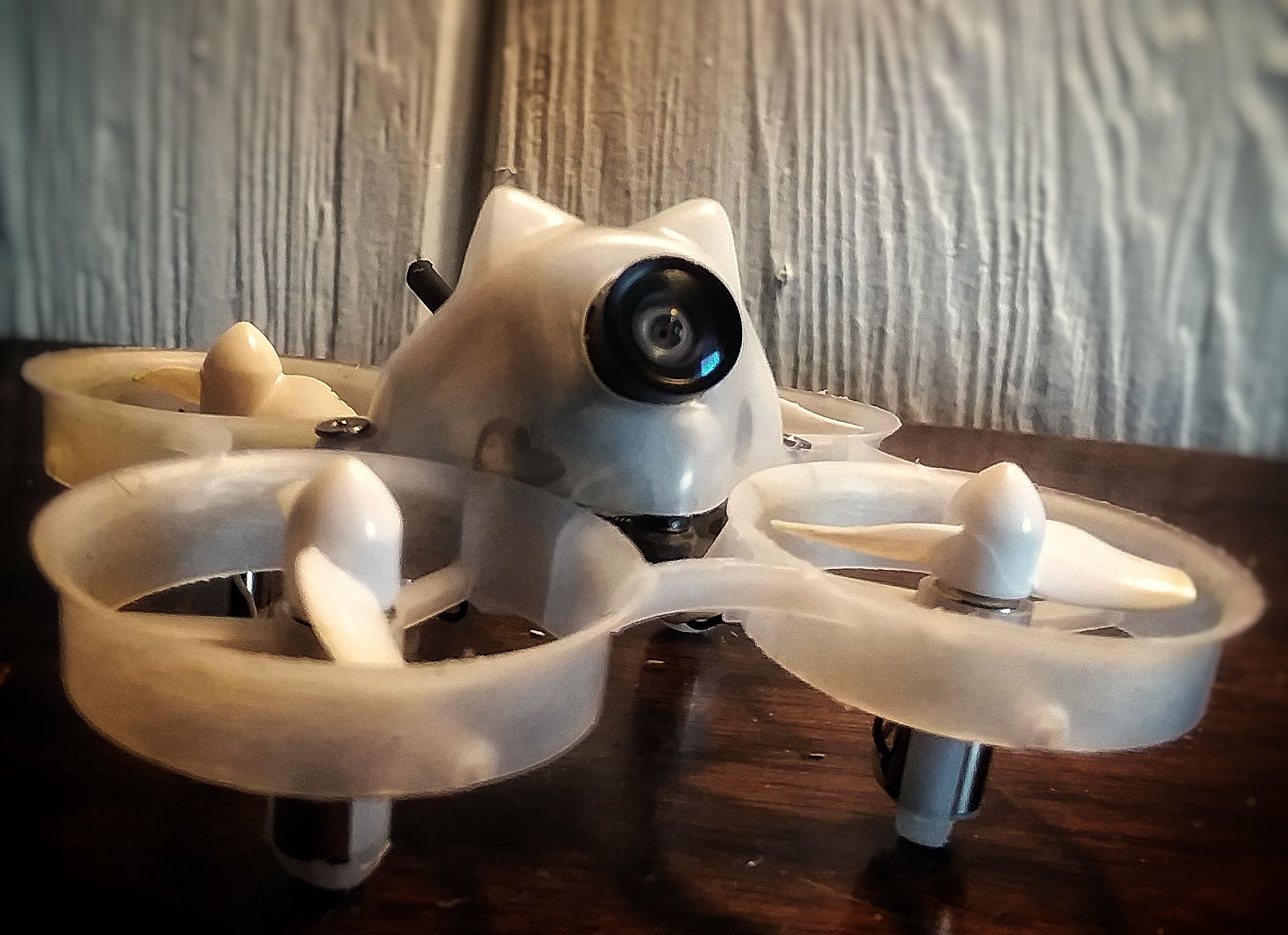

awesome flying little budget quad!
flashed with the most recent NFE silverware with the updated filtering: https://community.micro-motor-warehouse.com/t/notfastenuf-e011-bwhoop-silverware-fork/5501/1402
jst 1.25 3 pin connector direct soldered to the board for easy flashing with ST link and keil. more or less as easy as connecting to betaflight.
custom vacuum formed HDPE canopy.
controlled with an irx4 multi protocol module & qx7 tx.
actual build cost without the bulk of multi-packs is $37.98
updated props to gemfan triblades. feels faster...
Photos
Part List
Frame |
BETAFPV 2pcs Beta65S V4 Version 65mm Whoop Frame Kit 3.6g Compatible for 7X16mm 19000KV Motor for Tiny Whoop Racing
Amazon.com
|
$9.99 |
Flight Controller |
BETAFPV Lite Brushed Flight Controller V2 LiteOSD Compatible with Silverware Firmware for Micro FPV Whoop Drone Beta65S Lite
(7 builds)
Amazon.com
|
$1.00 |
Motors |
BoldClash CM03 716 Insane 19000KV Coreless Brushed Motors (2CW+2CCW)
(9 builds)
Boldclash.com
|
$7.99 |
Propellers |
Flight-sky 20pcs 31mm 2-Blade Propellers Inductrix Props for Blade Inductrix Tiny Whoop FPV Micro Drone Quadcopter
Amazon.com
|
$6.50 |
FPV Camera |
LST - S2 5.8G 800TVL HD Micro CMOS FPV Camera 150-Degree Angle Of View 3.6g Ultralight NTSC / PAL Switchable
(6 builds)
Aliexpress.com
|
$12.91 |
Nice build man, where dit you get that canopy. Right know i got one frome the ur65 but i really dont like that canopy.
Guides & Reviews
AirbladeUAV has done it again and this time they've brought long range to the 5" class! Based on the popular Transformer Mini, the new Transformer 5" Ultralight adopts a lot of the same design philosophies with larger props and more payload capacity. It can fly upwards of 20 minutes on a 4 cell Li-Ion battery pack and in ideal conditions it's got a range of over 4 to 5 miles. In this guide I'll walk..
Read more
With the release of the DJI FPV Drone cinematic FPV has become a lot more accessible, but you certainly don't want to crash a $750 drone! The QAV-CINE Freybott is a compact, lightweight cinematic FPV drone that can take a hit and keep going. It's a lot safer to fly indoors and around people. With a naked GoPro or the SMO 4k you can capture some great stabilized footage. In this guide I'll show you..
Read more
I'm using an even cheaper silverware fc I found on xt-xinte. I didn't know if I should order it bc it was only 5$ and how the heck but it works perfect 👌
Yeah, its really great to be able to build a whoop that flies like this for about that same cost as a quality FC for a larger quad. For me, it wasn't until I flashed the newest NFE silverware that the betalite board came to life!
uess I'll have to flash it too. Running stock everything
