4S-3" MiO1406_FS 3600KV (2021-2024)

By scirocco on Aug 01, 2021

6  125  0

4S-3" 1406 with Seastar 138mm Carbon Fiber with own hand made top plate!
4S-3" D1306B with Seastar 138mm Carbon Fiber with own hand made top plate!

Frame:
Seastar 138mm Carbon Fiber (31g)
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S

Motor:
new: MiToot R1406 3600KV (12g)
old: Dongxingwei D1306B 3100KV (11,3g)

Camera:
RunCam Micro Swift 2
Foxeer Razer Nano

VTX: Eachine VTX02 200mW
Receiver: XM+

Propeller?
the best!
100% right and fit: HQ Drable Prop 3x4x3 (1,5gramm and center is 5mm thick)

maybe?
DALPROP CYCLONE T3056C 3blade
KK 3050 3blade
Gemfan 3030 2blade
Gemfan 3035 3blade
Racerstar Tornado 3040 3blade
Gemfan Flash 3052 3blade
iFlight Nazgul T3061 3blade

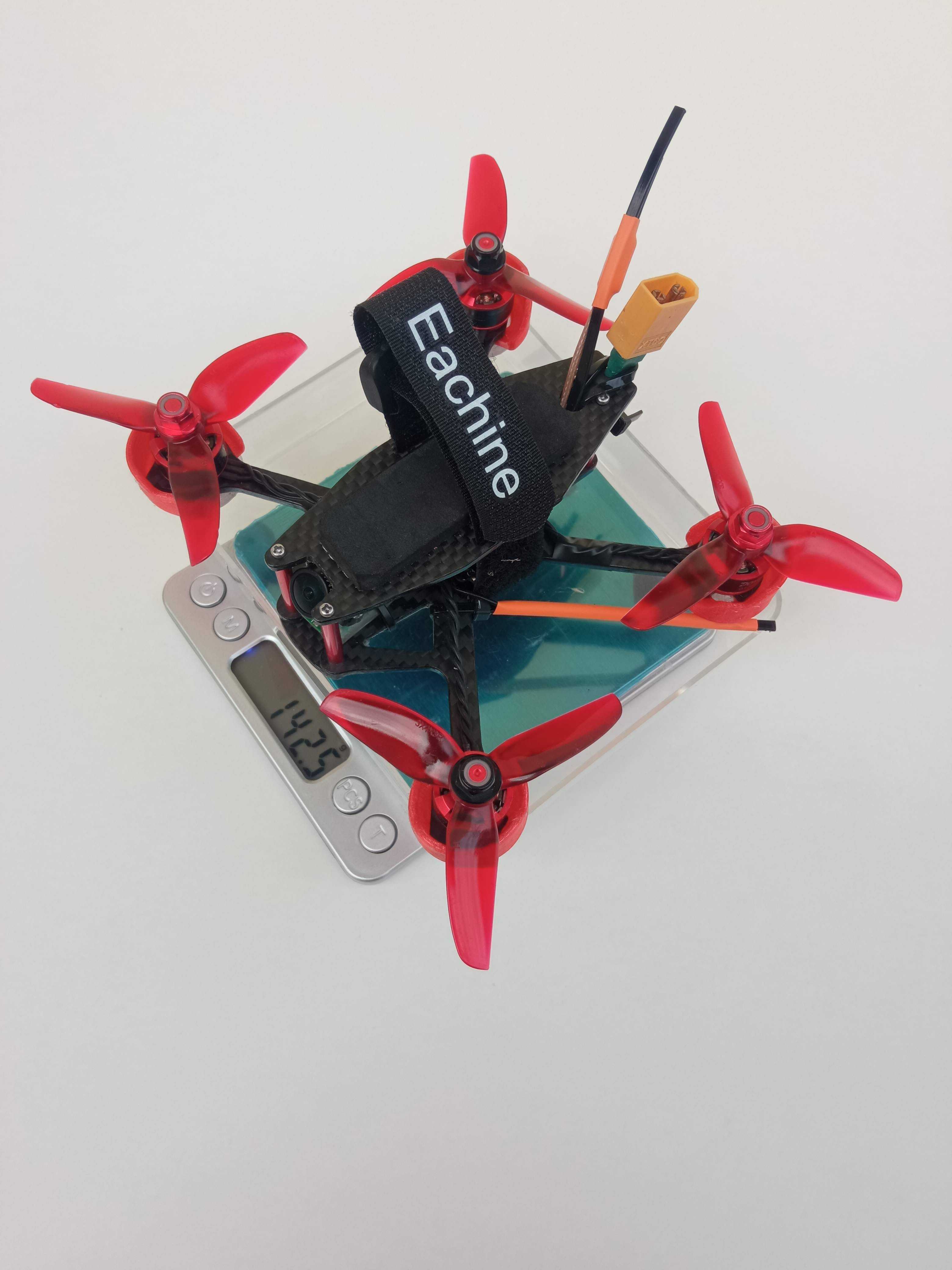

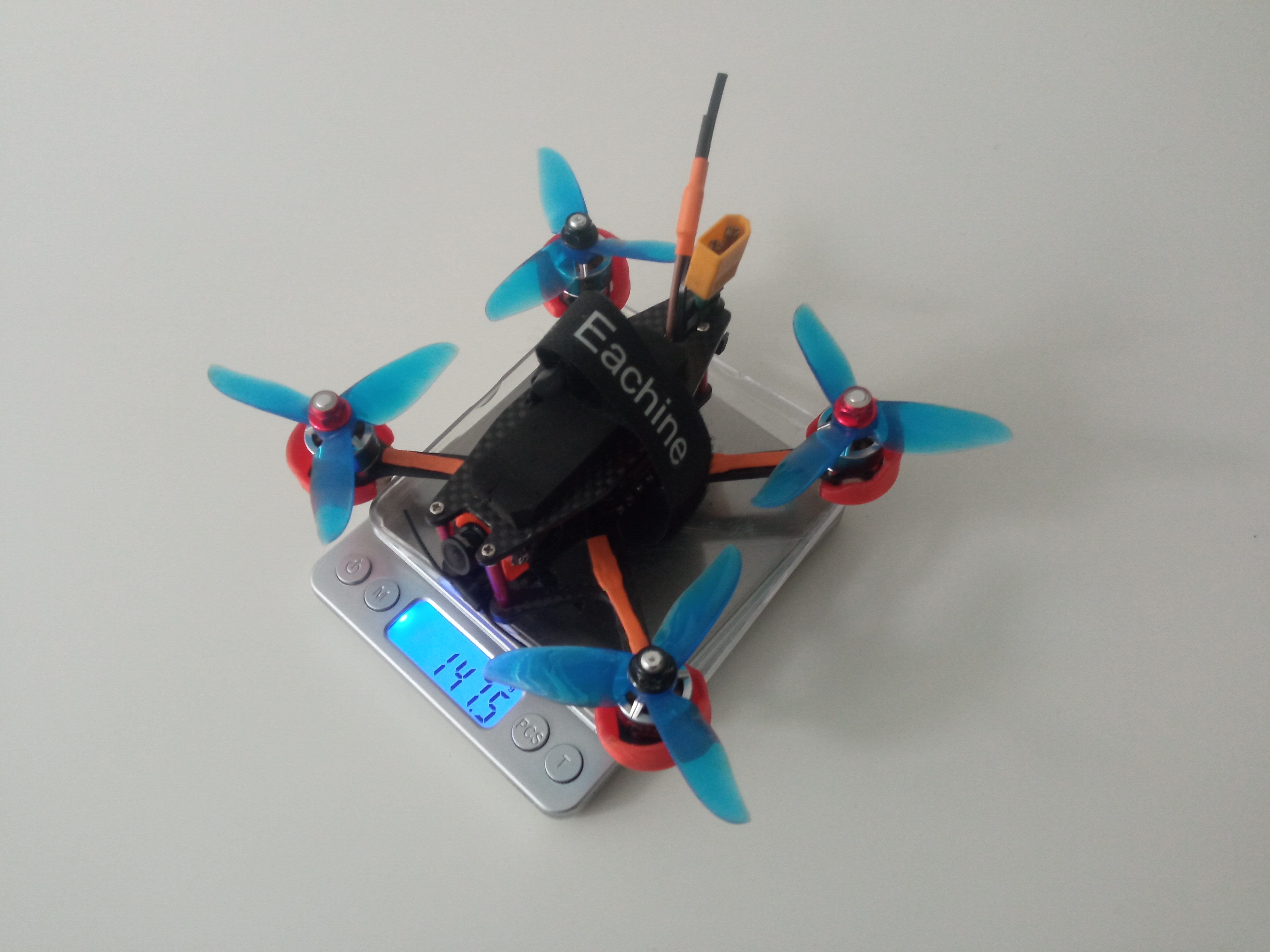

Weight: 142/148g

Battery:
Turnigy Bolt HV 3S 850mah (80g)
Turnigy Bolt HV 4S 850mah (102g)
Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 222-268g
Fly time: 5minutes+

Photos

Part List

Frame

 FEICHAO Seastar 138mm 30g Mini DIY RC Drone FPV Frame with Camera Protective Case for 3 inch propeller 1104-1506 Motor 20-30A ES
Xt-xinte.com
 $8.99

Flight Controller

 Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
 $32.99

ESCs

 20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
 $35.99

Motors

 4 x Brushless Motor Rc 1406 (2 builds)
Aliexpress.com
 $39.96

Motors

 High Quality D 1306 3100kv Brushless Motor For Multicopter 2cw &2 Ccw 1306 3100kv,better Than Other Brands - Parts & Accs - AliE (2 builds)
Aliexpress.com
 $37.23

Propellers

 HQ Durable Prop 3X4X3 (2CW+2CCW)-Polikarbonát - Fekete (2 builds)
Fpvgarage.eu
 $990.00

Propellers

 12Pair Upgraded DALPROP CYCLONE 3 Inch T3056C Pro 3056 3 blade Propeller CW CCW for RC Drone FPV Racing (3 builds)
Aliexpress.com
 $7.99

FPV Camera

 Foxeer Razer Nano HD 1.8mm M8 1200TVL PAL NTSC 4:3 16:9 FPV Camera Low Latency 4.5 7V For RC FPV Racing Drone
Fr.aliexpress.com
 $21.46

FPV Camera

 Runcam Nano 2 1/3 "700TVL 1.8Mm/2.1Mm Pal/Ntsc Fov 155/170 Graden Cmos Fpv Camera voor Fpv Rc Drone (2 builds)
Nl.aliexpress.com
 $20.82

FPV Transmitter

 Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
 $14.99

Receiver

 FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
 $19.99

Batteries

 Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (10 builds)
Hobbyking.com
 $18.44

Batteries

 Turnigy Bolt 850mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV)
Hobbyking.com
 $18.41

Batteries

 Turnigy Bolt 850mAh 3S 11.4V 65~130C High Voltage Lipoly Pack (LiHV)
Hobbyking.com
 $13.05
Show stores (7)
Like Copy Part List Follow scirocco
