6s Reverb

By AvgJ on Sep 17, 2025

1  0  0

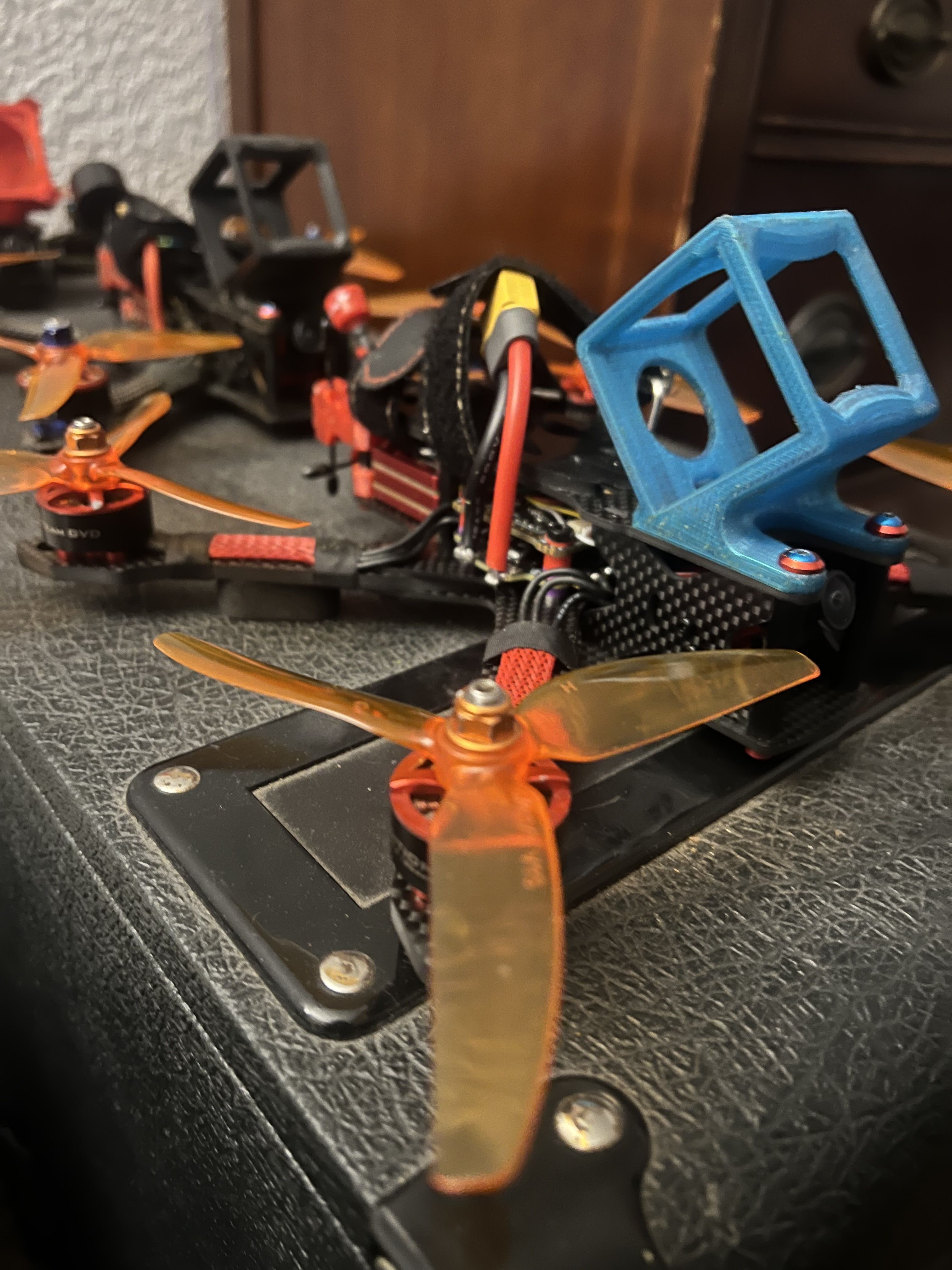

Most recent build. still rocking the old reverb frame on 2 of my quads. moved to hdzero on almost all of my 5inch quads. For freestyle the latency is just much better feels like super analog. The motors are a but old i took out of an old race quad thay were fairly new. they are goodventuredrones when i used to fly for them but are basically brotherhobby speedshield 2207.5 1860kv motors. Flys great, still not in love with betaflight feeling and may be switching this over to kiss ultra.

Part List

Frame

ImpulseRC REVERB 5" Frame (3 builds)
Pyrodrone.com
$82.35

Flight Controller

Skystars F7HD Pro4 Flight Controller - 30x30mm
Pyrodrone.com
$61.99

ESCs

Skystars RC KO60 60A 3-6S Blheli_32 128K Dshot1200 4-in-1 ESC - 30x30mm
Pyrodrone.com
$70.99

Propellers

HQ Freestyle Prop 5X4.3X3V2S (2CW+2CCW)-Poly Carbonate (12 builds)
Hqprop.com
$2.99

FPV Camera

HDZero Nano 90
Hdzero.us
$74.99

FPV Transmitter

HDZero Freestyle V2 Kit
Hdzero.us
$169.99

Antenna

RUSHFPV Cherry2 Antenna II 5.8G (LHCP/RHCP PC) (3 builds)
Rushfpv.net
$12.50

Receiver

RP4TD ExpressLRS 2.4GHz True Diversity Receiver (2 builds)
Radiomasterrc.com
See Site

Batteries

HCL-RS 22.2V-1400mAh-FPV Racing Pack
Smc-racing.com
See Site

Radio

FrSky Taranis X9D Plus Transmitter - Black Customized Special Edition - w/ M9 Gimbals (5 builds)
Getfpv.com
See Site

Goggles

HDZero Goggle 2 (2 builds)
Hdzero.us
$749.99

HD Camera

GoPro HERO5 Session 4K HD Action Camera Black 818279018172| eBay
Ebay.com
See Site

Radio Module

Ranger Micro 2.4GHZ ELRS Module
Radiomasterrc.com
See Site

Battery Charger

ISDT Q8 Charger - BattGo 500W 20A High Power Battery Balance Drone Cha
Druav.com
$66.57

Soldering Iron

HGLRC Soldering Iron - RC2
Getfpv.com
$61.49
