Nemicopterus 75mm 1s ELRS

By SeveSch FPV on Nov 11, 2022

7  303  4

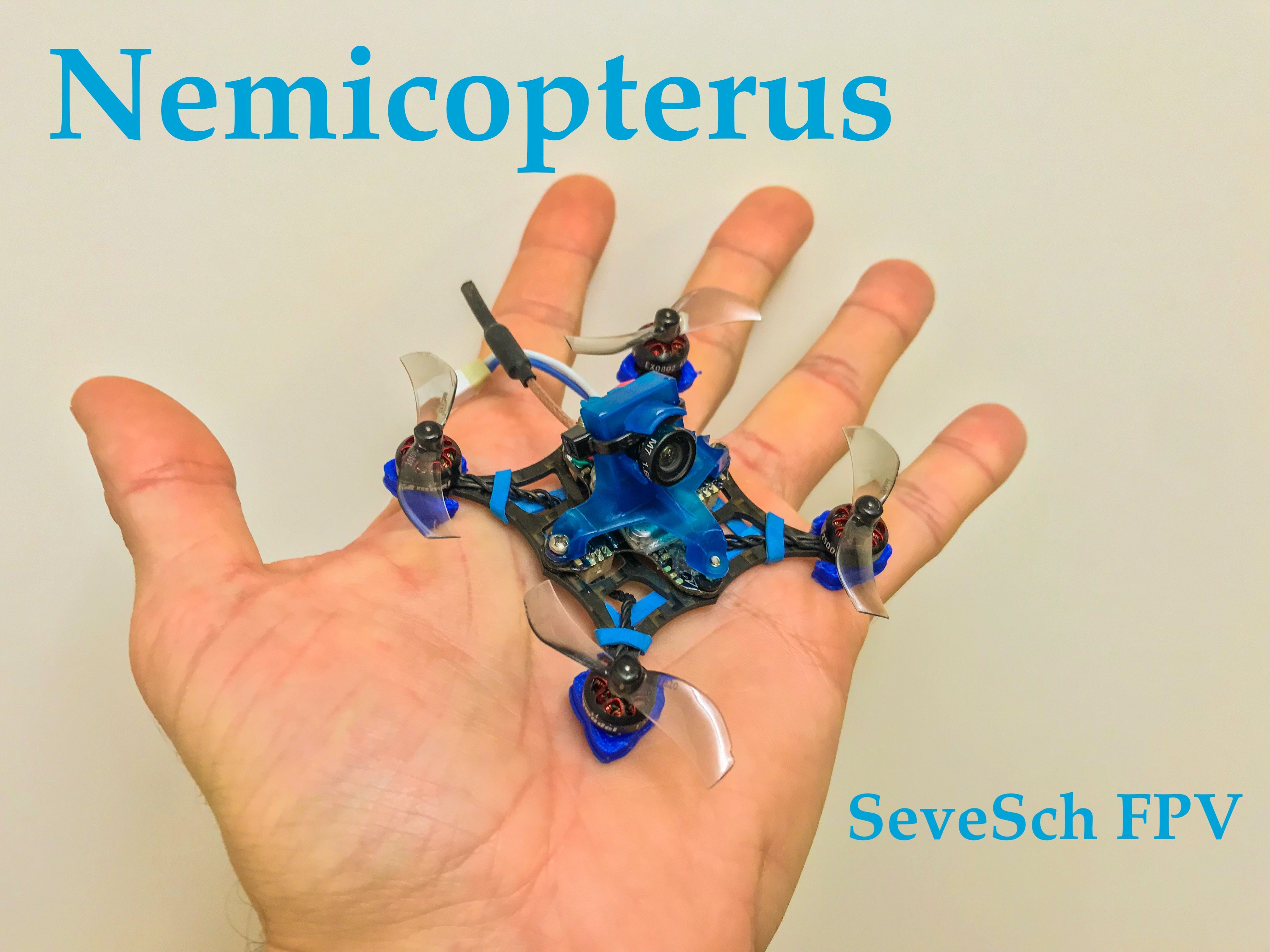

Nemicopterus 75mm Frame
Named from Nemicolopterus is a genus of tapejaromorph pterosaur, based on a very small specimen described as the smallest known "adult" pterosaur to date. It lived in the Jehol Biota 120 million years ago.

Frame: Nemicopterus 75mm, 2mm thick CFK, by SeveSch FPV (PM me for availability)
AIO: F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)
Motors: Happymodel SE0802 25000KV
Props: Gemfan 1610, 40mm
Battery: GNB 1S 660mAh 90c/180c
Camera: Foxeer Pico Razer
Canopy: NewBeeDrone BeeBrain V2
VTX: Eachine NANO V2 5.8GHz up to 400mW

Alt Tag

Alt TagI have designed this frame that is as light as possible and very durable.
The width under the quad is chosen so that a TBS Crossfire Nano fits inside.

Alt TagThe Nemicopterus 75mm Frame fit different motor screw patterns of the FC

Alt TagAfter some crashes I decided to solder the motor cables directly to the AIO

Alt TagRemoving the connectors reduces the weight by 0.8g

Alt Tag

Alt TagSome components of the quad have been broken, but the frame was never damaged

Alt TagI have secured the ELRS ceramic antenna with adhesive

Alt TagTPU print for arm protection

Alt TagThe electronics is protected against water with waterproof coating
