Cheerson "Phoenix" F330
By fradioflyer on Jul 22, 2015
Rising from the proverbial ashes of a crashed CX-20, I transferred the internal components over to a DJI F330 frame kit. Before the crash, I had replaced the FC with a full APM kit much like the one linked here. If you want to replicate this build, there's no reason to buy and crash the CX-20 first... just buy some motors and 18-amp ESCs. ;-)
Part List
Frame |
F330 Quadcopter Multicopter Frame Kit PCB Frame Board DJI - Red & White Arms
Ebay.com
|
$14.99 |
Batteries |
BlackMagic 3S 25C 3000mAh 11.1V Battery For DJI PHANTOM CX-20 Quanum Nova
(2 builds)
Banggood.com
|
$26.99 |
Batteries |
GForce 30C 2700mAh 3S 11.1V LiPO for DJI Phantom (XT60)
Valuehobby.com
|
$16.99 |
Goggles |
BW HD BW7MY 7-inch Car Rear View LCD Monitor supporting High Resolution 800 x 480 Pixels with Stand, Remote, Rotating Screen and
Amazon.com
|
$29.96 |
HD Camera |
YI 88001 16MP Action Camera with High-Resolution WiFi and Bluetooth, Black
(2 builds)
Amazon.com
|
$69.99 |
HD Camera |
Sony Alpha a6000 Mirrorless Digital Camera 24.3 MP SLR Camera with 3.0-Inch LCD - Body Only (Black)
Amazon.com
|
$448.00 |
HD Camera |
New Sigma 19 mm F2.8 Art DN For Sony Lens Black E-Mount Made in Japan a1
Ebay.com
|
$166.66 |

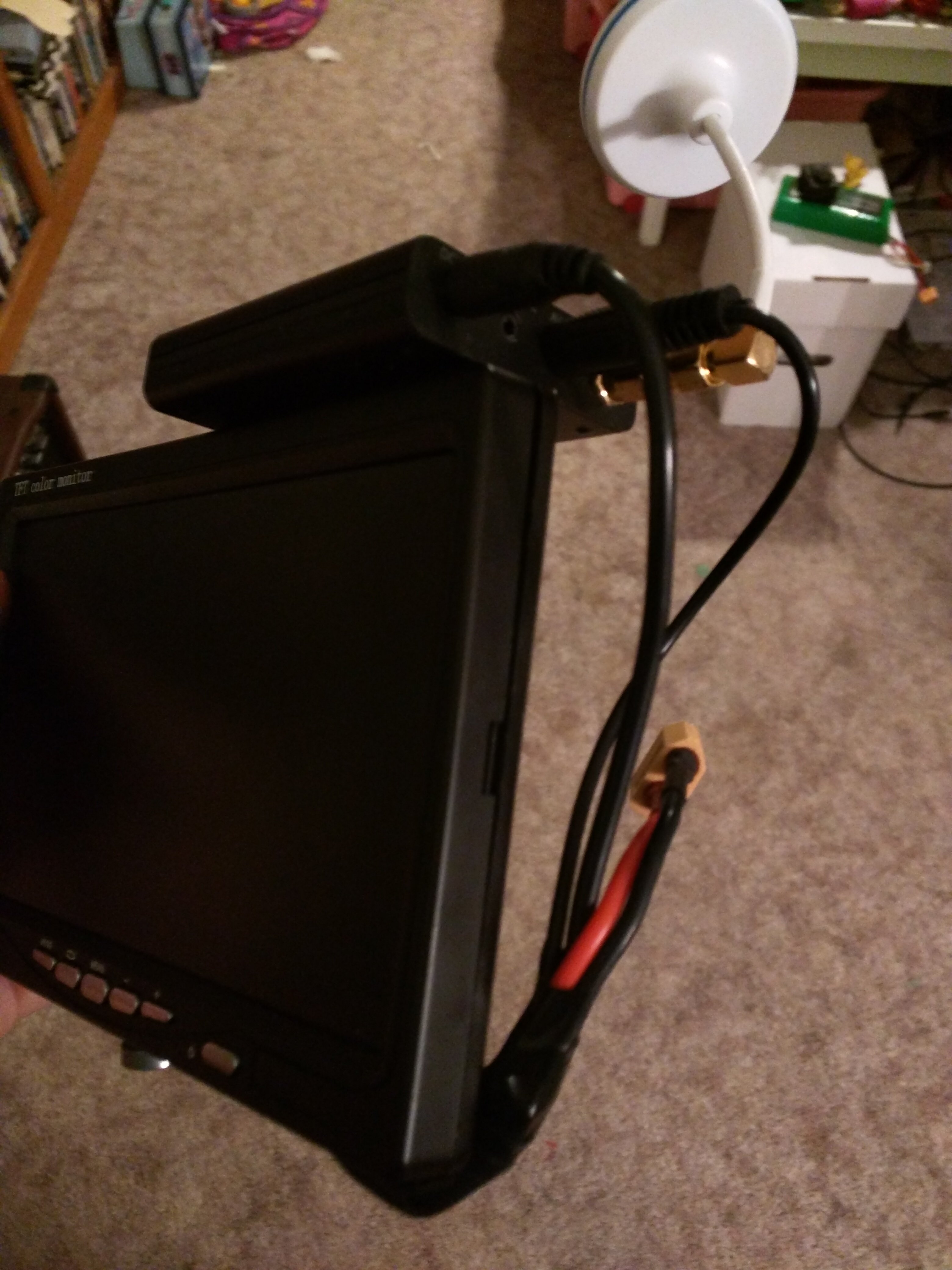

I cleaned up the wiring of my FPV monitor, eliminating the clunky power plugs and RCA Connections. Once I removed the back cover of the monitor it was pretty simple... Red to red, yellow to yellow, etc.
I probably could do the same with the vrx and eliminate those plugs, too...
That is TRULY a cram! Good job!!!
Were did you get that battery strap?
How did you mount the FPV cam?
Hey I've got that Gforce as well. How does the Blackmagic compare? I'm not all that happy with the Gforce as it seems to have lost some of its capacity over time.
I like the BlackMagic. Depending on how aggressive I'm flying, I can get up to 1:30 more time from it compared to the GForce. These batteries spend a lot of time at just a storage charge since I'm only flying this model once or twice a month, since early May, so I can't guage whether they've lost capacity.
I don't know why that LCD monitor link resolves to $75.91. It's only $24.98.
Just came in here to see the updated price and I notice the item is not on my list any longer... the CX-20 is not there, the LCD monitor is gone, too. ??
Edit: I re-added the missing parts. But I'll say I also "lost" an Amazon part on my other build (I fixed that, too) but I wondered if there was some consequence to you fixing the Amazon prices.
