6S sub 250 Part 2 DJI 04 Pro Edition

By Jeremy257 on Apr 20, 2025

1  0  0

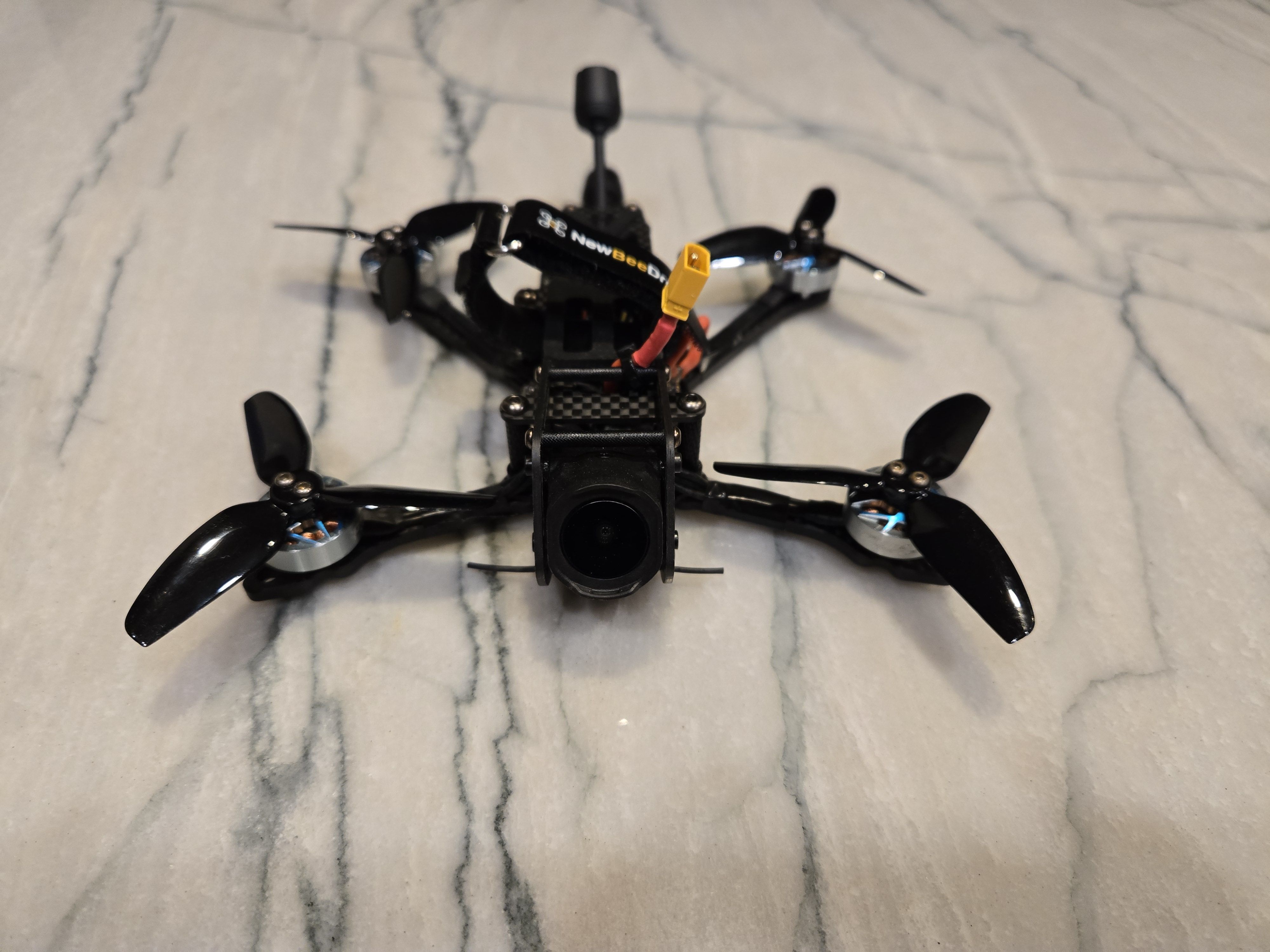

3" wonder. I just flew the first 8 packs today. Really impressed. It definitely feels closer to my 5" build than my 3.5" build did. Really feels very much like a snarky 5" freestyle drone. Disk Loading is the key. AUW of 234 grams. Really impressed with the power to weight, speed and performance. Betaflight 4.5 (UAV Tech 2-4" preset, I had to back the master multiplier down from 1.5 to 1.4). BlueJay v21 Official 48khz.

Photos

Part List

Frame

NewBeeDrone StingerBee HD O4 Pro 3” Frame Kit
Newbeedrone.com
$49.99

Flight Controller

SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller (5 builds)
Speedybee.com
$115.99

Motors

4 x T-Motor P1604 FPV Drone Motor - 2850KVDefault Title (3 builds)
Pyrodrone.com
$95.96

Propellers

HQProp DP T3x3x3 PC Propeller - 3 Blade (Black- Set of 4) - 1.5mm (2 builds)
Getfpv.com
See Site

FPV Transmitter

DJI O4 Air Unit Pro For DJI HD Video System
Rotorriot.com
$229.00

Receiver

Happymodel ExpressLRS 2.4GHz EP1 Nano Receiver
Defiancerc.com
$13.50

Batteries

GNB 530mAh HV 6S 90C LiPo XT30 - HV4.35 (2 builds)
Rotorvillage.ca
$29.99

Goggles

DJI Goggles 3
Getfpv.com
See Site
Show stores (7)
