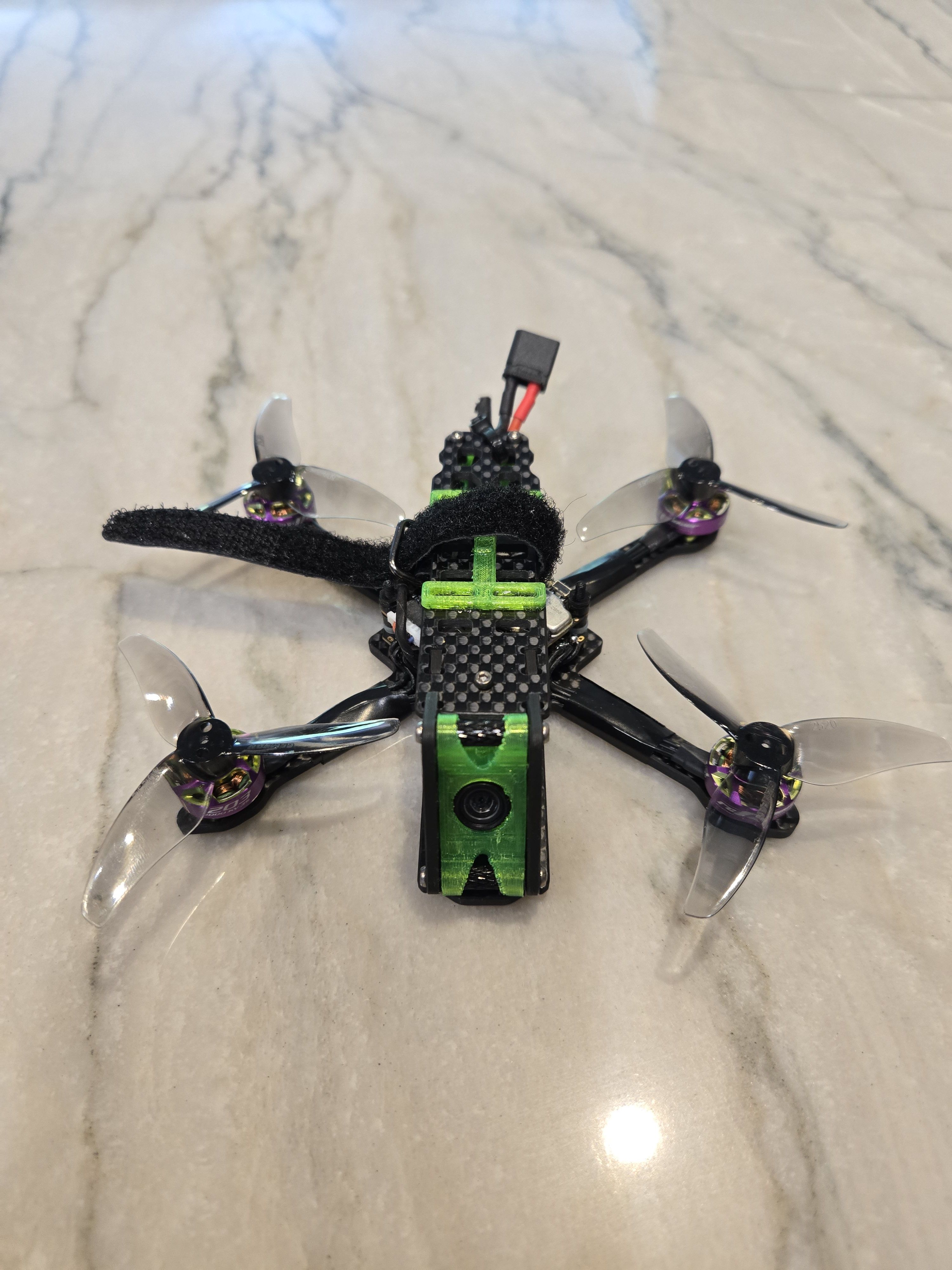

This is my new Jeno Pocket. I got the frame and TPU files from the We are FPV gethub. There is a great amount of information there for you. CNC Drones cut the carbon fiber and Brain3D printed the TPU, I highly recommend both of these companies. It is perfect for a large yard or a playground area. It is set up so it can run on 2S or 3S. The motors can currently only be sourced from AliExpress, RCinPower 1203 8000kv. It weighs 70.4g dry. The Stack Screws are nylon and every other screw is titanium.
The BetaFPV AIO I mounted "upside down" to enable me to have the motor pads and DJI connector on top. The USB connector port now is on the bottom and is easily accessed while the drone is fully assembled by inserting it underneath the antenna mount tpu and pressing it in with a small flat head from the side. This AIO and the BetaFPV Matrix 3in1 AIO both come with a smaller DJI connector than the one that comes with it. They are .3 grams lighter, definitely use that one.
I am utilizing the Betaflight rates that are on the We are FPV gethub and they are working great. I am using the bluejay (v19) that came installed on the AIO as the newest version is said to create some issues with this AIO.
They recommend the Dogcom batteries 2S 560mah 150C battery and I can attest to the fact that it goes hard. I fly it extremely aggressively with the camera at the full 35 degrees of tilt, performing constant acrobatics and I get over 4 minutes of flight time in warm temperature. I also use GNB 2S 530mah 90C batteries. The flight time is comparable but it doesn't have quite the punch of the Dogcom. The 5g weight loss of the GNB improves precision so I'm not certain which battery I prefer.
If you want a truly great performing freestyle micro that was designed for the 04 air unit, this is it. The Camera mount was designed for the 04 to eliminate jello and is adjustable 20-35 degrees. The folks at We are FPV put a lot of maths in on this.
Frame |
GitHub - WE-are-FPV/JeNo-Pocket: 2.5" drone FPV frame compatible with Air Unit O4 Lite (or any Nano camera) and designed for Fre
Github.com
|
See Site |
Flight Controller |
F4 2-3S 20A AIO FC V1
(4 builds)
Betafpv.com
|
$54.99 |
Motors |
4 x
Aliexpress.us
|
See Site |
Propellers |
Gemfan Hurricane 2520-3 Durable Tri-Blade 2.5" Prop 8 Pack (1.5mm Shaf
Racedayquads.com
|
$4.49 |
FPV Transmitter |
DJI O4 Air Unit
(3 builds)
Getfpv.com
|
See Site |
Batteries |
DOGCOM 560mAh 2S 150C 7.4V LiPo Battery XT30 [DG]
Fpvfaster.com.au
|
See Site |
3D Printed |
GitHub - WE-are-FPV/JeNo-Pocket: 2.5" drone FPV frame compatible with Air Unit O4 Lite (or any Nano camera) and designed for Fre
Github.com
|
See Site |
