I built my last 3" 04 Pro on one of the first 3" 04 Pro frames I could find available. And while it was ok, the camera protection was not very good and it was a really a deadcat frame. I really like my JeNo Pocket and so I updated my 3" with the JeNo 3" frame which now supports the DJI 04 Pro. The result quite honestly is shocking. It flies infinitely better, seriously. Not meant to be a knock on NewBeeDrone, I think the Stingerbee frame was meant to be more of a cruiser. These JeNO frames have a lot of effort put into them and, like my JeNo pocket, if you utilize the build and tuning recommendations that you find through the We are FPV gethub, your quad will fly pretty awesome. Same components as my previous sub250 build.
All the frame info, carbon fiber files and tpu files can be found on the gethub We are FPV Jeno 3 site. These guys are awesome.

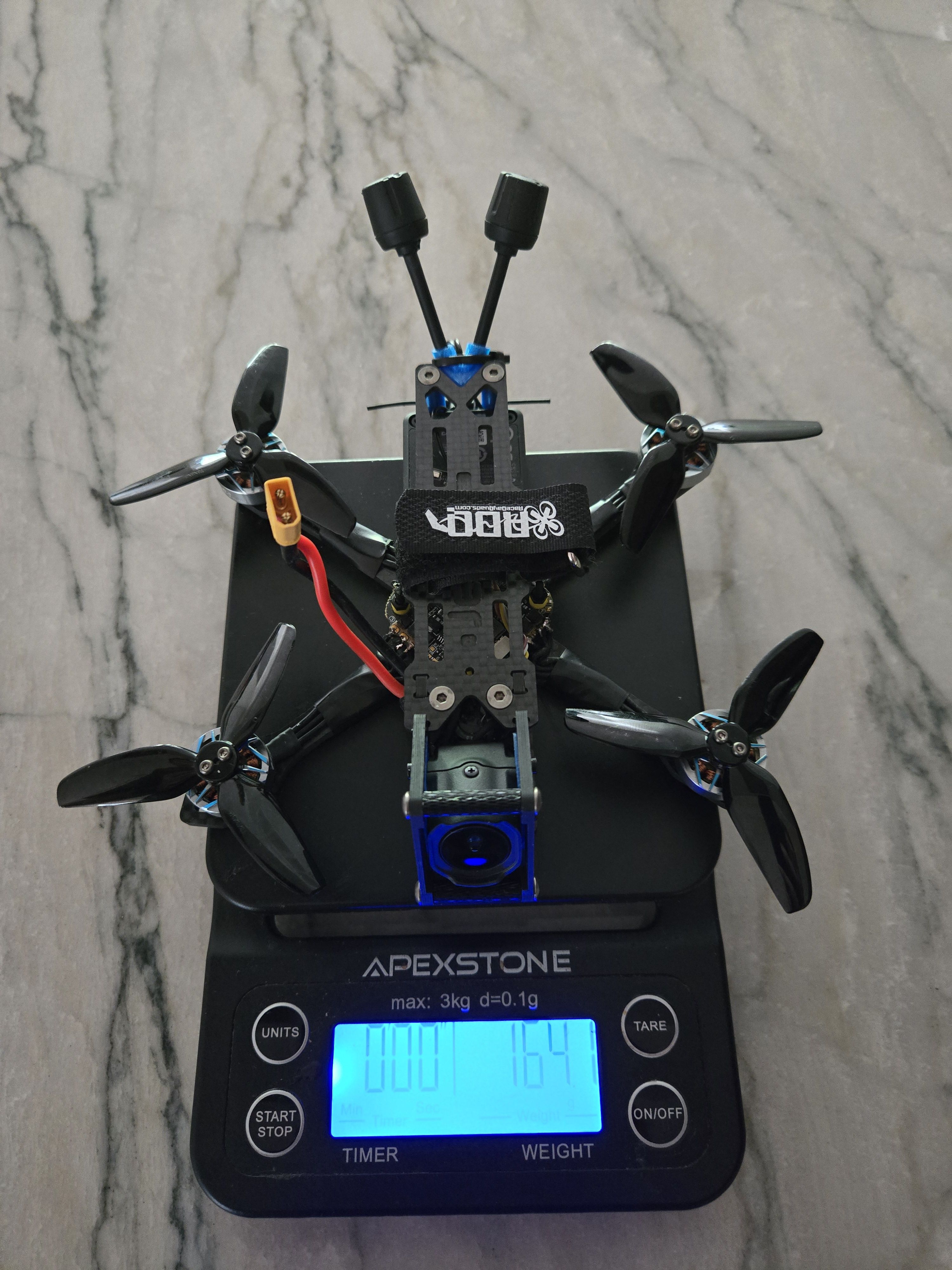

In the near future I will most likely make a few changes to further reduce the weight (Currently at 164g dry), Kakute AIO, Naked 04. That will allow me to swap out to a different battery while keeping my AUW as close to my 232g AUW target as possible. The GNB 6S 530 90C is a solid, lightweight battery. I can fly very aggressively and get over 4 minutes out of it however I am certain that one of the new 6S 22.2v 450 or 550 Dogcoms they have released would give me more punch and more consistant voltage throughout the pack.
Frame |
JeNo 3" M3 v1.2.1
Cncdrones.com
|
$35.00 |
Flight Controller |
SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller
(6 builds)
Speedybee.com
|
$115.99 |
Motors |
4 x T-Motor P1604 FPV Drone Motor - 2850KVDefault Title
(4 builds)
Pyrodrone.com
|
$95.96 |
Propellers |
HQProp DP T3x3x3 PC Propeller - 3 Blade (Black- Set of 4) - 1.5mm
(3 builds)
Getfpv.com
|
See Site |
FPV Transmitter |
DJI O4 Air Unit Pro - Digital Transmission System
Dronenerds.com
|
$229.00 |
Receiver |
HappyModel 2.4GHz EP1 RX Express LRS Receiver - For At RaceDayQuads
(107 builds)
Racedayquads.com
|
$20.49 |
Batteries |
GNB 530mAh 6S HV 90C LiPo XT30
(3 builds)
Rotorvillage.ca
|
$29.99 |
3D Printed |
JeNo-3-3.5/02-TPU at main · WE-are-FPV/JeNo-3-3.5
Github.com
|
See Site |
