3S-2" X2 Elf88 (2018-2024)

By scirocco on May 17, 2021

8  317  5

3S-2" X2 ELF88

Elf88 has many different version with motors propellers cameras FCs etc..

Frame: X2 ELF 88mm Carbon Fiber

FC+ESC:
Emax magnum F3 2-4S 13-15A
Super_S Flytower Omnibus F3
JHEMCU GHF13 AIO F4

Motor:
DYS 1102/10000KV (3,8g)
Eachine 1104/8600KV (5g)
Eachine 1102/11500KV (5,1g)
Full Speed 1104/7500KV (5,1g)
Full Speed 1104/6800KV (5,3g)

Propeller:
Emax Avan 2019 3blade (the best 1,1g)
maybe?
GEMFAN D51 2020 4blade 0,9g
HQ Prop T2X2X4 2020 4blade 0,8g
Gemfan Hurricane 2023 3blade 0,9g
DAL PROP CYCLONE Q2035C 4blade 0,85g

Camera: Caddx EOS2
VTX: Eachine VTX02 200mW
Receiver: XM+

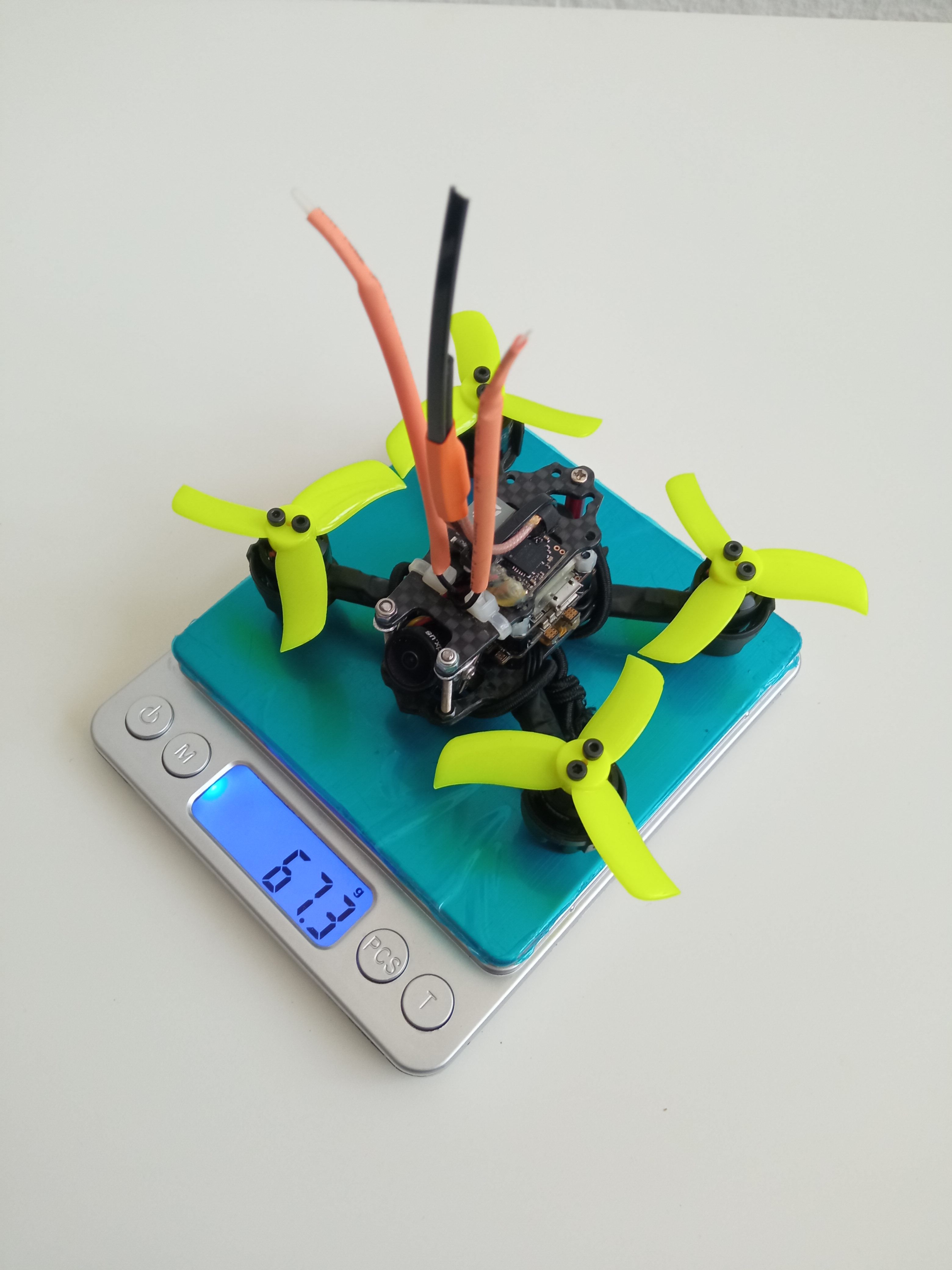

Weight. 56g-69g

Battery:
GNB 3S 450mah (47g)
Turnigy Nano-Tech Plus 3S 450mah (39g)

Summ weight: around 95-116g
Fly time: 4-5minutes

Photos

Part List

Frame

X2 ELF 88mm Wheelbase 3K Carbon Fiber 2 Inch Micro Frame Kit Support 16x16mm 20x20mm Stack for RC Drone FPV Racing (3 builds)
Banggood.com
$13.99

Flight Controller

Emax F3 Magnum Mini Tower Systeem Bullet 12A 4 In 1 Esc En F3 Vlucht Controller (9 builds)
Nl.aliexpress.com
$70.78

Flight Controller

16x16mm JHEMCU GHF13 AIO F4 OSD Flight Controller Built-in 13A Blheli_S 2-4S 4 In 1 Brushless ESC for RC Drone FPV Racing (7 builds)
Banggood.com
$44.99

Motors

4 x FSD 1104 7500KV Brushless Motor (8 builds)
Fullspeedrc.com
$39.96

Motors

4 x DYS BE1102 10000KV Micro Brushless Motor
Getfpv.com
$35.96

Motors

4 x Eachine Tyro69 Onderdeel 1104 8600KV 2 3S Borstelloze Motor voor RC Drone FPV Racing MultiRotor Onderdeel accessoires (5 builds)
Nl.aliexpress.com
$110.24

Motors

4 x Generic Upgrade SZ-Speed 1104C1 1104 6800KV 2-3S Brushless Motor For RC Drone FPV Racing - (4 builds)
Yaoota.com
See Site

Propellers

Dalprop Cycloon Q2035C Pro 2X3.5X4 4 Blade Pure Pc Propeller Voor Rc Fpv Racing Freestyle 2Inch Cinewhoop Drones 1102 1103 1104
Nl.aliexpress.com
$9.91

Propellers

4Pairs Gemfan D51 51Mm 2020 2X2X4 4 Blade Pc Propeller 1.5Mm Voor Rc Fpv Racing Freestyle 2Inch Cinewhoop Ducted Drones Diy Onde
Nl.aliexpress.com
$3.38

Propellers

Hqprop T2X2X4 2020 4 Blade Pc Propeller Voor Rc Fpv Racing Freestyle 2Inch Cinewhoop Drones Diy Onderdelen
Nl.aliexpress.com
$3.28

Propellers

GEMFAN Gemfan Hurricane 2023 2x2.3 2 Inch 3-Blade Propeller 3 Holes for 1105-1108 Motor RC Drone FPV Racing Toothpick (9 builds)
Xt-xinte.com
$3.03

Propellers

4Pairs Gemfan 2040 2.0X4.0 Pc 3 Blade Propeller 2 Inch Prop 3 Gat Blades Voor 1103 1104 Motor Voor Rc Racer Racer Quadcopter
Nl.aliexpress.com
$3.00

Propellers

4Pcs/2Pairs Gloednieuwe Emax Avan Blur 2 Inch Propeller 3 Blade 2CW En 2CCW Mini props Voor Rc Fpv Multicopter Racing Drones Toe (4 builds)
Nl.aliexpress.com
$2.07

FPV Camera

Runcam Nano 4 800TVL 1/3 "Cmos 2.1Mm Fov 155 Graden Micro Fpv Camera 14X14Mm Voor rc Fpv Racing Freestyle Tinywhoop Micro Drones (5 builds)
Nl.aliexpress.com
$19.88

FPV Camera

14X14Mm Caddx Turbo EOS2 V2 1200TVL 1/3 "Cmos Sensor 2.1Mm Lens Global Wdr Fpv Mini camera Voor Rc Fpv Racing Micro Whoop Drones (9 builds)
Nl.aliexpress.com
$16.12

FPV Camera

Nl.aliexpress.com (3 builds)
Nl.aliexpress.com
See Site

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

Gaoneng – batterie Lipo GNB 520mAh 3S 11.4V 80C/160C HV avec prise XT30 pour Drone Betafpv Beta85X Whoop FPV d'intérieur, pià (11 builds)
Fr.aliexpress.com
$20.43

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

3D Printed

Caddx Turbo EOS2 FPV Camera Mount for X2-ELF Frame Kit by sys_er26 (2 builds)
Thingiverse.com
See Site

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (10)

Discussion

Sign in to comment

Polymerization   May 19, 2021

Man, I remember when the first Leader came out and everyone was talking about it. What an awesome build, I love the RCINPOWER motors. They look so good in pink and blue.

Show 1 more comment
Polymerization   May 19, 2021
1

haha sometimes they weight the motors with the motor wires cut off so maybe 6.5g is with a shorter motor wire? they could be lying too because I don't think motor wires so that heavy. I have a set of 1104/7500Kv motors too but mine are not really rated for 3s 3" :( glad it works well for you though! 2" with 4s sounds like a lot of fun, big power in a small quad!

scirocco   May 19, 2021
1

RACINPOWER I checked it on many places 2years ago.... bcus I felt it was not correct but it is a copy of copy of document/description problem... typical chinese marketing blabla :) Now somewhere it is 6,4g somewhere 8,9g...confusing.. (cable is half gram 8,9vs9,5g)
yea 1104/7500 is good for 2" or 2,5" and not the best for 3"... 1204 iflight/hobbymodel 5-6g are more better for 4S 5000KV for 3S 6000KV plus new developed propeller (for toothpick) Hurrican 3018 HQ 3015/3020... light and good balance of prop!
it is only toy and enjoy...build enjoy rebuild enjoy crash.... put it into dustbin :)

Polymerization   May 19, 2021

haha yeah that happens, chinese marketing is like that. this hobby is definitely build enjoy rebuild and crash, it is a lot of fun :)
