4S-3" Emax 1306 4000KV (2019-2025)

By scirocco on May 17, 2021

2  120  0

4S-3" Emax 1306

Frame: AlfaRC SQX135 or JMT SQX135 135mm
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Propeller: Emax Avan 3024 3blade
Camera: Foxeer Monster Micro Pro
VTX: Eachine TX02 200mw
Receiver: XM+

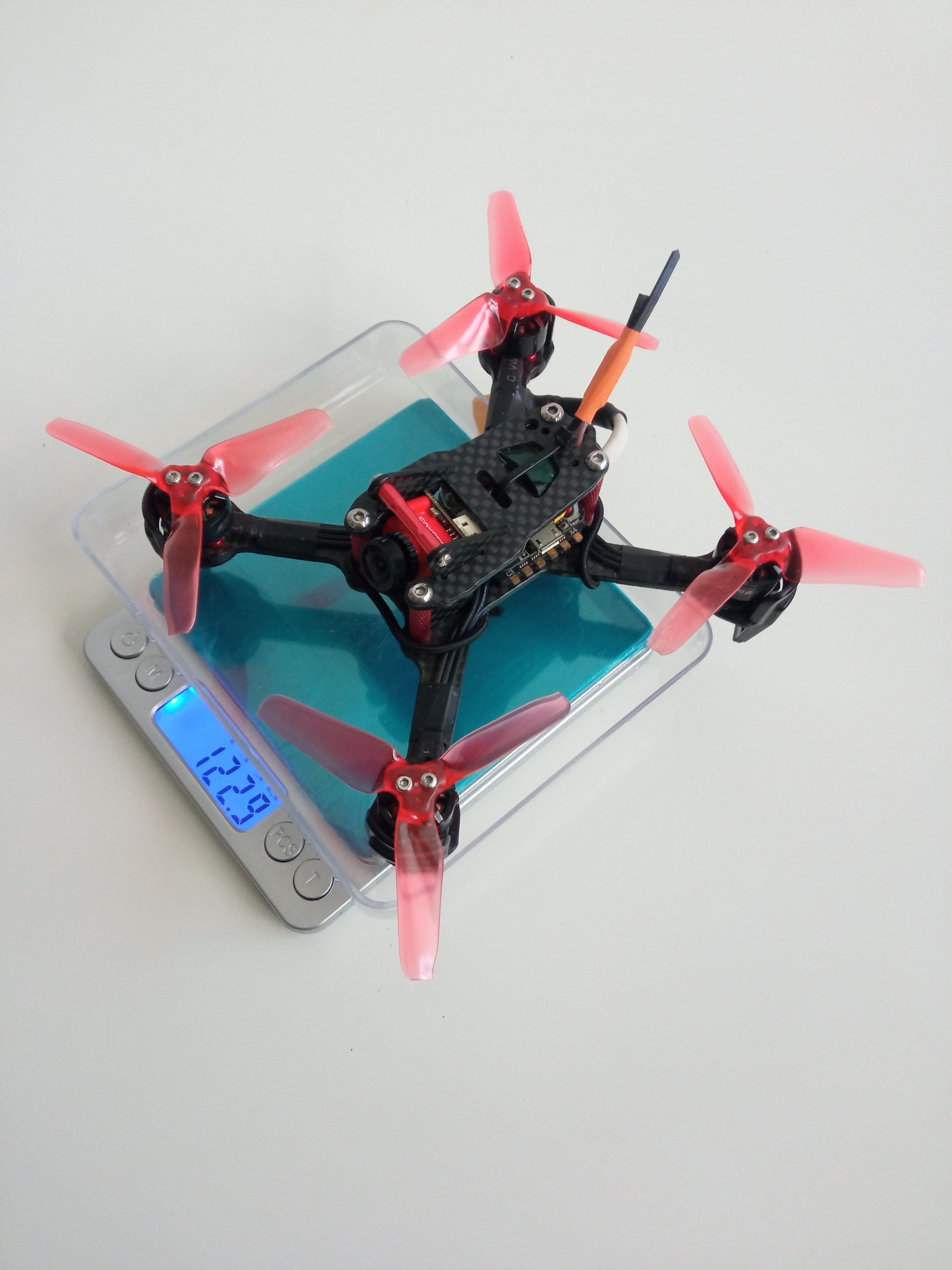

Weight: 127g

Battery: Turnigy Bolt HV 4S 850mah (102g)
Battery: Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 229-239g
Fly time: 5-6minutes+

Video

Photos

Part List

Frame

Jmt SQX135 135Mm Wielbasis Mini Fpv Frame Kit Carbon Fiber Cf Rack Voor Diy Fpv Racing Drone Quadcopter 3 inch Propellers (3 builds)
Nl.aliexpress.com
$13.46

Flight Controller

Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
$32.99

ESCs

20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
$35.99

Motors

4 x EMAX – moteur sans balais RS1306B 1306 V2 2700KV 4000KV 3 4S pour Drones radiocommandés FPV, course Freestyle, cure dents de
Fr.aliexpress.com
$61.40

Propellers

6Pairs EMAX AVAN Mini 3 inch Propeller 3blade Paddle CW CCW voor Voor Babyhawk 3 inch Drone RC accessoires
Nl.aliexpress.com
$4.92

Propellers

2 Pairs Gemfan 3035 3X3.5 BN 3 blade Propeller PC CW CCW 1.5mm Montage Gat voor 1104 1105 Motor (3 builds)
Nl.aliexpress.com
$3.13

FPV Camera

RunCam Micro Swift 2 FPV Camera 2.1mm/2.3mm Lens FOV160w/OSD & Laagspanning Alarm PAL NTSC (5 builds)
Nl.aliexpress.com
$40.76

FPV Camera

Foxeer Monster Micro Pro 1.8mm 16:9 1200TVL PAL/NTSC WDR Low Latency FPV Camera (24 builds)
Banggood.com
$30.99

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (42 builds)
Banggood.com
$19.99

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna PRO Pagoda Long 3dbi (5 builds)
Shop.prodrone.pl
$40.00
