4S-4" RacerStar 2205 3000KV (2020-2025)

By scirocco on May 18, 2021

2  118  0

Frame: ALFA X4 GTR 175mm Carbon Fiber with own handmade top plate! (69g)
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Motor: Racerstar Racing Edition BR2205 3000KV (30g)
Propeller: Gemfan Flash 4052 3blade
Camera: Foxeer Razer Micro
VTX: Eachine TX02 200mw

Receiver:
Until 2023 Xm+
From 2024 ELRS

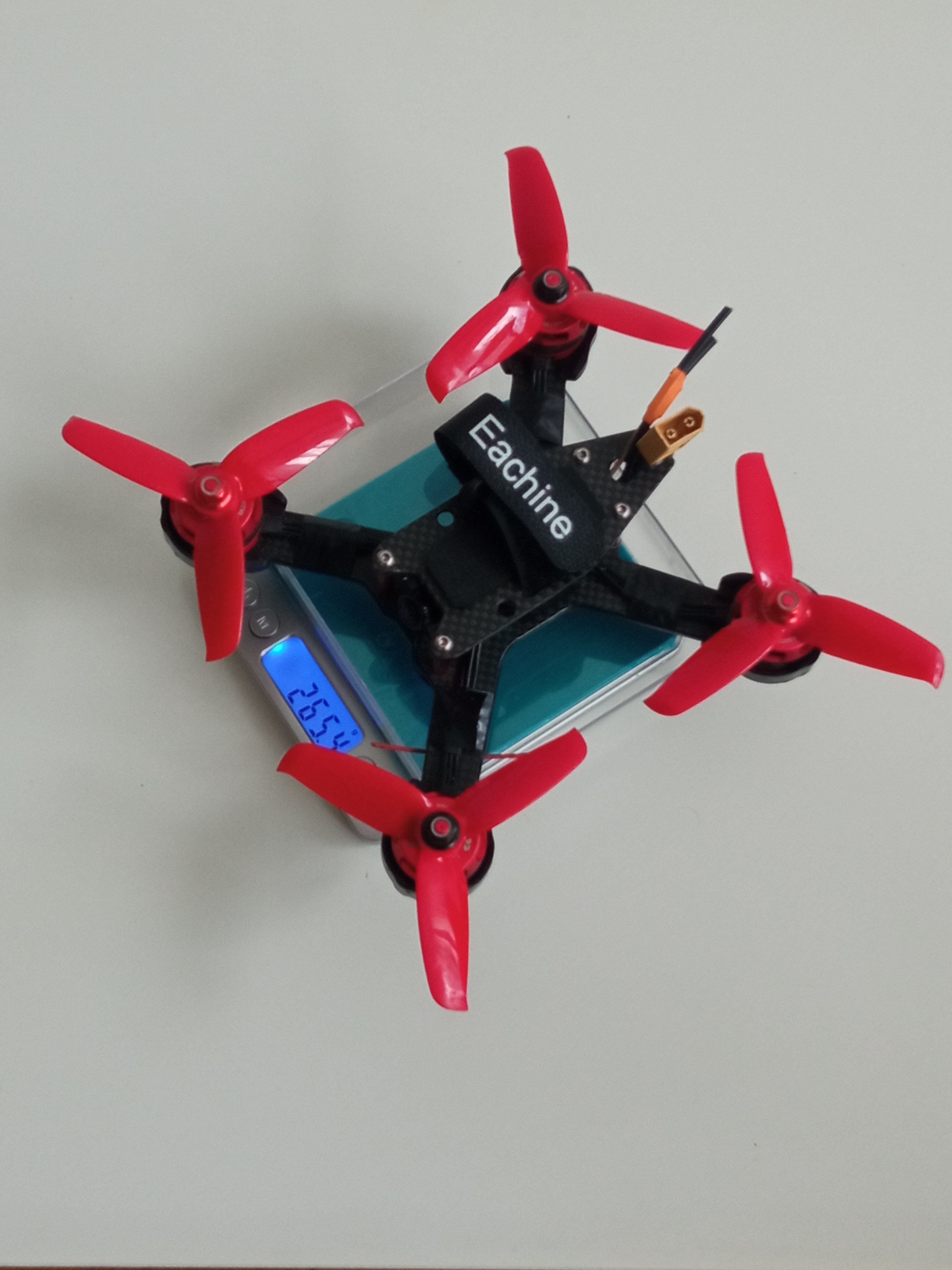

Weight: 266g

Battery: Turnigy Bolt HV 4S 850mah (102g)
Battery: Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 368-387g
Fly time: 4-6minutes

https://www.youtube.com/watch?v=9acabSugXCs&t=29s

Photos

Part List

Frame

ALFA X4/X5-GTR 200mm 175mm Carbon Fiber FPV Racing Freestyle RC Drone True X Frame kit 4mm Bottom Plate
Banggood.com
$26.99

Flight Controller

Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
$32.99

ESCs

20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
$35.99

Motors

4 x Racerstar Racing Edition 2205 BR2205 3000KV 2-4S Brushless Motor For X180 X210 X220 RC Drone FPV Racing
Banggood.com
$55.96

Propellers

Gemfan – hélice PC Flash 4052 3 lames pour RC FPV, course Freestyle 4 pouces, cure dents de remplacement de micro drones à l
Fr.aliexpress.com
$2.68

FPV Camera

Foxeer – caméra Micro 1200TVL FPV, objectif 1.8mm M8 16:9/4:3 PAL/NTSC, CMOS 1/3 commutable avec 4.5 25V pour Drone de course
Fr.aliexpress.com
$24.03

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (42 builds)
Banggood.com
$19.99

Batteries

Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (8 builds)
Hobbyking.com
$13.90

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna PRO Pagoda Long 3dbi (5 builds)
Shop.prodrone.pl
$40.00
