4S-3" Bhobby 1407 4100KV (2021-2025)

By scirocco on Aug 01, 2021

5  164  0

Frame: Martian IV 140mm
FC+ESC: Jhemcu GHF420AIO F4 35A
Motor: Brotherhobby Tornado T1 1407 4100KV (16,1g)
Propeller: Gemfan Flash 3052 3blade
Camera: Caddx ant
VTX: Eachine TX02 200mw

Receiver:
Until 2023 Xm+
From 2024 ELRS

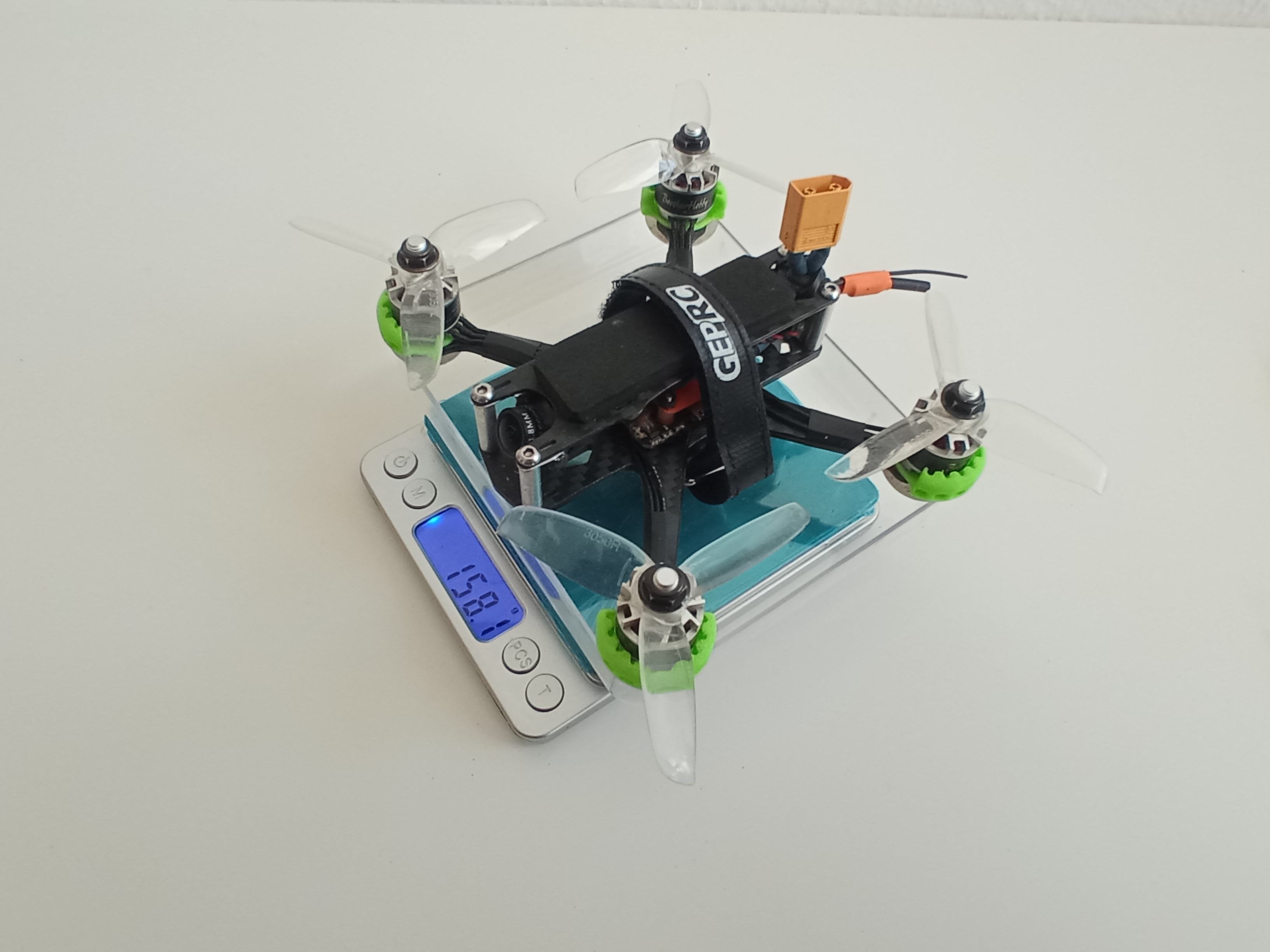

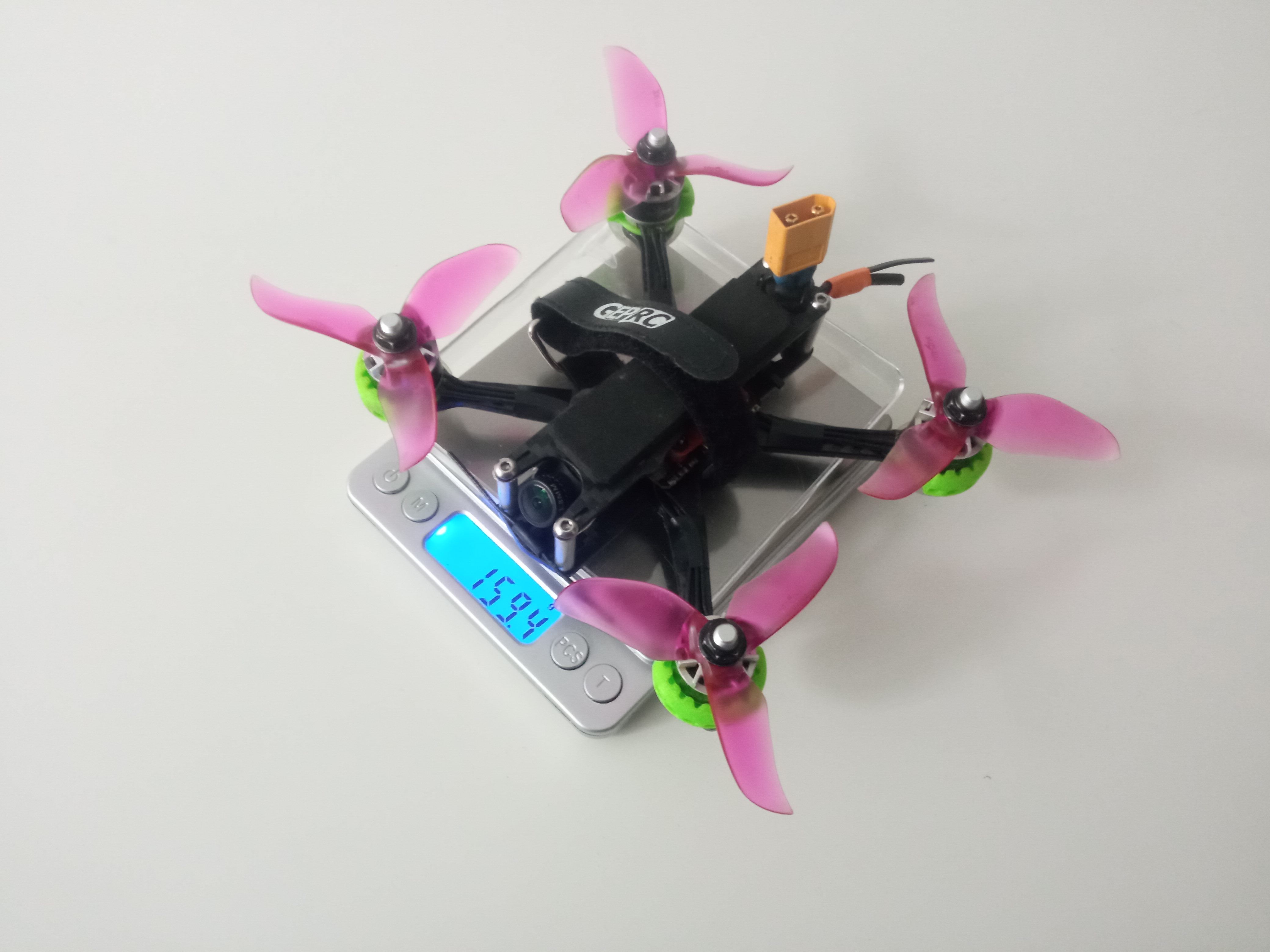

Weight: 163g

Battery:
Turnigy Bolt HV 4S 850mah (102g)
Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 265-285g
Fly time: 4-5minutes

Photos

Part List

Frame

TCMM 3 inch Drone Frame Martian IV Wheelbase 140mm for Martian IV RC Drone FPV Accessories
Aliexpress.com
$7.64

Flight Controller

20x20mm Jhemcu GHF420AIO F4 OSD Flight Controller w/ 5V 9V BEC Output & Built-in 35A BL_S 4In1 Brushless ESC Support DJI Air Uni (9 builds)
Banggood.com
$71.99

Motors

4 x Brotherhobby Tornado T1 1407 2800KV 4100KV 4S Racing Edition Brushless Motor for RC FPV Racing Drone (10 builds)
Banggood.com
$99.96

Propellers

4Pairs 8PCS Gemfan Flash 3052 3X5.2X3 3 Blade PC Propeller M5 T Mount 1.5mm for FPV Freestyle 3inch Toothpick Cinewhoop Drones (4 builds)
Aliexpress.com
$5.52

FPV Camera

CADDX ANT 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 16:9 4:3 for FPV Tinywhoop Cinewhoop Toothpick Mobula6
Aliexpress.com
$17.32

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (42 builds)
Banggood.com
$19.99

Batteries

Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (8 builds)
Hobbyking.com
$13.90

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna PRO Pagoda Long 3dbi (5 builds)
Shop.prodrone.pl
$40.00
Show stores (5)
