4S-3" HGLRC 1407 3600KV (2020-2024)

By scirocco on May 18, 2021

5  145  0

Frame: AlfaRC FS135 135mm Carbon Fiber
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Motor: HGLRC Flame 1407 3600KV (15,3g)
Propeller: iFlight Nazgul T3061 3blade
Camera: Foxeer Razer Micro
VTX: Eachine TX02 200mw

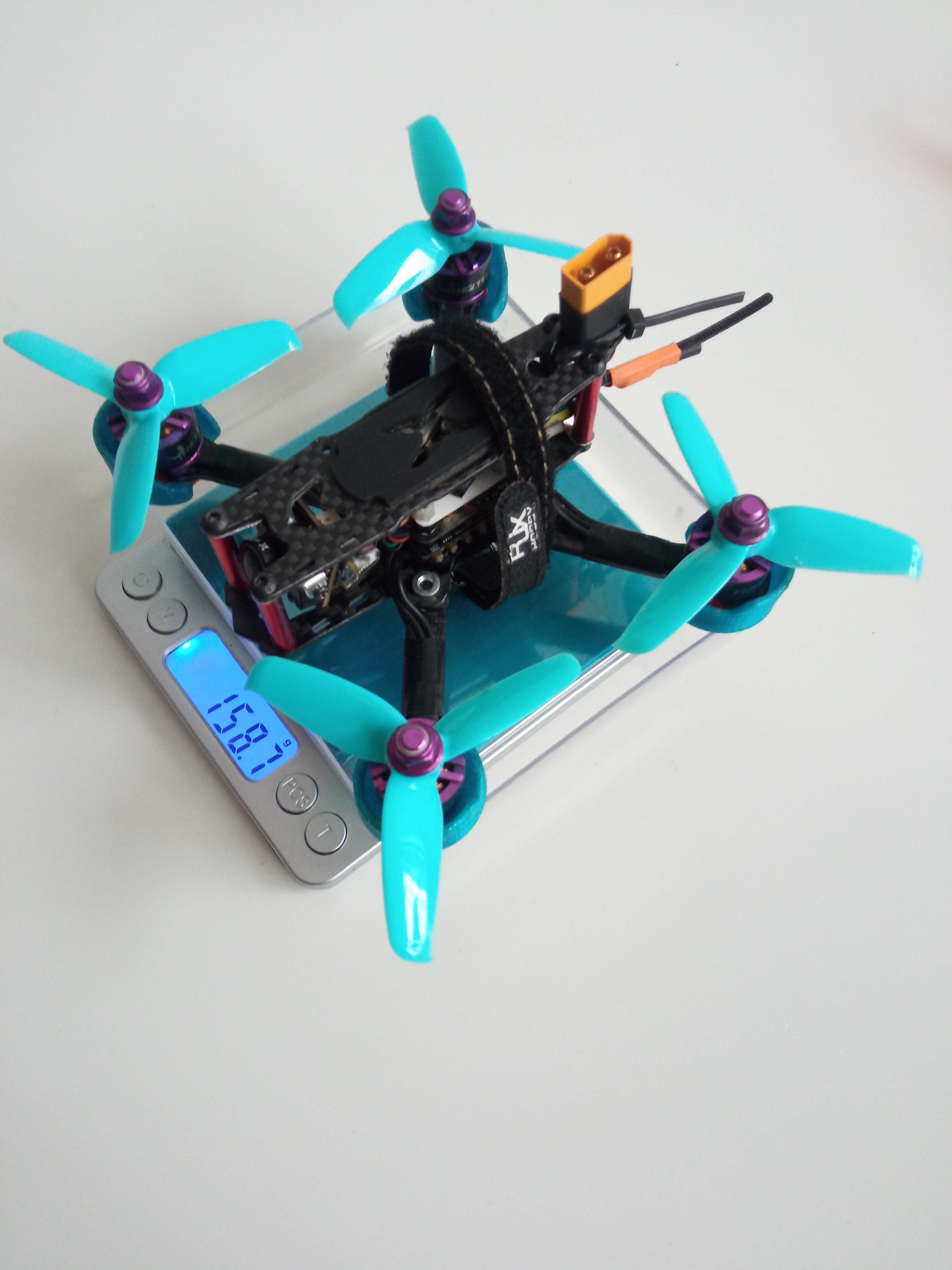

Weight: 160g

Battery: Turnigy Bolt HV 4S 850mah (102g)
Battery: Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 262-281g
Fly time: 5-8minutes

https://www.youtube.com/watch?v=YL2cW0aOR_c&t=128s

Photos

Part List

Frame

FS135 135mm Wheelbase 3mm Arm Thickness 3K Carbon Fiber Frame Kit for RC Drone FPV Racing Quadcopter Spare Part DIY Accs
Aliexpress.com
$14.63

Flight Controller

Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
$32.99

ESCs

20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
$35.99

Motors

4 x HGLRC Flame 1407 3600KV 3-4S Brushless Motor for 3 Inch RC Drone FPV Racing (3 builds)
Banggood.com
$55.08

Propellers

10 pairs iFlight Nazgul T3061 3061 3inch Propeller for FPV Racing Drone Quadcopter Frame Kit
Xt-xinte.com
$7.20

FPV Camera

Foxeer Razer Micro 1200TVL FPV Camera 1.8mm M8 Lens 16:9/4:3 PAL/NTSC Switchable CMOS 1/3 with 4.5 25V for FPV Racing Drone (2 builds)
Aliexpress.com
$17.00

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (10 builds)
Hobbyking.com
$18.44

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (6)
