Frame: AlfaRC Swallow F2 160 160mm Carbon Fiber
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Motor: LDARC XT1408 3750KV (16,7g)
Camera: Foxeer Razer Micro
VTX: Eachine TX02 200mw

Receiver:
Until 2023 Xm+
From 2024 ELRS

Propeller:
the best: Emax Avan Scimitar 4024 3blade
maybe: Gemfan Windancer 4032 3blade

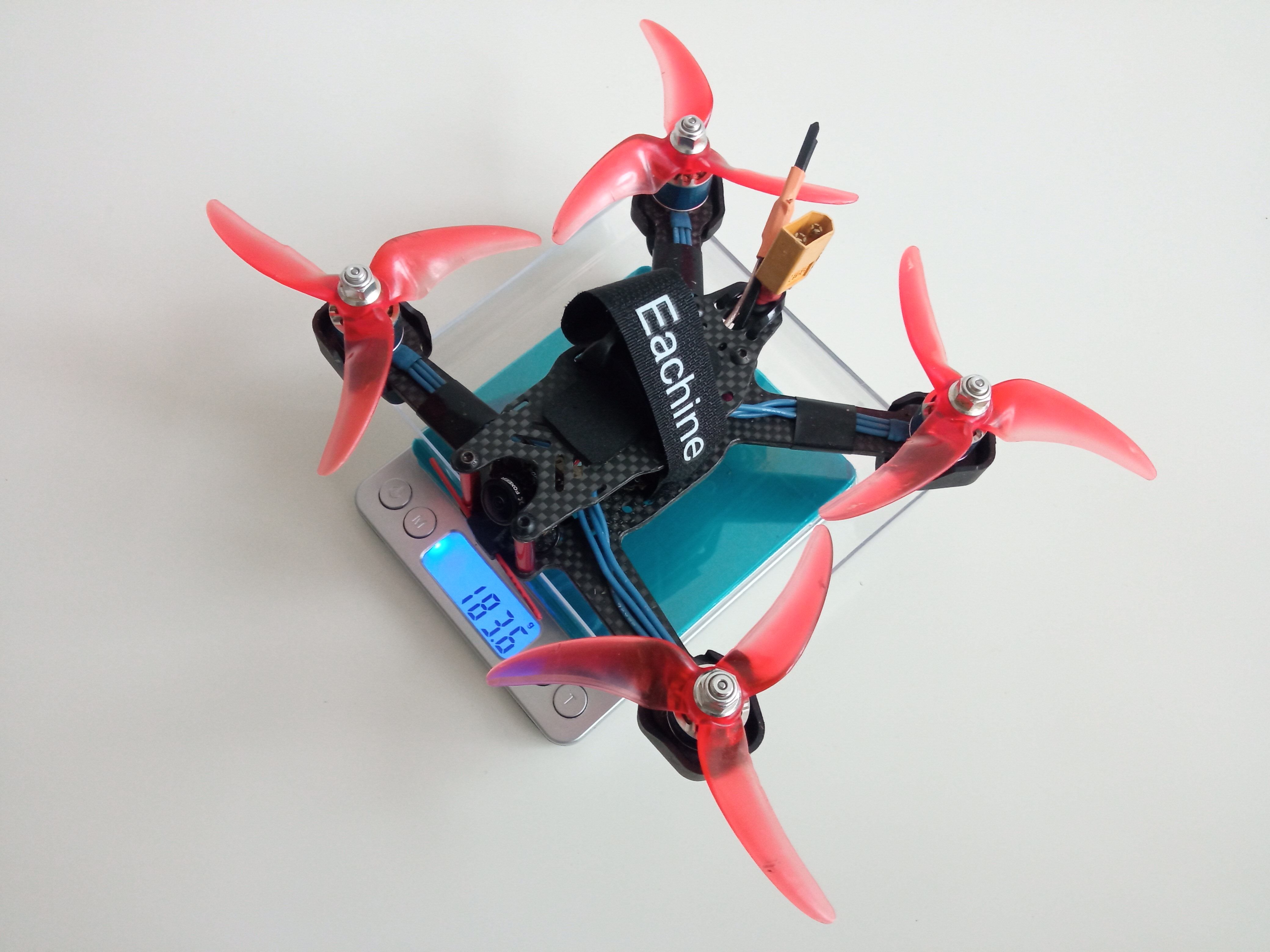

Weight: 184g

Battery: Turnigy Bolt HV 4S 850mah (102g)
Battery: Turnigy Bolt HV 4S 1000mah (122g)

Summ weight: around 287-305g
Fly time: 5minutes

Photos

Part List

Frame	AlfaRC Swallow F2 160 160mm Carbon Fiber Frame for FC FPV Quadcopter RC Mini Racing Drone Aliexpress.com	$14.37
Flight Controller	Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds) Banggood.com	$32.99
ESCs	20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds) Banggood.com	$35.99
Motors	4 x KINGKONG/LDARC XT1408 1408 3750KV 3-4S CW Thread Brushless Motor for RC Drone FPV Racing Banggood.com	$53.40
Propellers	4 Pairs Emax Avan Scimitar 4024-3 4 inch 3-Blade Propeller CW CCW Props for RC Drone Quadcopter (2 builds) Xt-xinte.com	$5.44
Propellers	2 Pairs Gemfan Windancer 3028/4032/5042/5043 3 blade Propeller Compatible 5mm/1.5mm Mounting Hole For RC Multicopter Drone Aliexpress.com	$3.99
FPV Camera	Foxeer Razer Micro 1200TVL FPV Camera 1.8mm M8 Lens 16:9/4:3 PAL/NTSC Switchable CMOS 1/3 with 4.5 25V for FPV Racing Drone (2 builds) Aliexpress.com	$17.00
FPV Transmitter	Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds) Banggood.com	$14.99
Receiver	FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (42 builds) Banggood.com	$19.99
Batteries	Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (8 builds) Hobbyking.com	$13.90
Radio	Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening Nl.aliexpress.com	$9.76
Radio	FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds) Banggood.com	$139.99
Radio	Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio Aliexpress.com	$107.57
Radio	Pocket Radio Controller (M2) (7 builds) Radiomasterrc.com	See Site
Goggles	Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts & Aliexpress.com	$345.71
Goggles	Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds) Banggood.com	$119.99
Radio Module	RadioMaster Ranger Nano 2.4GHz ELRS Module Aliexpress.com	$54.99
Battery Charger	ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds) Banggood.com	$32.99
Soldering Iron	TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds) Aliexpress.com	$28.61
Accessories	PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds) Shop.prodrone.pl	$85.00
Accessories	Antenna PRO Pagoda Long 3dbi (5 builds) Shop.prodrone.pl	$40.00

Show stores (7)

4S-4" Ldarc 1408 3750KV HU (2020-2025)

By scirocco on May 19, 2021
