3S-2" Diatone95 (2021-2024)

By scirocco on May 19, 2021

4  94  0

3S-2" Diatone95

Frame: Diatone 2019 GT R249 95mm Carbon Fiber with own handmade top plate! (15g)
FC: Emax magnum F3 2-4S 13-15A
Motor: Eachine 1104/8600KV (5g)
Camera: Caddx EOS2
VTX: Eachine TX02 200mw
Receiver: XM+

Propeller:
the best
HQ Prop T2X2X4 2020 4blade 0,8g
Emax Avan 2019 3blade 1,1g
maybe?
HQ T2X2X3 2020 3-Blade 0,75g
GEMFAN D51 2020 4blade 0,9g
Gemfan Hurricane 2023 3blade 0,9g
DAL PROP CYCLONE Q2035C 4blade 0,85g

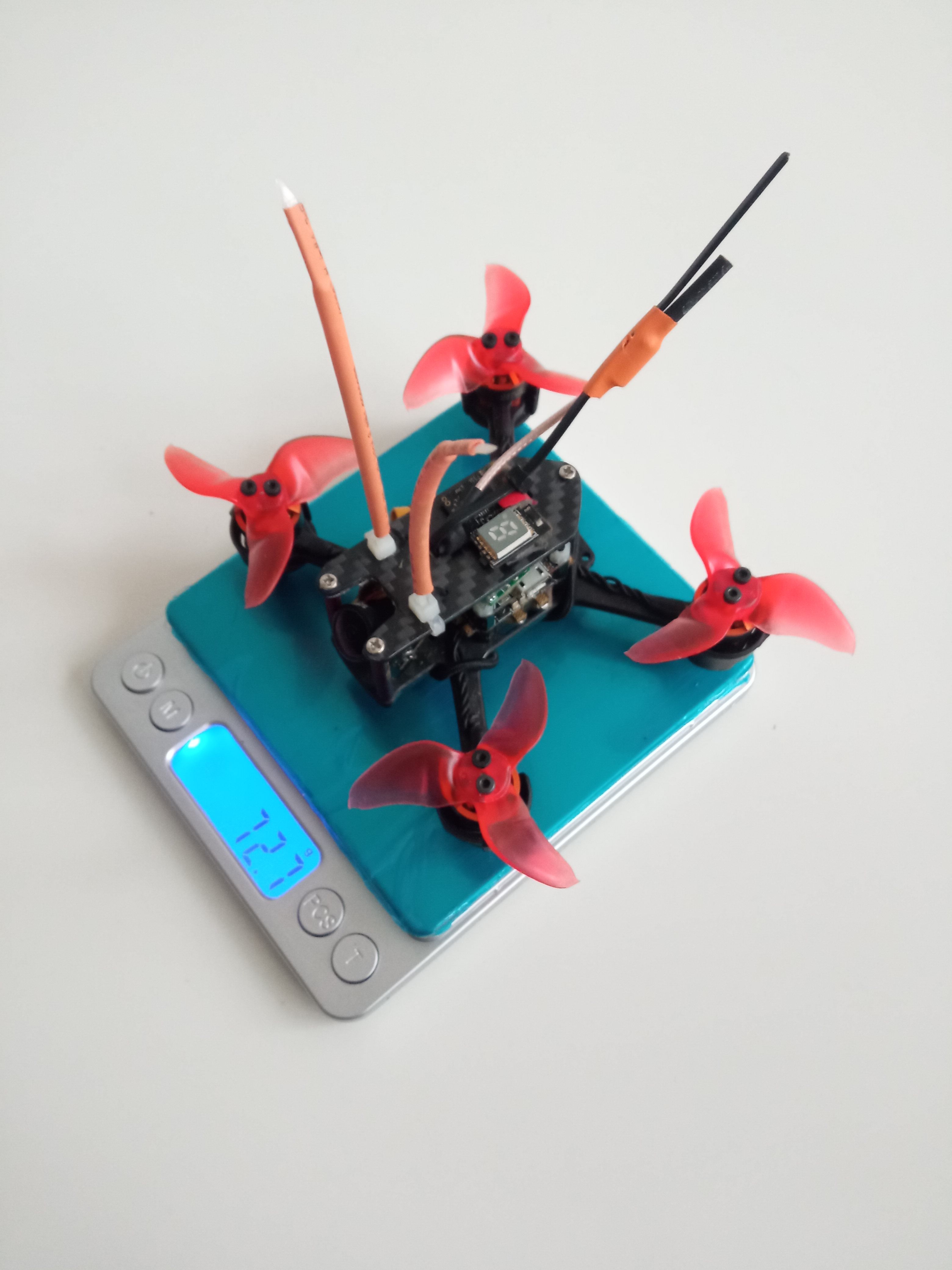

Weight 72g

Battery:
Turnigy Nano-Tech Plus 3S 450mAh (39g)
GNB 3S 450mAh (47g)

Summ weight: around 111-119g
Fly time: 5minutes

https://www.youtube.com/watch?v=xCsv-Sxja_E&t=103s

Photos

Part List

Frame

Diatone 2019 GT R249 95mm 2 Inch 4S FPV Racing RC Drone Spare Part Bottom Plate 3mm
Banggood.com
$8.87

Flight Controller

Emax F3 Magnum Mini Tower Systeem Bullet 12A 4 In 1 Esc En F3 Vlucht Controller (9 builds)
Nl.aliexpress.com
$70.78

Motors

4 x Eachine Tyro69 Onderdeel 1104 8600KV 2 3S Borstelloze Motor voor RC Drone FPV Racing MultiRotor Onderdeel accessoires (5 builds)
Nl.aliexpress.com
$110.24

Propellers

4PCS/2Pairs Brand New EMAX AVAN Blur 2 inch propeller 3 blade 2CW and 2CCW mini props for RC FPV multicopter racing drones ACCS
Aliexpress.com
$1.89

FPV Camera

14X14Mm Caddx Turbo EOS2 V2 1200TVL 1/3 "Cmos Sensor 2.1Mm Lens Global Wdr Fpv Mini camera Voor Rc Fpv Racing Micro Whoop Drones (9 builds)
Nl.aliexpress.com
$16.12

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

Gaoneng – batterie Lipo GNB 520mAh 3S 11.4V 80C/160C HV avec prise XT30 pour Drone Betafpv Beta85X Whoop FPV d'intérieur, pià (11 builds)
Fr.aliexpress.com
$20.43

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (5)
