6S-6" Excelvan 2306 1650KV (2021-2024)

By scirocco on Aug 13, 2021

10  292  3

Frame: HANTU 240mm Carbon Fiber (50g)
FC+ESC: HAKRC F4120 3-6S 35A AIO
Motor: Emax Excelvan 2306 1650KV (29,5g)
Propeller: 6030, 6040 2blade
Propeller: HQ5145 red, GF6030 blue 3blade HQ Bubble Gum 6030 pink 2blade
Camera: Runcam Micro Swift 3
Camera: RunCam Phoenix 2 SE
VTX: Eachine TX02 200mw
Receiver: XM+

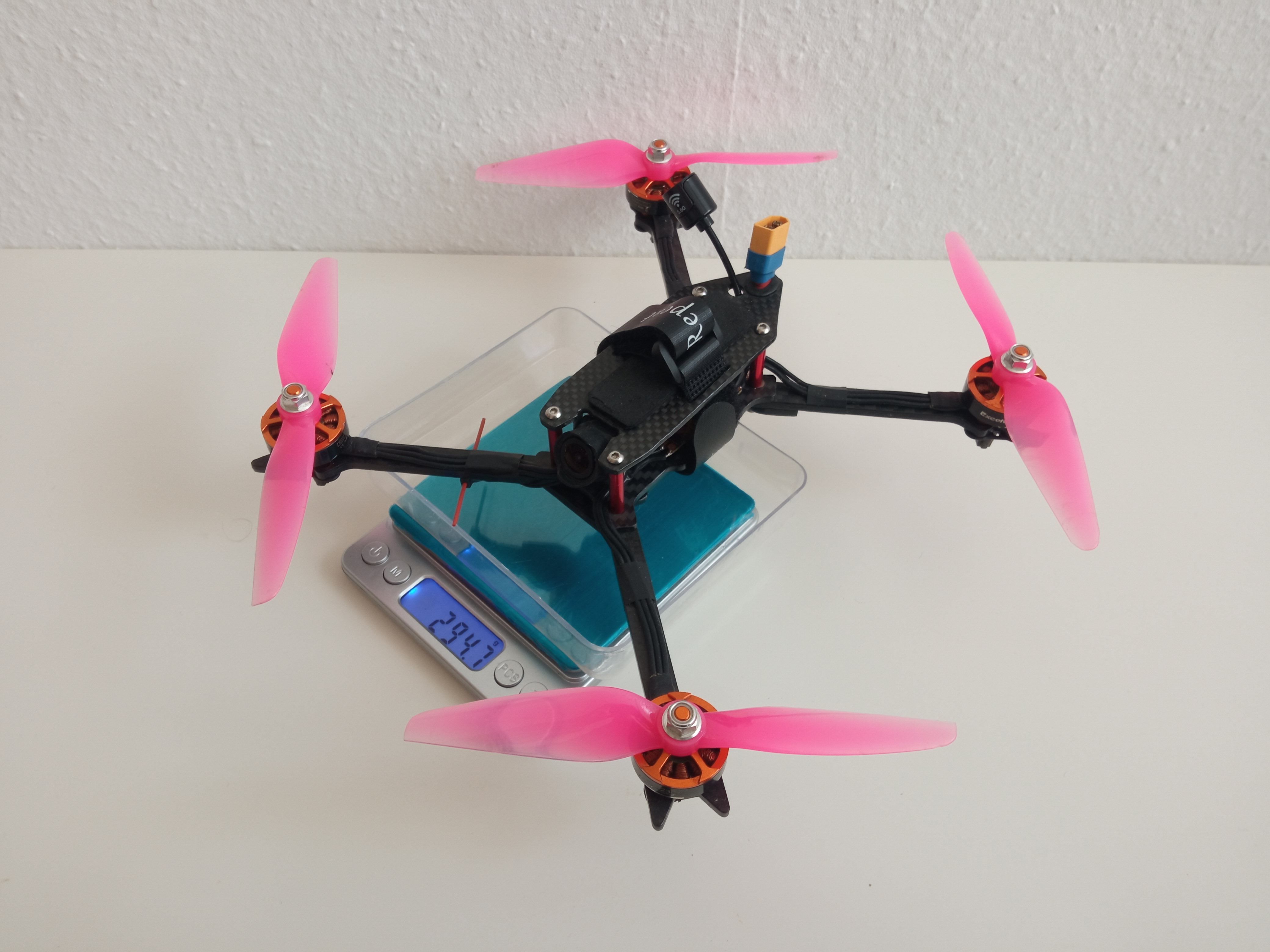

Weight: 283-290g

Battery:
Turnigy Bolt HV 4S 850mah (102g)
Turnigy Bolt HV 4S 1000mah (122g)
Turnigy Nano-Tech Plus 6S 1000mAh (184g)
TATTU R-Line 6S 1050mAh 120C (209g)

Summ weight: from 385g -> 503g
Flytime: 4-6-8 minutes

Photos

Part List

Frame

Hantu'6 6 Inch 240mm Wheelbase 4mm Arm Carbon Fiber FPV Racing Frame Kit for RC Drone (3 builds)
Banggood.com
$25.59

Flight Controller

20*20mm HAKRC F4120 3-6S 35A AIO Flight Controller&ESC Baro Version Compatibled with DJI Air Unit
Banggood.com
$59.99

Motors

4 x Excelvan GB2306 Brushless Motor CW , Price & Reviews | Gearbest
Gearbest.com
$55.72

Propellers

8 paar 6030 Propeller 6X3 Multicopter CW CCW Prop voor QAV250 Quadcopter Prop
Nl.aliexpress.com
$4.07

FPV Camera

Runcam Micro Swift 3 600TVL 1/3 "Super Had Ii Ccd 2.1 Mm 2.3 Mm M12 M8 Lens Pal Fpv camera Voor Rc Racing Drone Квадроко (5 builds)
Nl.aliexpress.com
$42.00

FPV Camera

RunCam Phoenix 2 SE Special Edition Camera Phoenix2 SE DC 5 36V 2.1mm 8.9g 19*19*22mm Camera for RC FPV Racing Drone Quadcopter (2 builds)
Aliexpress.com
$35.37

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

Turnigy Nano-Tech Plus 1000mAh 6S 70C Lipo Pack w/XT60
Hobbyking.com
$23.79

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (6)

Discussion

Sign in to comment

nitram509   Jan 07, 2023

Interesting idea to mount the camera.
What material do you use? Is this a thin alloy stripe?

And out of curiosity ... how robust is the frame? (the arms looking a somewhat thin to me)

scirocco   Jan 07, 2023
1

Yes camera mount is hand made from Alloy slide.... like from Brico or OBI it is part of roof!
https://www.obi.hu/tetolemezek/paracseppento-ereszlemez-merete-250-mm-x-1000-mm-natur-aluminium/p/4122925
Aluminium thick is 0.6mm and very easy to process it cut and drill it like plastic but alloy is more durable...
I drew shape like "L" cut and hole then curve it! I did canopy from this type of alloy
https://rotorbuilds.com/build/30288
Arms of Hantu.....
thick is enough problem is around the screw! Bcus there is 3mm hole for standoff! It is the weakest point!
Breakable!

nitram509   Jan 07, 2023

Kudos! Very elegant solution.
I really like such small details, and also experienced, alloy is way stronger and more robust than 3D printed parts.
In my earlier versions of the Standar II green/red/purple builds I used 2mm Alloy and build an SMA antenna holder. This was rock solid though.
https://rotorbuilds.com/pictures/f_5939_UxCrsPLafMNXHxg9tbrKvxbw0.jpg

That said, these SMA connectors are quite heavy. I recently replaced them with nano-VTXs (just 350mW instead of 600mW) and bought better Antennas for my goggles. So I have same distance and saved almost 20g of weight! :)

About the weakest point around the whole - you're right.
I had a similar and bad experience with a 3 inch build (Atlas 130 frame) and do not use this frame anymore since then. https://rotorbuilds.com/pictures/f_5939_sd4Y0zhnlBjAXW99VyJYW5GTz.jpg
