3S-3" kaidju-iF project! (2021-2025)

By scirocco on Jul 19, 2021

3  158  1

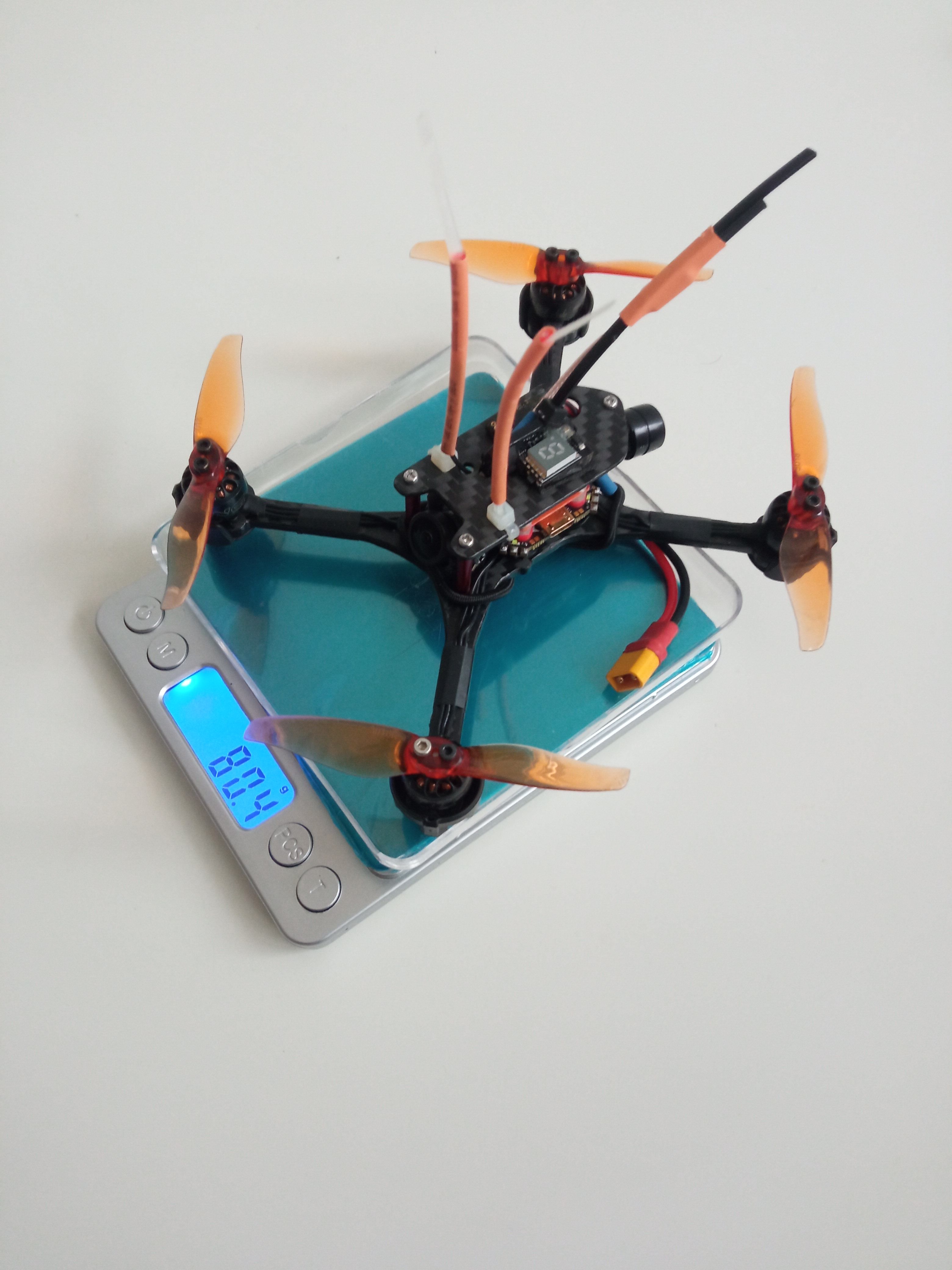

3S 3" kaidju-iF project with own top plate from 1,5mm carbon! Weight 78,8g!

Frame: MR135U KAIDJU R 3 Carbon Fiber with own handmade top plate! (18g)
Motor: iFlight XING-E 1105 6000KV (6,4g)
FC: JHEMCU GHF13 AIO F4
Camera: Runcam Nano 4
VTX: Eachine TX02 200mw
Receiver: XM+

Propeller: Gemfan Hurricane 3018 2blade (the best 0,75g) or HQ 3015 3blade (1.1g)!
maybe? HQ 3015/3020 2 blade (0,8/1g)

Weight: 79g

Battery:
Turnigy Nano-Tech Plus 3S 450mAh ​(39g)
GNB 3S 450mAh (47g)

Summ weight: around 118-126g
Fly time: 5minutes

Photos

Discussion

Sign in to comment

LynxFPV   Nov 23, 2021

WOW, very inexpensive! that is really cool 😎
well done
