2S-2,5" Geelang25 1102 9000KV (2022-2024)

By scirocco on Jul 01, 2022

4  187  0

Geelang + Uruav ur85 1102
New marriage from fragile Bushido!

Frame: Geelang WASP V2 100mm Wheelbase 4mm Carbon Fiber Frame
FC: HappyModel Crazybee F4 Pro V2.0 BLHELIS 5A ESC
VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW

Canopy:
BETAFPV Micro Canopy Lite
Home/Hand made from Aloy!
Happymodel Crux3 Camera Mount with 25.5x25.5mm

Propeller: KingKong 66mm
Motor: URUAV 1102/9000KV
Camera: Caddx ANT

Receiver:
Until 2023 Spi build-n
From 2023 ELRS

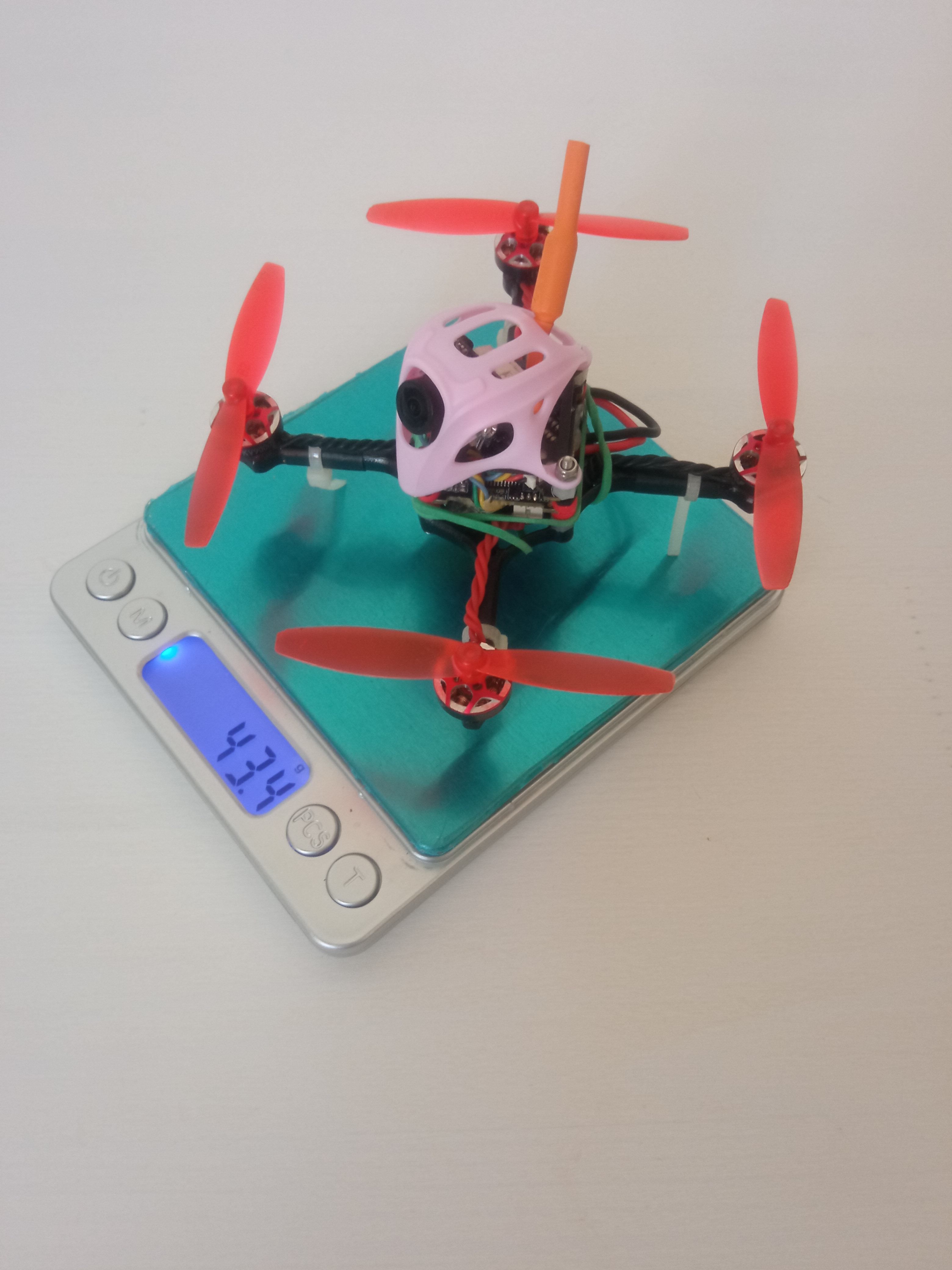

Weight:
Spi+ALOY vs ELRS+BETAFPV
43,7g vs 43,6g

Battery:
Turnigy Nano-Tech 2S 300mah (18g)
GNB HV 2S 300mah (19g)
GNB HV 2S 380mah (23g)

Summ weight: around 62-66g
Fly time: 4-6minutes+

Photos

Part List

Frame

Geelang WASP V2 100mm Wheelbase 4mm Carbon Fiber Frame Kit for RC Drone FPV Racing
Banggood.com
$9.99

Frame

Carte adaptateur de contrôleur de vol M2, en Fiber de carbone, Distance du trou de la plaque de conversion 25.5x25.5/20x2./16x1 (9 builds)
Fr.aliexpress.com
$1.38

Flight Controller

Happymodel – Contrôleur De Vol Crazybee F4 Pro V2.0 Blhelis 5a Esc Spi, Récepteurs Pour Drone Fpv Tinywhoop Cinewhoop Mobula (3 builds)
Fr.aliexpress.com
$62.09

Motors

4 x URUAV – pièce de rechange pour Drone de course UR85/UR85HD FPV, modèles RC 1102 9000KV 2 3S /10000KV 1 2S arbre 1.5mm (3 builds)
Fr.aliexpress.com
$63.88

Propellers

Gemfan – hélice PC à 2 lames, pièces de bricolage, pour Drones RC FPV Freestyle 1.5 pouces, 65mmS 65mm, 1mm 2.5mm, 12 paire (2 builds)
Fr.aliexpress.com
$6.01

Propellers

KINGKONG – hélice à 2 lames CW CCW, trou de montage de 1.5MM, moteur 8520 pour RC DIY FPV Racing Drone, pièces et accessoir (2 builds)
Fr.aliexpress.com
$5.59

Propellers

5 paires 10PCS HQPROP 65mm 2 Lame Hélice PC 1.5mm pour RC FPV Freestyle 2.5 pouces Cure Dents Cinewhoop Canalisé Drones Pièce (4 builds)
Fr.aliexpress.com
$5.44

Propellers

Gemfan – hélice PC à 2 lames, 20 paires, 40 pièces, 65mmS 65mm, 1mm 1.5mm pour drone RC FPV Freestyle 2.5 pouces, pièces à (2 builds)
Fr.aliexpress.com
$12.00

FPV Camera

Caddx Ant 1.8mm 1200tvl 16:9/4:3 Global Wdr Avec Osd 2g Ultra Léger Nano Fpv Caméra Pour Fpv Course Drone Rc - Pièces & Accs (7 builds)
Fr.aliexpress.com
$26.00

FPV Transmitter

VTX commutable pour RC FPV Racing Drone Quadcopter Parts Accs, Mod Ymodel ature ula7 Part Upgrade, 5.8G 40CH, 25mW ~ 200mW (18 builds)
Fr.aliexpress.com
$16.00

Batteries

Gaoneng – lot de 1 à 10 batteries Lipo GNB 2S 7.6V 300mAh 80C/160C, XT30U F prises pour Micro RC FPV Racing Cine Whoop, pièc (3 builds)
Fr.aliexpress.com
$8.29

Batteries

Gaoneng – batterie Lipo GNB 2S HV, 380mah 7.6V 90C/180C avec prise XT30 pour Drone BETAFPV Beta75X 2S Beta65X 2S Whoop, 1 10 p (4 builds)
Fr.aliexpress.com
$11.78

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Hardware

Happymodel – couvercle de Protection de caméra Crux3, accessoire pour Drone de course FPV RC Quadcopter (6 builds)
Fr.aliexpress.com
$2.78

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (5)
