Marriage betwwen: Twig115HD + Tyro69!
Unfortunatelly HM Crazybee F4 Pro V3.0 has very weak Spi FrSky receiver!
Finaly I replaced it into Xm+.... more more better :)

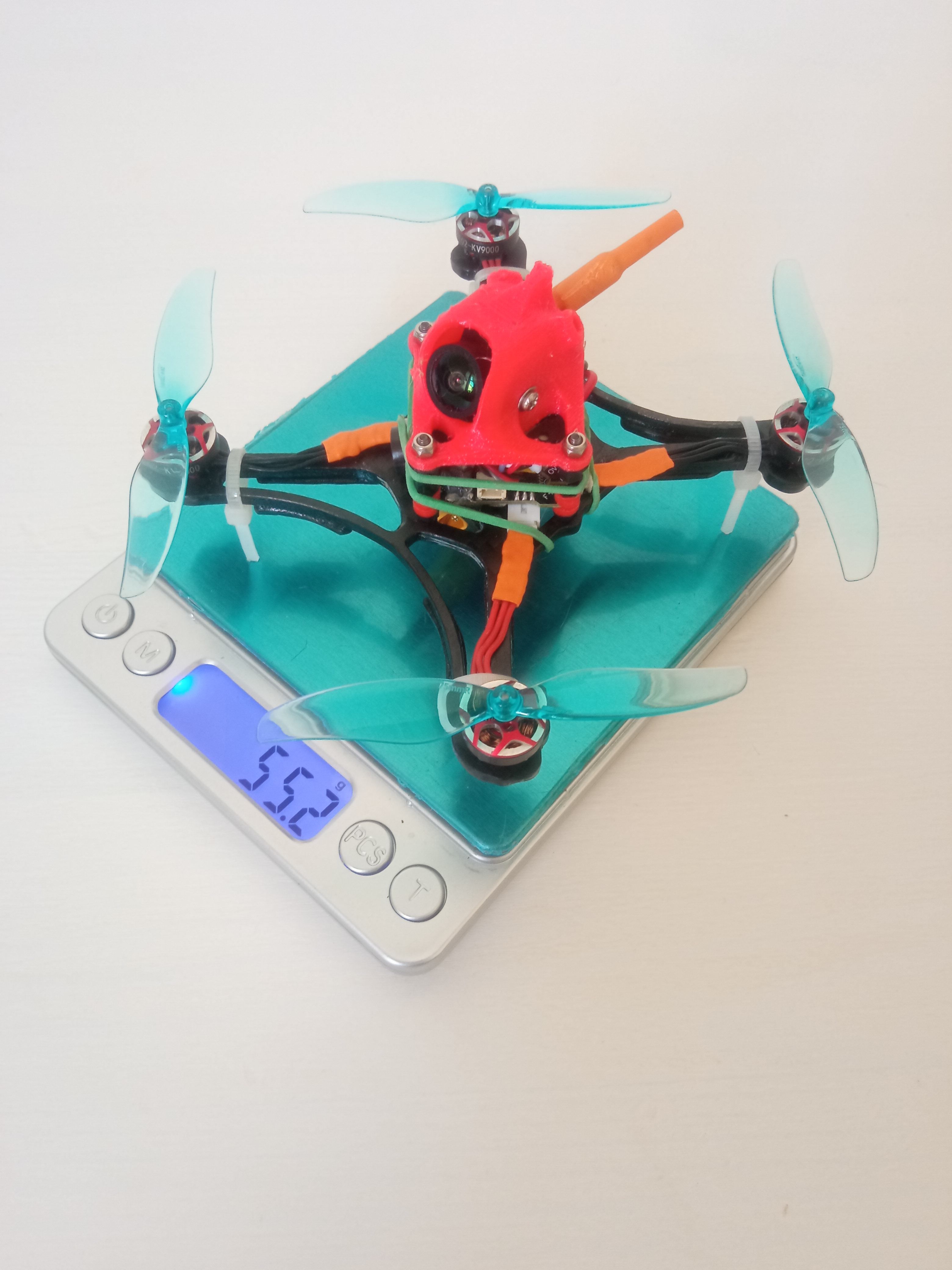

First build: (67g)
FC: HM Crazybee F4 Pro V3.0 10A
Second updated build: (71g)
FC: JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S
Frame: Twig115mm
Canopy: ShenStar - 3D Printed Material TPU Camera Mount with 25.5x25.5mm
VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW
Propeller: HQ 3015 or 3020 2blade
Motor: Tcmrc – 1104 8600KV 2-3S
Camera: BAYCKRC - COOEYE EL1 NANO
Receiver:
Until 2023 Xm+
From 2023 ELRS
Replaces or add:
- Xm+ result: +2gramm (61g -> 63g)
- Crux3 canopy -> into 3D print, result: +4,2gramm (63g -> 67,2g)
- HM Crazybee F4 Pro -> into JHEMCU GHF411AIO BMI, result: + 2,5gramm (67,2g -> 69,7g)
extra S/Amper -> 4S vs 6S / 10A vs 40A - replace battery cable from awg20 -> awg18 plus capacitor 100->200! result +1gramm (69,7g -> 70.9g)
Weight: 71g
Battery:
GNB 2S 450mah (29g)
GNB HV 2S 380mah (23g)
GNB HV 3S 380mah (31g)
GNB HV 2S 660mah (34g)
GNB HV 2S 720mah (36g)
Summ weight: around 93-107g
Fly time: 4-6minutes+
