3S-3" TWIG30 1103 7500KV PH (2022-2025)

By scirocco on Nov 18, 2022

3 151 0

Clasic motor build with toothpick frame!

Frame: 125mm x3 V2 /V1 Carbon Fiber Frame Plate for 20x20mm and 25,5x25,5mm
Canopy: ShenStar - 3D Printed Material TPU Camera Mount with 25.5x25.5mm
VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW
Camera: BAYCKRC - COOEYE EL1 NANO

Propeller:
(2022) Gemfan 3025 2blade (1g) or 3035 3blade
(2024) Gemfan 75mm 2-Blade PC Propeller 1.5mm for DJI Tello (0,5g)

FC:
(2022) JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S
(2024) JHEMCU GHF411AIO-HD 40A OSD Flight Controller BLheli_S 40A 3-6S 4in1 with baro

Motor:
(2022) Full Speed 1104/7500KV (5,1g)
(2024) DronArt 1103/7500KV (4,1g)

Receiver:

Until 2023 Xm+
From 2023 ELRS Jumper
From 2025 ELRS Ceramik Tower (-1g)

Weight:
Firts: 75g
Second: 67g

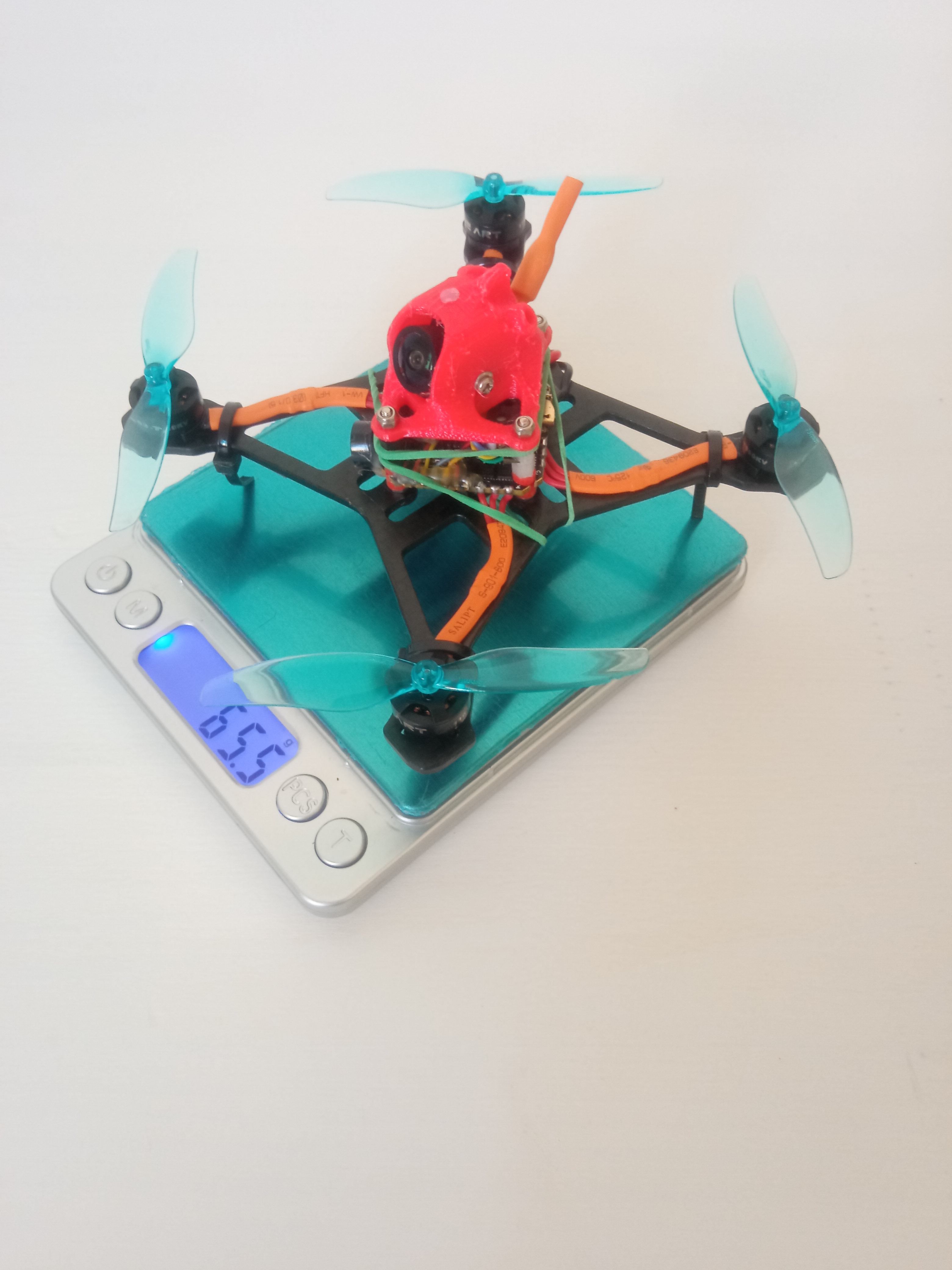

Third: 65,5g

Battery:
Until 2023
GNB 3S 450mah (50g) or GNB 2S 660mah (34g)
From 2024 GNB HV 3S 380mah (31g)

Summ weight:
First around 106-110-125g
Second / Third 98-97g

Fly time: 5minutes

Photos

Part List

Frame	Fr.aliexpress.com (2 builds) Fr.aliexpress.com	See Site
Flight Controller	Jhemcu – Contrôleur De Vol Blhelis Ghf411aio-icm 40a F411 4 En 1 Esc 2-6s Pour Drones Conduits Avec Cure-dents Fpv - Pièces (13 builds) Fr.aliexpress.com	$59.63
Flight Controller	Aliexpress.com Aliexpress.com	See Site
Motors	4 x FSD 1104 7500KV Brushless Motor (8 builds) Fullspeedrc.com	$39.96
Motors	Aliexpress.com (8 builds) Aliexpress.com	$1,103.00
Propellers	5 paires 10PCS HQPROP 65mm 2 Lame Hélice PC 1.5mm pour RC FPV Freestyle 2.5 pouces Cure Dents Cinewhoop Canalisé Drones Pièce (3 builds) Fr.aliexpress.com	$5.44
Propellers	HQPROP – hélice PC à 2 lames T3X2 3020, pour RC FPV Freestyle Racing, Micro Drones, cure dents de 3 pouces, pièces de brico (2 builds) Fr.aliexpress.com	$3.79
Propellers	Aliexpress.com Aliexpress.com	See Site
FPV Camera	BAYCKRC COOEYE EL1 NANO FPV Analog Camera 1000TVL 150° FOV 1.8mm Lens 4:3 NTSC Suitbale for RC FPV Quadcopter Traversing Drones (2 builds) Aliexpress.com	$22.22
FPV Transmitter	VTX commutable pour RC FPV Racing Drone Quadcopter Parts Accs, Mod Ymodel ature ula7 Part Upgrade, 5.8G 40CH, 25mW ~ 200mW (18 builds) Fr.aliexpress.com	$16.00
Receiver	FrSky XM Plus Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (1149 builds) Banggood.com	$20.99
Receiver	Aliexpress.com Aliexpress.com	See Site
Batteries	Gaoneng – Batterie Lipo Gnb 380mah 3s1p 11.4v 90c/180c Hv Avec Prise Xt30 Pour Betafpv Beta75x 3s Beta65x 2s Whoop, 2 Pièces (5 builds) Fr.aliexpress.com	$25.13
Batteries	Batterie Lipo GNB 2S 660mAh 7.6V 90C/180C HV avec prise XT30U F pour Drone RC Happymodel FPV Racing Cine Whoop BetaFPV, 1 à 10 (2 builds) Fr.aliexpress.com	$14.81
Radio	Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening Nl.aliexpress.com	$9.76
Radio	RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R Banggood.com	$67.99
Radio	FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds) Banggood.com	$139.99
Radio	Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio Aliexpress.com	$107.57
Goggles	Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts & Aliexpress.com	$345.71
Goggles	Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds) Banggood.com	$119.99
3D Printed	ShenStar – support de caméra en TPU, matériel imprimé en 3D, avec trou de montage de 25.5x25.5mm pour cadre de Drone Mobula (3 builds) Fr.aliexpress.com	$4.04
Radio Module	RadioMaster Ranger Nano 2.4GHz ELRS Module Aliexpress.com	$54.99
Battery Charger	ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds) Banggood.com	$32.99
Soldering Iron	TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds) Aliexpress.com	$28.61
Accessories	PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds) Shop.prodrone.pl	$85.00
Accessories	Antenna PRO Pagoda Long 3dbi (5 builds) Shop.prodrone.pl	$40.00
