Frame: Hantu210 210mm (47g)
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Motor: JYU 2205 2300KV (24g)
Propeller: KingKong 5040 3 blade
Gemfan LR 5126 Durable 2 Blade
Camera: RunCam Phoenix 2 SE
VTX: Eachine TX02 200mw

Receiver:
Until 2023 Xm+
From 2024 ELRS

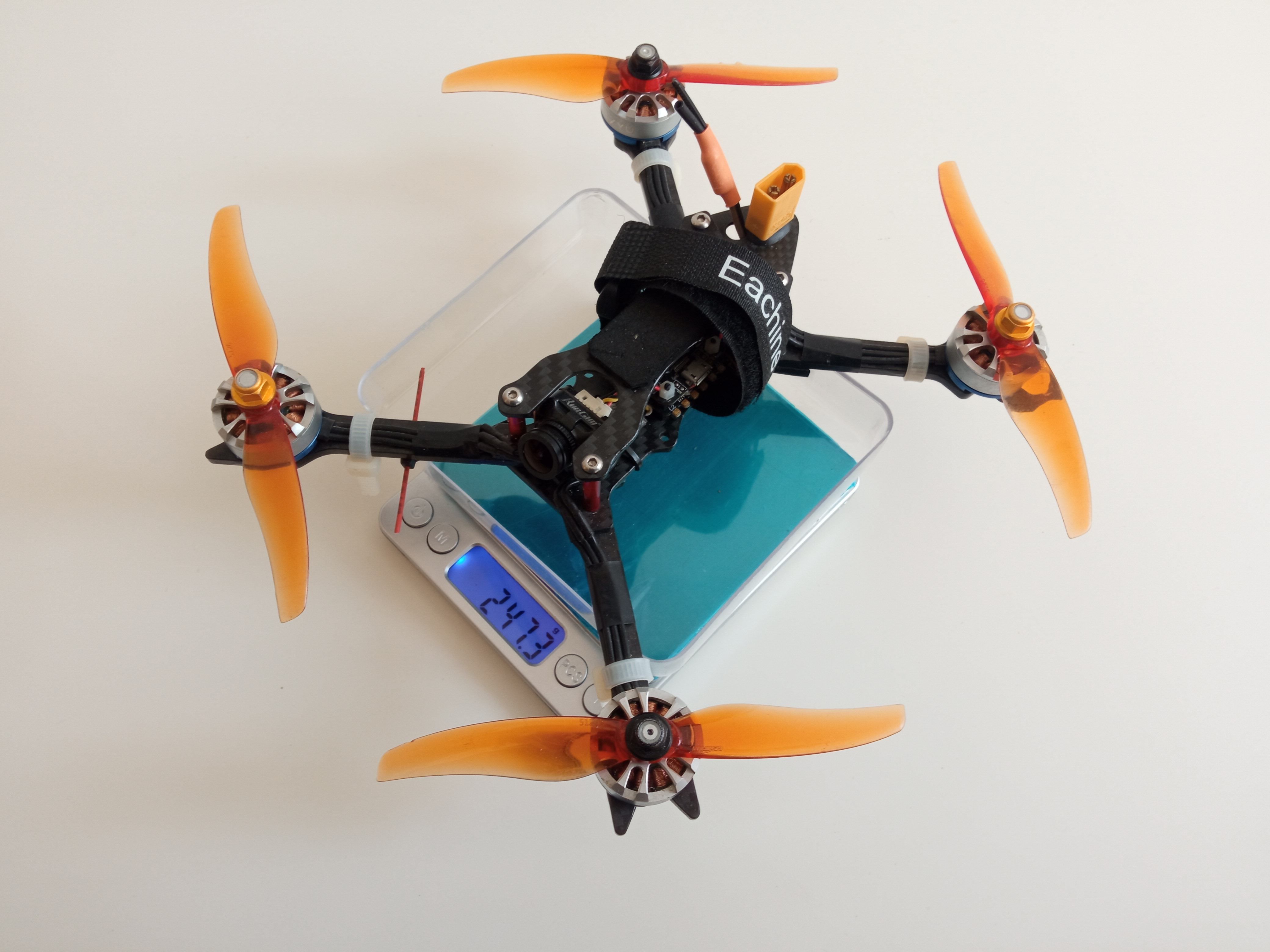

Weight: 250g

Battery:
Turnigy Bolt HV 4S 850mah (102g)
Turnigy Bolt HV 4S 1000mah (121g)

Summ weight: around 352-371g
Fly time: 4-6minutes

Photos

Part List

Frame	Hantu 5 Inch 210 Mm Carbon Fiber Frame Kit 4 Mm Arm Met 3D Gedrukt Onderdelen Voor Rc Multirotor Fpv racing Drone (4 builds) Nl.aliexpress.com	$32.17
Flight Controller	Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds) Banggood.com	$32.99
ESCs	20x20mm HAKRC 25A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing Banggood.com	$35.99
Motors	4pcs Jyu 2205 2300kv 3-4s Cw Ccw Brushless Motor For Rc Multirotor Fpv Racing Drone Spare Part - Parts & Accs - AliExpress Aliexpress.com	$32.87
Propellers	Kingkong 5040 – hélices 3 lames couleur unique, 5x4x3, 10 paires, pour FPV Quadcopter, drone RC, Kit de cadre de course (5 builds) Fr.aliexpress.com	$14.07
FPV Camera	RunCam Phoenix 2 SE Special Edition Camera Phoenix2 SE DC 5 36V 2.1mm 8.9g 191922mm Camera for RC FPV Racing Drone Quadcopter (2 builds) Aliexpress.com	$35.37
FPV Transmitter	Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds) Banggood.com	$14.99
Receiver	FrSky XM Plus Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (1158 builds) Banggood.com	$20.99
Batteries	Turnigy Bolt 1000mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) Hobbyking.com	$18.44

Show stores (5)

4S-5" JYU2205 2300KV HU (2023-2025)

By scirocco on May 04, 2023
