MB Cinematic 7inch

By pete_oz on Jan 04, 2019

43  4,180  17

For maiden test flight click here

Alt Tag

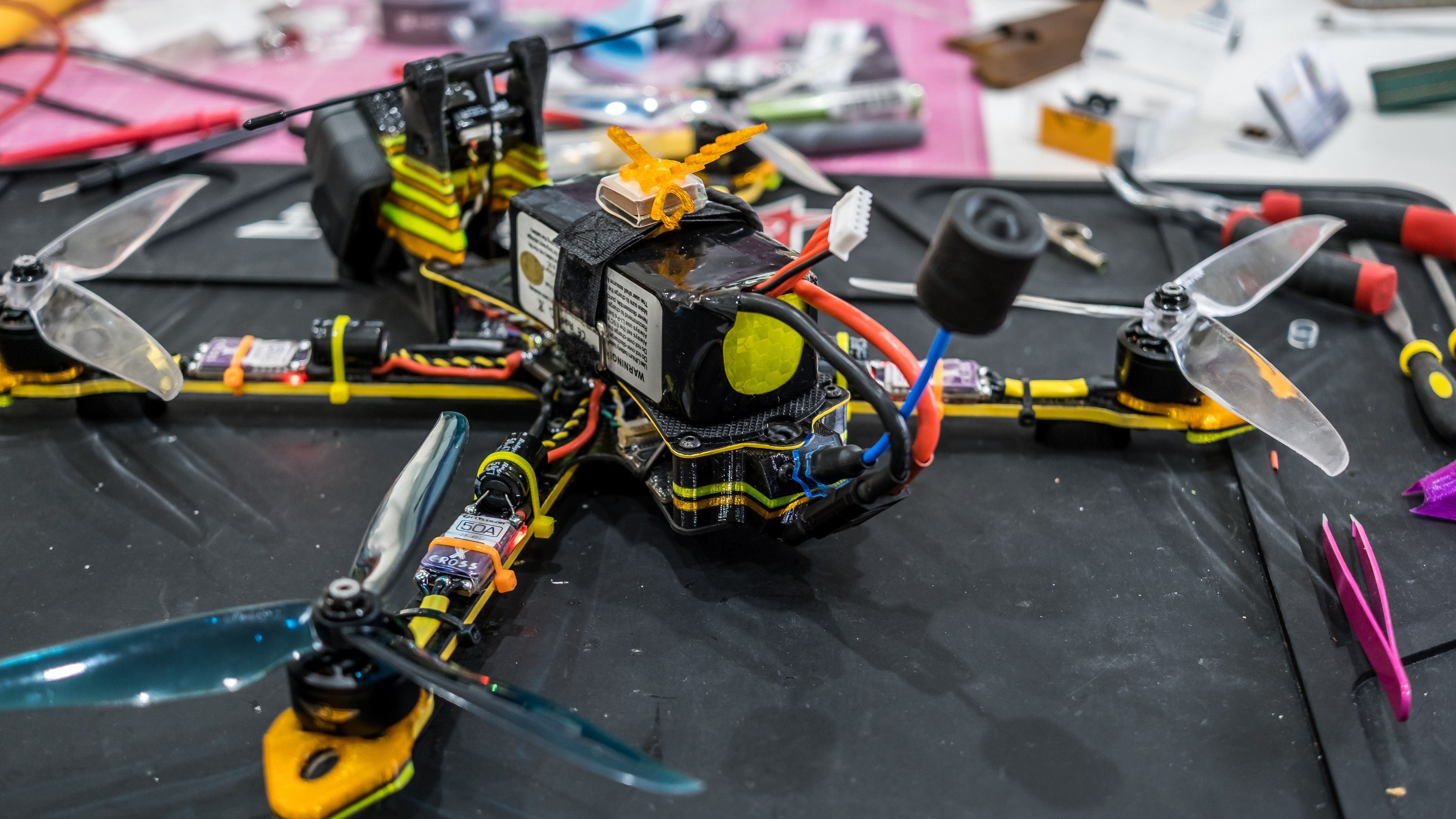

This is a low profile long-range quad that can carry large (up to 140mm long) top mounted battery.

Components used in this build :

  • Multicopter Builders Cinematic 7 (frame)
  • JBF4 v2 AIO FC
  • Multicopter Builders Primo 2208 2150kv motors
  • Flycolor X-cross (50A) ESCs
  • Foxeer Predator Mini v3 camera
  • TBS Unify Pro HV VTx
  • TBS Crossfire Nano Rx
  • TrueRC AXII Long SMA antenna
  • Ublox M8N GPS
  • Hellgate buzzer
  • External microphone

Alt Tag

Batteries :

  • Bonka 1800mAh 75C 5S
  • Bonka 2200mAh 75C 5S
  • Dinogy 1800mAh 80C 5S
  • Dinogy 3300mAh 70C 5S
  • Dinogy 3700mAh 65C 6S
  • Dinogy 4000mAh 65C 6S

Alt Tag

I'll be using 7inch and 6inch props :

  • DAL T7056C
  • Master Airscrew 6045 RS
  • Gemfan Flash 6042

I normally use CL Racing F4S on all of my builds but decided to make an exception for this build and instead used JBF4 v2 FC, it's basically identically designed flight controller (even using the CL Racing F4S firmware) but it's rated up to 240A and probably more suitable for this setup with 7inch props and potentially 4000mAh 65C 6S battery. One major disadvantage is the fact that JBF4 comes with no SD card reader for the blackbox, instead only onboard dataflash memory is used and at 16MB it's not very usefull (it can record only one 5min flight before it gets full and then it takes 15 minutes to download the log file).

AUW with GoPro Hero6 and 1800mAh 5S battery is 855g.
Built as a long range surfer it's actually reasonably agile quad even on a tight track.

For maiden test flight click here

Photos

Part List

Frame

Cinematic 7 (10 builds)
Multicopterbuilders.com
$85.00

Flight Controller

Joshua Bardwell F4 Flight Controller V2.15 AIO FC w/ OSDby RDQ (159 builds)
Phaserfpv.com.au
See Site

ESCs

4 x Flycolor X-Cross BL32 50A ESC (3-6s) (2 builds)
Phaserfpv.com.au
See Site

Motors

4 x MB Primo 2208 2150kv (10 builds)
Multicopterbuilders.com
$75.96

Propellers

Dal Prop Cyclone T7056C PRO Propellers (2CW+2CCW) (2 builds)
Phaserfpv.com.au
See Site

Propellers

HQProp 7x4.5B CCW Propeller - 2 Blade (2 pack) (Black) (2 builds)
Getfpv.com
$1.99

FPV Camera

Foxeer Predator Mini 5 Camera 4:3 16:9 1000TVL Super WDR PAL HS1251 (106 builds)
Phaserfpv.com.au
See Site

FPV Transmitter

TBS Unify Pro 5G8 VTX Video Transmitter HV (SMA) (596 builds)
Phaserfpv.com.au
See Site

Antenna

TRUERC AXII Antenna with SMA (Long Version) (3 builds)
Phaserfpv.com.au
See Site

Receiver

TBS Crossfire Nano RX Special Edition (SE) (412 builds)
Phaserfpv.com.au
See Site

Batteries

Bonka 2200mAh 75c 5s XT60 Lipo Battery BKU2-2200/75-5S/GR [DG] (3 builds)
Phaserfpv.com.au
See Site

Batteries

Bonka 1800mAh 75c 5s XT60 Lipo Battery BKU2-1800/75-5S/GR [DG]
Phaserfpv.com.au
See Site

Misc Parts

4 x Rubycon 12.5x20mm ZLH Low ESR 50V/470uF Capacitor (4 builds)
Phaserfpv.com.au
See Site

Misc Parts

Ublox M8N GPS Module for INAV (NO COMPASS) (4 builds)
Phaserfpv.com.au
See Site

Misc Parts

HellGate FPV Buzzer - HellGate FPV Buzzer (18 builds)
Buzzer.hellgatefpv.com
See Site

Misc Parts

(LB #31) 4pcs Panasonic FC 1000uF 50v 105C Radial Electrolytic Capacitor Low ESR (6 builds)
Amazon.com
$1.00

Misc Parts

Banggood.com (8 builds)
Banggood.com
See Site
Show stores (6)

Discussion

Sign in to comment

FPVBURG   Jan 20, 2021

Hi ! Greeting from the Netherlands. I have the Cinematic 7 with a captain seat for the GoPro Session 5. Is there a way to get the stl-file in order to print the above mount for the GoPro Hero 8 ?? Would very much appreciate this. BR, Mark.

d'jazz.fpv   Dec 31, 2019

Hi
I have too many wobbles with the DAL Cyclone 7056C tri-blade. On my last 7" quad (iFlight v3) i had the same issue.
Do you know if the HQPROP DURABLE 7X4.5 is a good propeller pour LongRange ?
When i've got problems, i use to fly with the Emax Avan 6".

pete_oz   Jun 10, 2020
1

ooops, sorry for late reply. I have moved on from DAL 7056, the quality control is just rubbish, you never get 4 good props in a set, I don't understand why they always come bent on all directions. I'm now using only GemFan 7040 tri-blades, very happy with those.

BigBeard.fpv   Apr 22, 2020

this frame looks amazing. what kind of flight times gift you get out of this build???

pete_oz   Apr 28, 2020
1

I'm now flying only 4000mAh Li-Ion 6S batteries and on those I get 14 mins in difficult terrain (high altitude mountains with a lot of elevation changes), in a flat easy flight the flight time should be longer

idiotsniff   Feb 02, 2019

Hey, have another question about your mic?
can you tell me how you wired in the mic with smart audio? I've always got static and a bit of prop noise but mostly just noise that is not usable at all. I've seen the schematics for adding a 100uF cap on the smart audio line? I've also got a RaceDayQuads Mach 3 1000mW VTX with mic built in and the audio. I'd figure the designers of that board would add the caps or anyting else needed for it to work without issue? but, I just get the same thing all noise. if the quads just sitting there armed you can here just fine, or if its just plugged into battery and not armed it sounds great too. wonder if you have any suggestions or advice?

thanks for your help,

Joel

Show 1 more comment
Offset   Feb 06, 2019

thanks for all the info I appreciate it. that 100uf cap what voltage is it rated for? that I cannot figure out. and where to get one? would really help. thanks again for your time.

pete_oz   Feb 06, 2019

btw. it's 100nF (not 100uF), I'm in Australia and this is the only one that local shop had in stock (this one is rated to 50V) : https://www.jaycar.com.au/100nf-50vdc-ceramic-capacitors-pack-of-2/p/RC5360

Offset   Feb 06, 2019
1

hi thre, thanks for the link, I figure it was going to be a ceramic circle type, didnt expect it to be rated for 50Volts. sorry was just a typo on the 100nf, I appologize. appreicate your help and your time, I hope you have a good sleep. goodnight

idiotsniff   Feb 02, 2019

hey, wanted to get your opinion on those Cyclone props? they look like they'd be better then the HQ 7" props. what are you thougts?
thanks again,

joel

pete_oz   Feb 06, 2019

those cyclone 7056 props are the best 7inch props, if you get a good sample that is. mine came all bent in all directions so from 5 sets of props I was lucky to pick up 4 props that are good enough to fly, but maybe it was just me unlucky with the package and shipping method. HQ 7035 are not good, very "flexi" and they flatten when you pin them up (high throttle). same goes for Gemfan bi-blades 7042. the only other reasonable prop is HQ bi-blade 7045 but only the carbon version.

idiotsniff   Feb 02, 2019

Nice build dood, I wish these frames were either true X or stretched X frames I'd consider a 7" long build if they did. Wondering if you can tell me if thats a Mic or a Baro? inside that clear bubble with foam out the top beside the Crossfire Nano on the left side. appreciate your time.

pete_oz   Feb 06, 2019

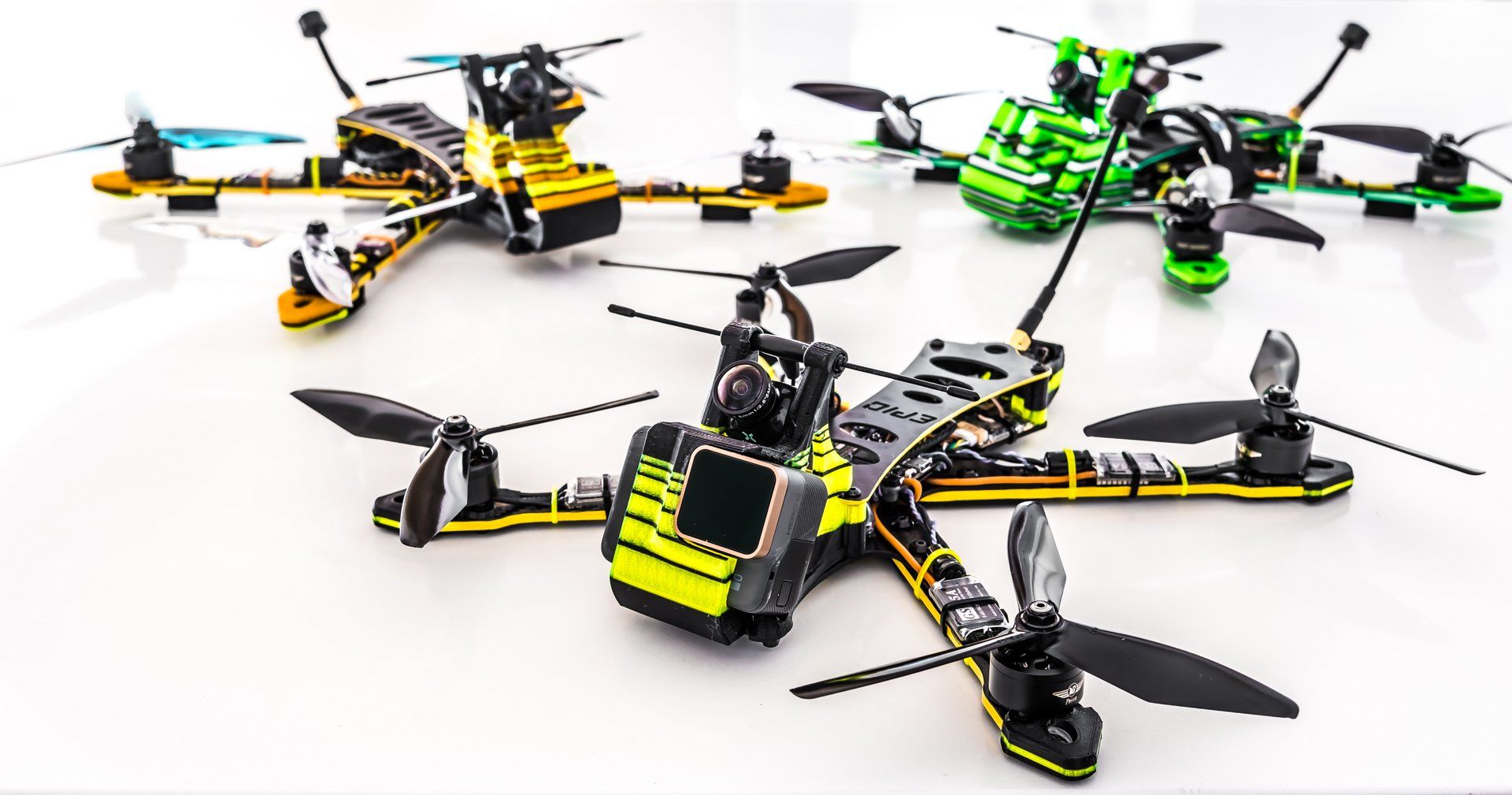

mic questioned answered above. in regards to Epic frames - I normally prefer true X, all my other long range quads and all my 5 inch quads are all true-X, regardless I convinvinced myself to try the Epic and was pleasently surprised with the flight characteristics, I now own 3 Epics (5.5, 6 & 7"). my concern was pitch stability in view of the fact that this is wide-X frame, but in fact it's not that wide, the width is only marginally longer than the length, it's actually very stable on the pitch (and it goes without saying it's very stable on the roll as well). the guy who makes these frames will not make true-X nor stretched-X in my opinion. he is a good guy, very helpful and you know this is a small family business, he works from home and has another job. he has no resources to make and support various differrent versions of the frame.

Jeffmhopkins   Jan 04, 2019
1

Beautiful build! I like the painted carbon.... need to try it out one day.

Can you post a picture with the battery plugged in? I like the idea of the rear battery connector

pete_oz   Jan 05, 2019

I usually feed the antenna between the battery leads to prevent leads getting tangled in props, probably wouldn't happen anyway with short battery leads, but some batteries come with longer cables.

Jeffmhopkins   Jan 05, 2019

that looks pretty decent, thanks
