Frame: MR135U KAIDJU R 3 Carbon Fiber with own handmade top plate! (18,4g)
Propeller: Gemfan Hurricane 75mm 2blade (0,5g)
FC: F4 NOXE V3 F411 Flight Controller 5V 10V BEC OSD Baro 2-6S 20X20mm ((4,5g)
ESC: JHEMCU EM40A BLHELI_S DSHOT600 2-6S 40A 4in1 Brushless ESC 20X20mm (5,6g)
VTX: Foxeer Reaper Nano 5.8G 48CH 350mW (1,2g)
Motor: DroneART 2-3S 1103/7500KV (4,1g)
Camera: RunCam Nano 2 (4,2g)
Receiver: ELRS (1g)

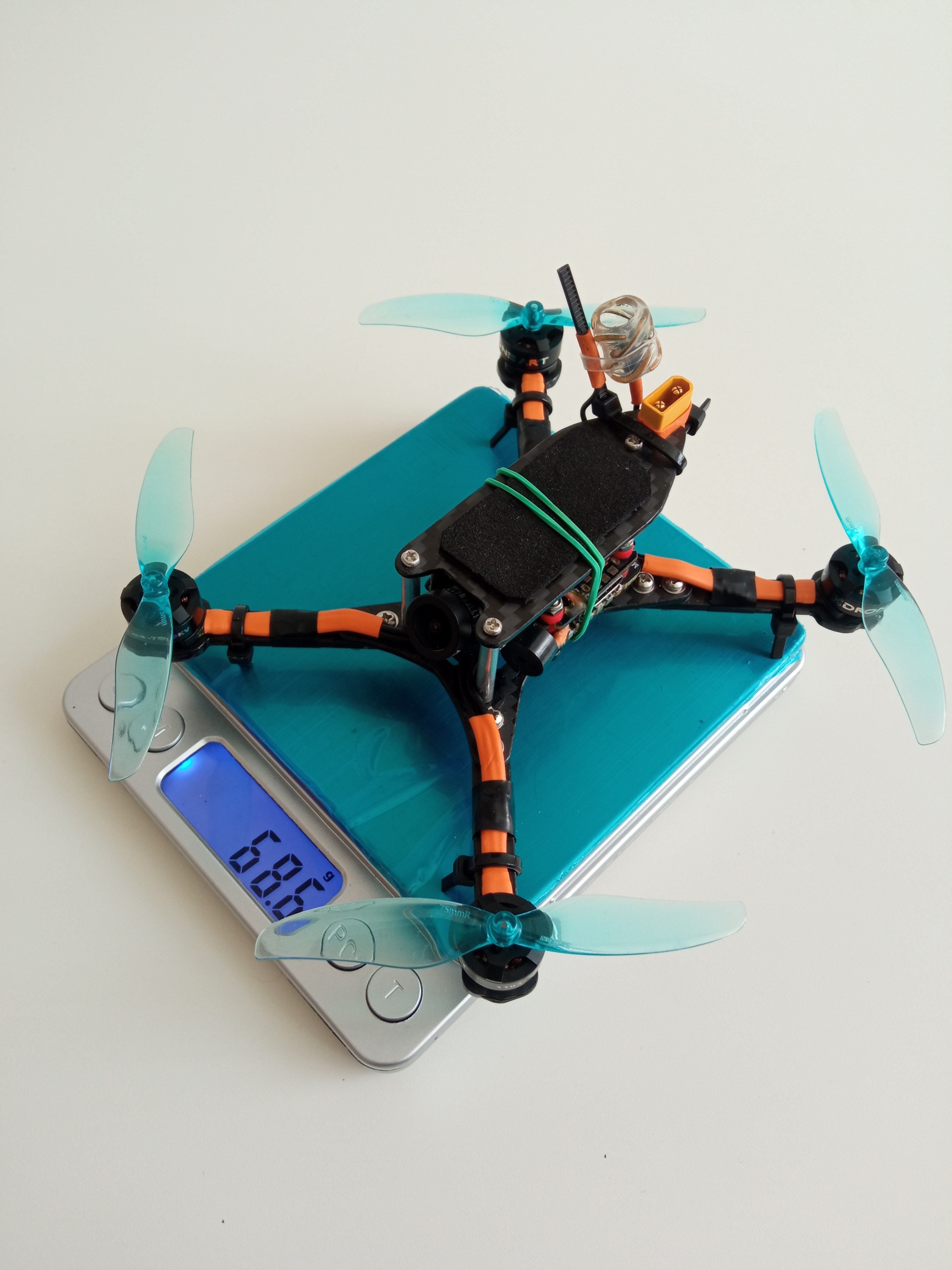

Weight: 69g
Battery: GNB HV 3S 380mah (32g)
Summ weight: around 101g
Fly time: 5minutes
Photos
Part List
Show stores (5)
This looks like a rebuild, did you upgrade the motors and battery from the 2s version of this, or is this a whole 2nd bird?
Also: which do you like more, the 2s or the 3s?
It is not upgrade version 2S is exist if look it the frame is different! 2S has fix arm 3S has changable arm!
light version (2S) is better... this type of frame is not very strong better for light version!
this motor with 3inch+3S this config a litle bit better and lighter: https://rotorbuilds.com/build/30167
