Hyperlow CG

By fmcprogrmr on May 24, 2018

10 14 3

Got the building itch again and thought it is time to build a new quad. Saw a video about the Hyperlow CG frame on youtube and instantly knew that I have to have one too. It is a very well made frame. My Hyperlow is actually a Hyperhigh becasue I raised the top plate by 18mm to fit all my gear the way I wanted. Since I am no racer and enjoy building a bit more than flying, I figurerd I don't need it that low lol. I am also very happy with the Kakute F4 V2 and Tekko 32 4in1 ESC combo, which performes great so far. Got the DJI motors on sale for $9.99 each and 15 prop sets of four for $1.99. Love those motors. The bearings last a very long time in these and the performanc isn't bad.

Photos

Part List

Frame	HYPERLOW CG (37 builds) Hyperlowframes.com	$75.00
Flight Controller	Holybro Kakute F4 AIO V2 Flight Controller (21 builds) Getfpv.com	$40.99
ESCs	Holybro TekkoS 4 in 1 30A BLHeli_S ESC 3-6S Built-in Current Sensor For RC Drone FPV Racing (10 builds) Banggood.com	$43.29
Motors	4 x DJI Snail 2305 Racing Motor Getfpv.com	$75.96
Propellers	DJI Snail 5048S Tri-Blade Quick-Release Propellers (Set of Four) Getfpv.com	$4.99
FPV Camera	RunCam Swift 2 Micro - 2.3mm Lens (282 builds) Getfpv.com	$26.99
FPV Transmitter	Lumenier TX5GS 25-200-500mW 5.8GHz FPV Transmitter w/ BFCMS Control (MMCX) (28 builds) Getfpv.com	$29.99
Antenna	Lumenier Pagoda 2 5.8GHz Antenna (RHCP) (25 builds) Getfpv.com	$8.49
Receiver	FrSky X4RSB 3/16CH Telemetry Receiver with Futaba SBUS 16 Channels Smart Port (32 builds) Amazon.com	$44.99
Batteries	Tattu LiPo Battery Pack 1550mAh 75C 4S 14.8V with XT60 Plug for RC Boat Heli Airplane UAV Drone FPV (42 builds) Amazon.com	$25.99
Radio	TBS Tango (9 builds) Team-blacksheep.com	$249.95
Goggles	Fat Shark Dominator V3 FPV Goggles (63 builds) Getfpv.com	$299.99
Video Receiver	Furious True-D Diversity Receiver Module 5.8GHz System V3 Firmware 3.9 (30 builds) Getfpv.com	$62.99
Misc Parts	Rakon CNC AL XT60 Connector Mount Set Sky-Hero Anakin RED XT60CM-R Amazon.com	$2.99
Radio Module	TBS Crossfire TX LITE - Long Range R/C Transmitter (33 builds) Team-blacksheep.com	$149.95

Show stores (5)

Like Copy Part List Follow fmcprogrmr

Discussion

JordanBlue.fpv Aug 05, 2018

I am working on my first build with the Hyperlow CG... I like your build and there is a couple of things that stand out... the antenna mounting and the plate the battery connector mount is on... where can I find those?

Show 1 more comment

Audacity Jan 14, 2019

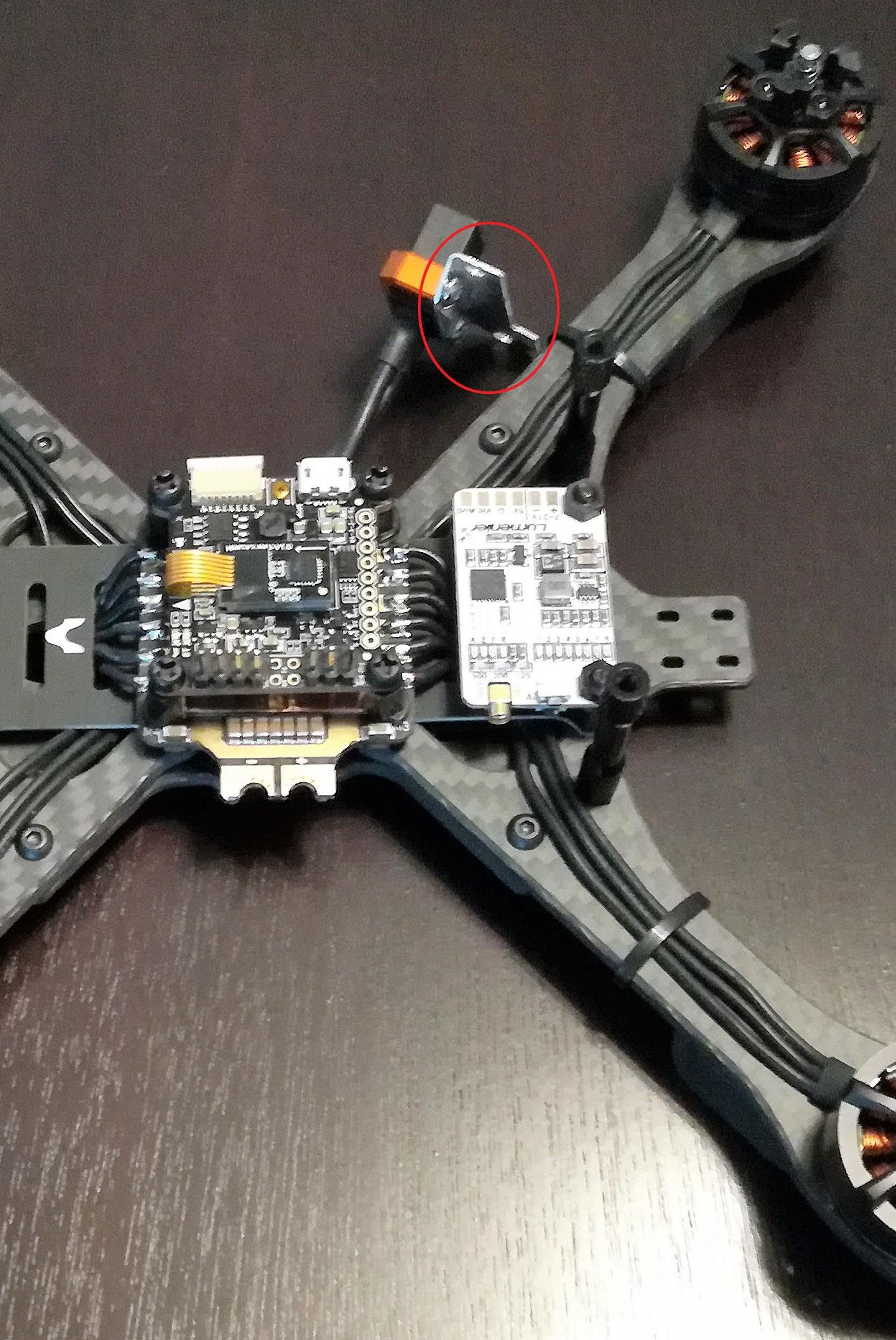

I'm working on a Hyperlow CG build myself, I love the way you mounted your XT-60. I found and purchased the Rakonheli mount, however, I can't find the silver plate you installed the Rakon mount on. Where can I find that plate?

fmcprogrmr Jan 15, 2019

Hi Audacity, I cut the silver plate myself out of a aluminum sheet I purchased from a hobbystore. It's .8mm thick and easy to work with. Can be cut with household scissors and the edges smoothed out with sand paper, then drill four holes for the mounting screws with a dremel or similar.

Audacity Jan 16, 2019

Thanks! Would have never thought of that.

deltrum Aug 16, 2018

Hi, love this build. I am doing something similar for a long range rig. Out of curiosity, what are the length of those stand-offs ? Also, did you use different height standoffs at the front ?

Currently May 25, 2018

Hyperhigh is right lol. :) How are the dji motors and props? I haven't seen them before.

fmcprogrmr May 25, 2018

They are great. The perfomance is amazing. There are DJI 30A racing ESC's as well, but they come with a proprietary firmware, which is a little buggy so I stayed away from them.
