Ocean

By painfpv on Jul 16, 2018

53  7,126  30

I permanentlly lost this quad on 30th of July 2020 in a lake while shooting some water activities. I got too close to the water surface and received a big splash from the boat I was chasing and, while being confident that my conformal coating will pretect it, 30 sec later, it dropped dead in the middle fo the lake. Unfortunatelly I had my GPS disabled and my DVR recording was off (2 rookie mistakes) so I had absolutely no way of locating it although the lake was only 1m deep (with a muddy bottom).

The only time I felt so attached to a multirotor was when we lost our first ever multirotor back in 2012 (a dji f550 called Hexy). This quad was my first longrange quad and the adrenaline it gave me while pushing the limits over mountains was like no other quad I flew. I am glad it ended in glory, taking some great shoots (luckyly I changed the gopro micro sd card just before the last flight) instead of getting dusted and forgotten in a drawer somewhere.

rip my friend :(

original description below

This is almost an identical remake of a quad I droped in the ocean: https://rotorbuilds.com/build/10783

The frame is the one recovered from the bottom of the Ocean. See below video.

My personal records with this setup:
10.05.2019: personal best, went 7.1km out with a gain of 1620m at a maximum altitude of 2500m. see screenshots.
24.03.2019: personal best, went 6.4km out with a gain of 1400m at a maximum altitude of 2400m. see screenshots.

This is my main long range setup which I fly using custom made Lion packs. See the above build for more details.

Relevant videos:



Photos

Part List

Frame

HyperLite FlowRide Freestyle 6 inch Frame
Pirofliprc.com
$46.99

Flight Controller

MATEKSYS FLIGHT CONTROLLER F722-STD (6 builds)
Pirofliprc.com
$38.99

ESCs

Holybro Tekko32 35A 4-in-1 BLHeli32 3-6s ESC (105 builds)
Getfpv.com
$56.99

Motors

4 x TMotor F40 PRO II - 1600KV (35 builds)
Getfpv.com
$99.60

Propellers

4 x RS-3blade-FPV - 6x4.5 Prop Set x4 Orange
Masterairscrew.com
$15.96

FPV Camera

RunCam Micro Eagle 1/1.8" CMOS 800TVL Global WDR 16:9/4:3 Switchable FPV Camera for RC Drone (323 builds)
Banggood.com
$46.11

FPV Transmitter

TBS Unify Pro 5G8 V3 (SMA) (197 builds)
Getfpv.com
See Site

Antenna

TBS Triumph 5.8GHz RHCP FPV Antenna Set (SMA Male) (191 builds)
Getfpv.com
See Site

Receiver

TBS Crossfire Micro RX V2 (287 builds)
Team-blacksheep.com
$34.95

Batteries

6 x Home
Eu.nkon.nl
See Site

Radio

TBS Tango 2 Pro - FPV RC Radio Drone Controller (107 builds)
Team-blacksheep.com
$199.95

Radio

FrSky 2.4G 16CH Taranis X9D Plus Transmitter SPECIAL EDITION w/ M9 Gimbals (48 builds)
Getfpv.com
See Site

Goggles

Fat Shark Dominator HDO 2 FPV Goggles (71 builds)
Getfpv.com
$499.99

Goggles

Fat Shark Dominator V3 FPV Goggles (63 builds)
Getfpv.com
$299.99

HD Camera

GoPro HERO6 Black (9 builds)
Getfpv.com
$399.99

HD Camera

GoPro HERO8 Black Action Camera (9 builds)
Getfpv.com
$399.99

HD Camera

Blackmagic Design Pocket Cinema Camera 4K
Amazon.com
$1,239.95

Misc Parts

2pcs FlyFox LC Filter Module for FPV Racing To Eliminate Video Signal Ripple Interference (3 builds)
Banggood.com
$5.17

Misc Parts

Diatone Mini 2A BEC V2.0 Version 3.3V 5V 12V for RC Drone FPV Racing Multi Rotor (3 builds)
Banggood.com
$2.86

Misc Parts

Dual BN-220 NEO-M8N GPS GLONASS Antenna Module Ublox M8030 TTL Level RC Drone Airplane (17 builds)
Banggood.com
$10.99

Video Receiver

Furious True-D V3.5 Diversity Receiver System Firmware 3.8A (FatShark Attitude Version)SKU: FPV-RX-TRUD3.8A (27 builds)
Furiousfpv.com
$68.00

Video Receiver

TBS Fusion Receiver Module For Goggles (5 builds)
Phaserfpv.com.au
See Site

Radio Module

TBS Crossfire TX (15 builds)
Rc-innovations.es
$229.91
Show stores (10)

Discussion

Sign in to comment

Jodie Froster   Aug 06, 2020

So I have been looking at your "stinger tail" style immortal T mount. It's a fair amount of extra plastic weight, does it save your antenna from getting chopped, or is it just better orientation for range?

Alibi   Nov 11, 2019

Did you use the ND Filters with, or without, HyperSmooth on the Hero7?

Show 2 more comments
painfpv   Mar 18, 2020
1

I only shoot 60fps or higher if I need it. If I shoot a fast moving subject (like a drift car) then I may want to slow down the footage in post so I shoot 4k 60p. In general I shoot 4k 30p because the lower the frame rate the batter the quality of each individual frame (due to limited bitrate). If the sunlight is coming from a particular angle (has to do with optics) the image will be washed out because of flare effects. All you can do is to use good quality ND filter (to minimize the flare effects) and to avoid the angles which cause large amounts of flares (washouts). I was never in a situation where I could lock the shutter. I would lock the shutter if I were to shoot indoor where I can control the light otherwise it would not be practical. Outdoors you would risk having bad exposure for a big part of your footage because of extreme light variation (sun coming in/out form clouds, drone change orientation in relation to the sun ...). From ISO 100 to ISO 800 (which is maximum in my opinion) you only have 3 stops of light which are not enough to compensate for the light difference outdoors even if you have the perfect ND for the respective situation and you will end up either overexposing or underexposing certain areas (unless its very cloudy).

Alibi   Mar 18, 2020

Interesting. So you shot these videos primarily with 4K (4:3) 30 fram rate with auto shutter? You'd just use the ND filters according to your lighting conditions to get the shutter speed relatively close to the right 180 ratio of 1/60? Thanks for all the info it really is helpful!

painfpv   Mar 18, 2020

16:9 not 4:3. The only time I use 4:3 is when I forsee the need to use RSGO in which case I also turn off internal stabilization. But this only applies to Hero6 and more recently to Hero 8 which are the only cameras which work well with RSGO. Not 100% sure about hero8 because I haven't yet tested it personally but I've seen some videos with decent results.

In my opinion RSGO should only be used when shooting in low light where gopro stabilization will fail miserably. The gopro internal stabilization of hero6 (with older fw), hero7 and hero8 are good enough for the majority of the cases. I can also see RSGO being usefull on small cinewhoops which tend to be shaky.

Yes, I change between ND 8, 16 and 32 to try and get the shutter as close as possible to correct ratio. I use the polar pro cinema series NDs which to my knowledge are the best gopro nds on the market. Some of them do cause a little vignette like artefacts in the corners but I don't mind that much since most of the time I end up cropping the corners because I export ultrawide. I also bought the new hero8 NDs from pollar pro but I am yet to test them.

Alibi   Sep 09, 2019

Amazing..amazing videos! After flying my 7" all summer and battling for that perfect tune, I'm convinced 6" props are the way to go for smooth cinematic long range.

painfpv   Mar 06, 2020

7" also works very well if the build is right. see my 7" build for instance, it has nothing special and works amazing.

simogere   Aug 18, 2019

Curiosity: total weight of the build?

And with gopro and battery instead?

painfpv   Aug 29, 2019

see pictures. all weights are there.

Jimskane   Nov 28, 2018

Excellent results with this quad and beautiful build.
What kind of range( thinking of battery,motor,prop, throttle position, speed) are you getting? Do you like the 2306? have you tried others with this kv? I just bought some motors to move fro 5s LR setups to 6s and would very much appreciate some ideas. Thanks!

painfpv   Mar 24, 2019

thanks! sry for the late reply. my combo gives you between 12 and 20min of flight time depending on the flight altitude and style. at a constant speed of 60kmh you will fly for 16-18min with a 3000mah lion pack. to compare the motors with others would require to fly them side by side and see which lasts more. all I know is that I have a 7inch setup with 2507 1850kv avenger motors which to my surprise are not more efficient than these tiny tmotors and I guess is probably due to the KV (1600 vs 1850). until I made this comparison I thought that my tmotor f40 1600kv were too tiny for such a heavy 6inch build but it turned out completly opposite. if you join the longrangehooligans group on facebook and see my posts you will find there complete flights with telemetry where I tested the Lion packs. I have recently build a 4s 5inch long range setup with F60 2150kv which I will soon test.

CaptainPilou   Dec 19, 2018

Hi painfpv, thank you for sharing this build. I've a similar setup here (https://rotorbuilds.com/build/15550) but am a bit disappointed by the video range (up to 2 km with a Unify Pro HV 800mW), and am in the process of exploring different ways to optimize it (e.g. placement of the VTX as far to the FC as possible). I was wondering if there is a specific reason for the placement of your video antenna, on the side, rather than on the back of the quad. Is it because of the limited length of the pigtail to the VTX or is there any other better reason? Thanks a lot for your feedback.

painfpv   Mar 24, 2019

sorry for the late reply but for what is worth here are my thoughts: I flew at 4km horizontal distance and 1.2km vertical distance with an 800mW Unify and didn't have any issues so you shouldn't either. I keep my VTX antenna on a side because it was easier for me to mount it that way but having it on the back is even better imo. assuming you don't have any silly technical issues on your quad (like bad antenna wire connections ...) I think you should check things on the receiver side. make sure you are using a good receiver module and good antennas. I currently fly with two direction antennas (for long range missions): a trueRC x2-air and a cheap triple feed patch. also make sure you antenna are oriented towards the area you are flying, tilting you head by 15degrees might make a big difference. when I fly up on a mountain I move my head while flying untill I find the best video quality and then freeze :)

KaityLynn   Dec 23, 2018
1

What an awesome build and great videos!

mixa   Jul 31, 2018

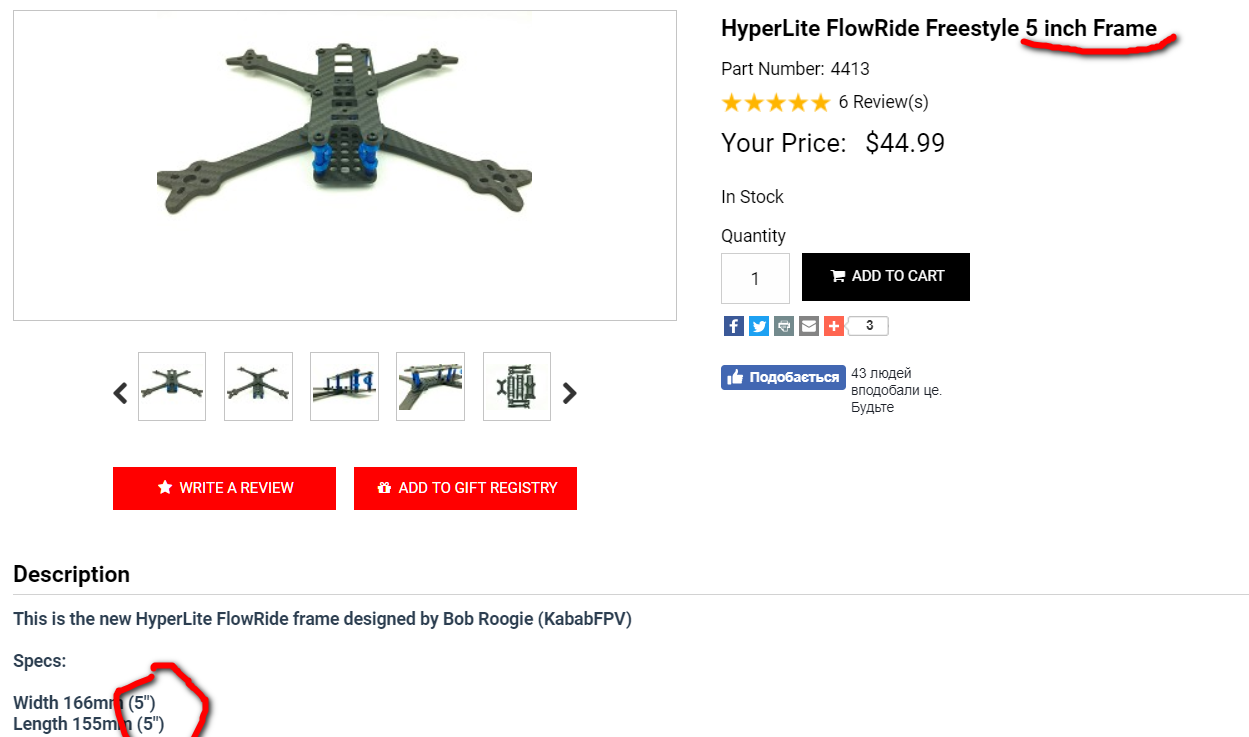

Is is ok to install 6" props into this 5" quad?

Show 2 more comments
painfpv   Aug 12, 2018

this is a 6inch frame by default

mixa   Aug 12, 2018

hm, strange...

painfpv   Aug 12, 2018

it seems there are 2 versions of it, here is the 6inch version: http://pirofliprc.com/HyperLite-FlowRide-Freestyle-6-inch-Frame_p_4459.html

LowkeyCamo   Aug 03, 2018

Nice build. Where did you get the antenna mount?

painfpv   Aug 12, 2018

custom built by a friend

Quadxl   Jul 26, 2018

Amazing Video!!
How much time do you get with that battery pack?

Show 2 more comments
painfpv   Jul 28, 2018
Quadxl   Jul 29, 2018

Thanks. Those videos are with 6S?

painfpv   Aug 01, 2018

Yes, the ionian sea one also has a few shots done with a 5.5inch 4-5s
