Smooooth Operator

By RENOV8R on Sep 04, 2018

9  563  6

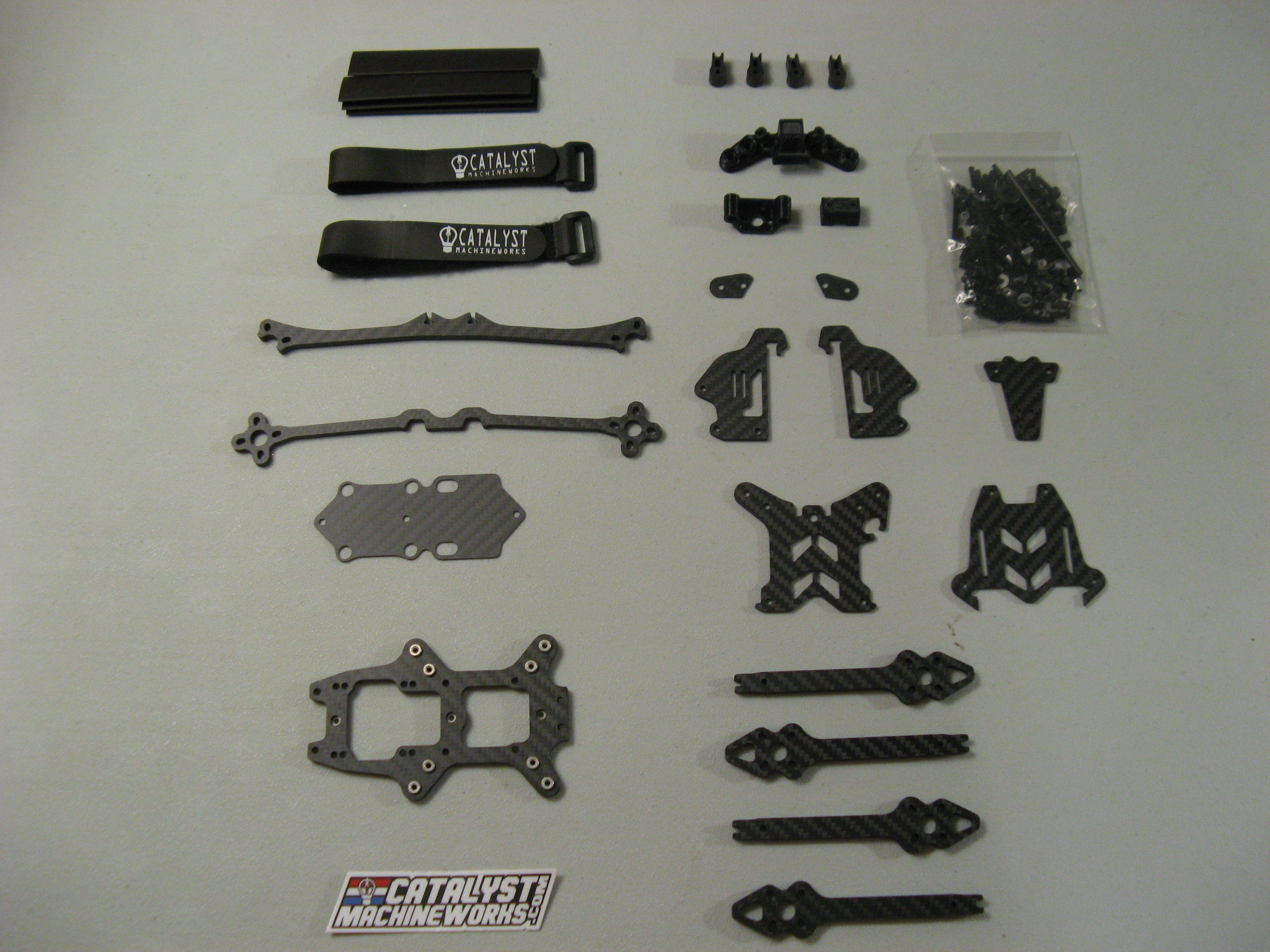

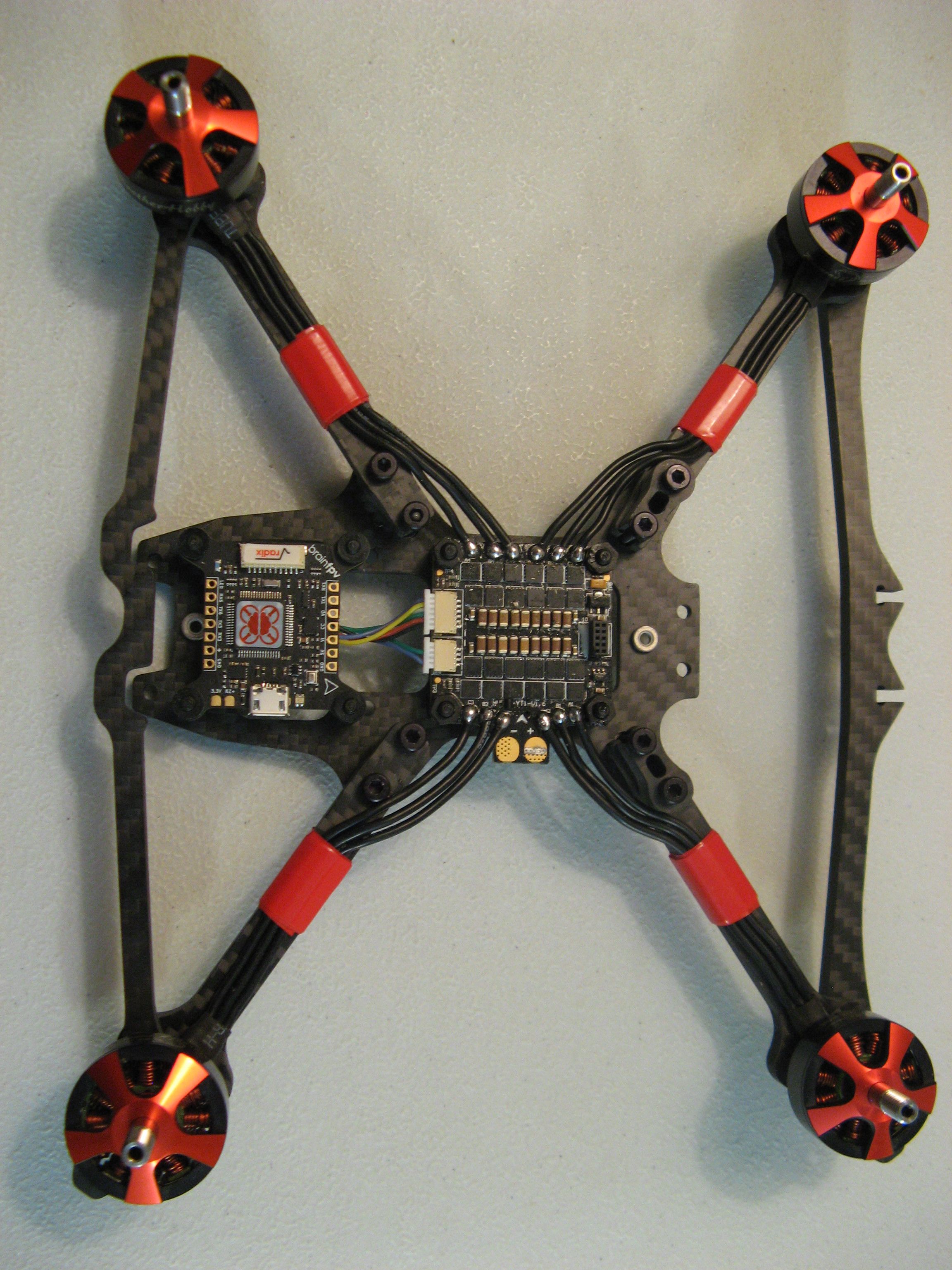

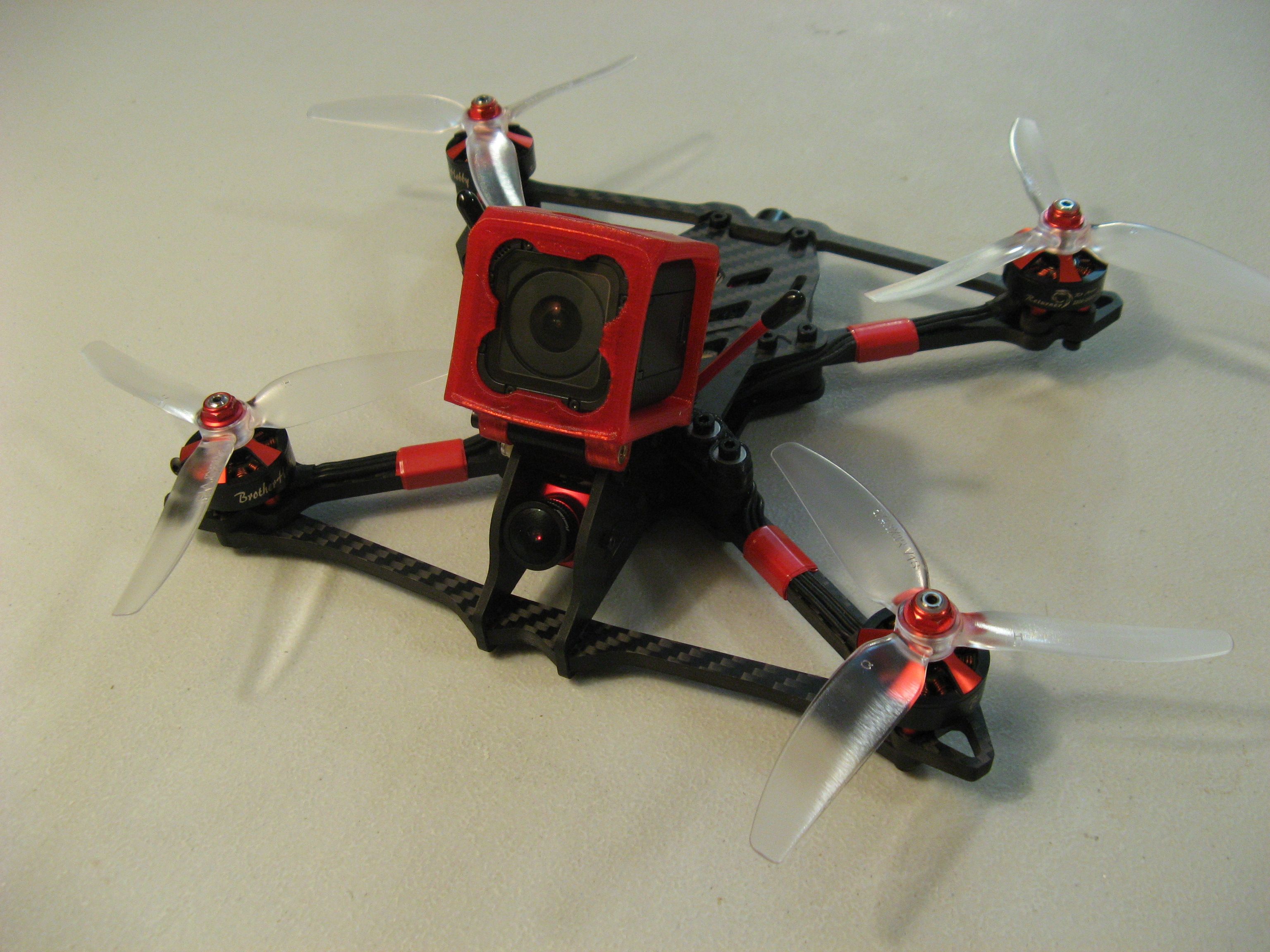

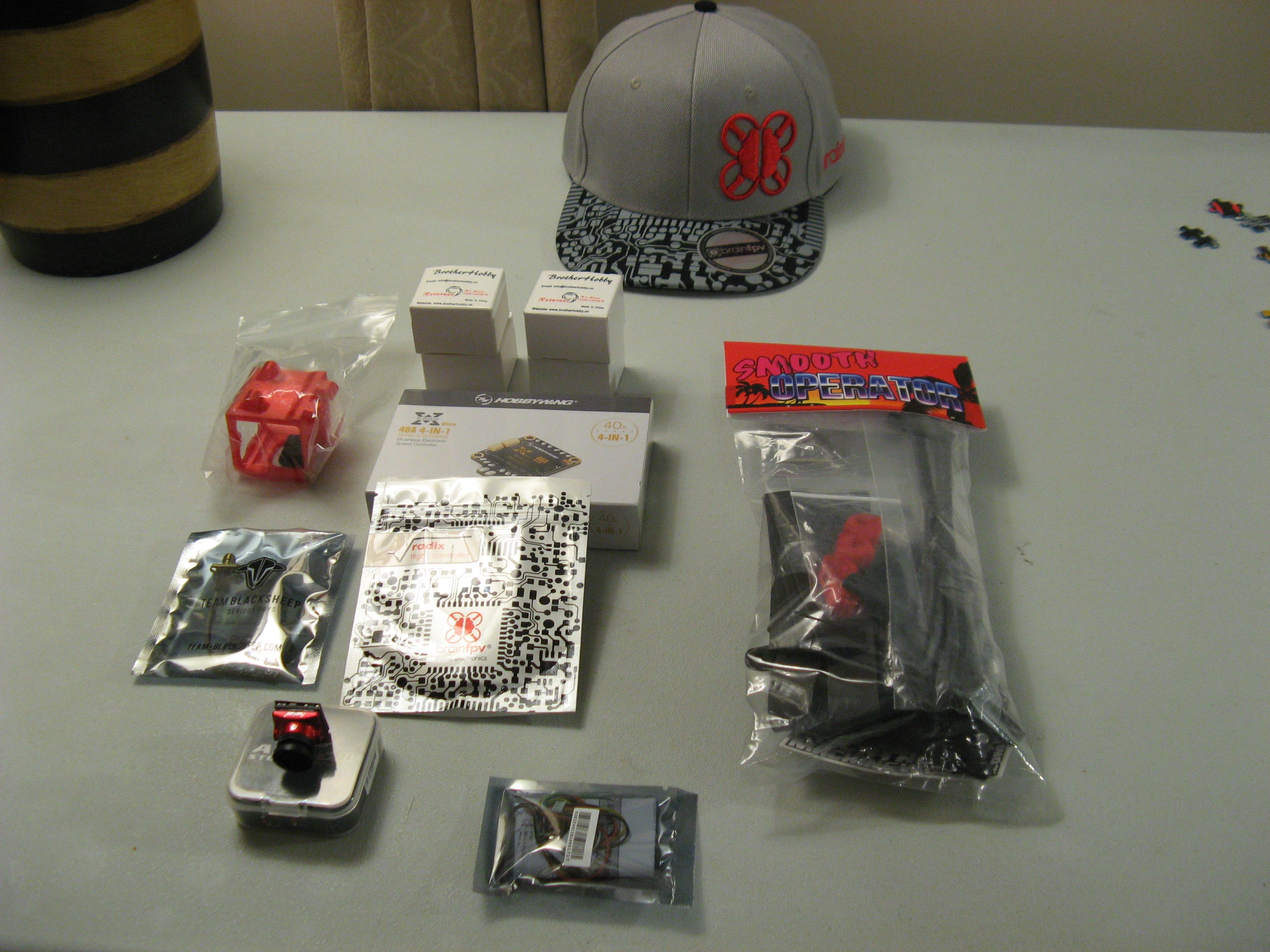

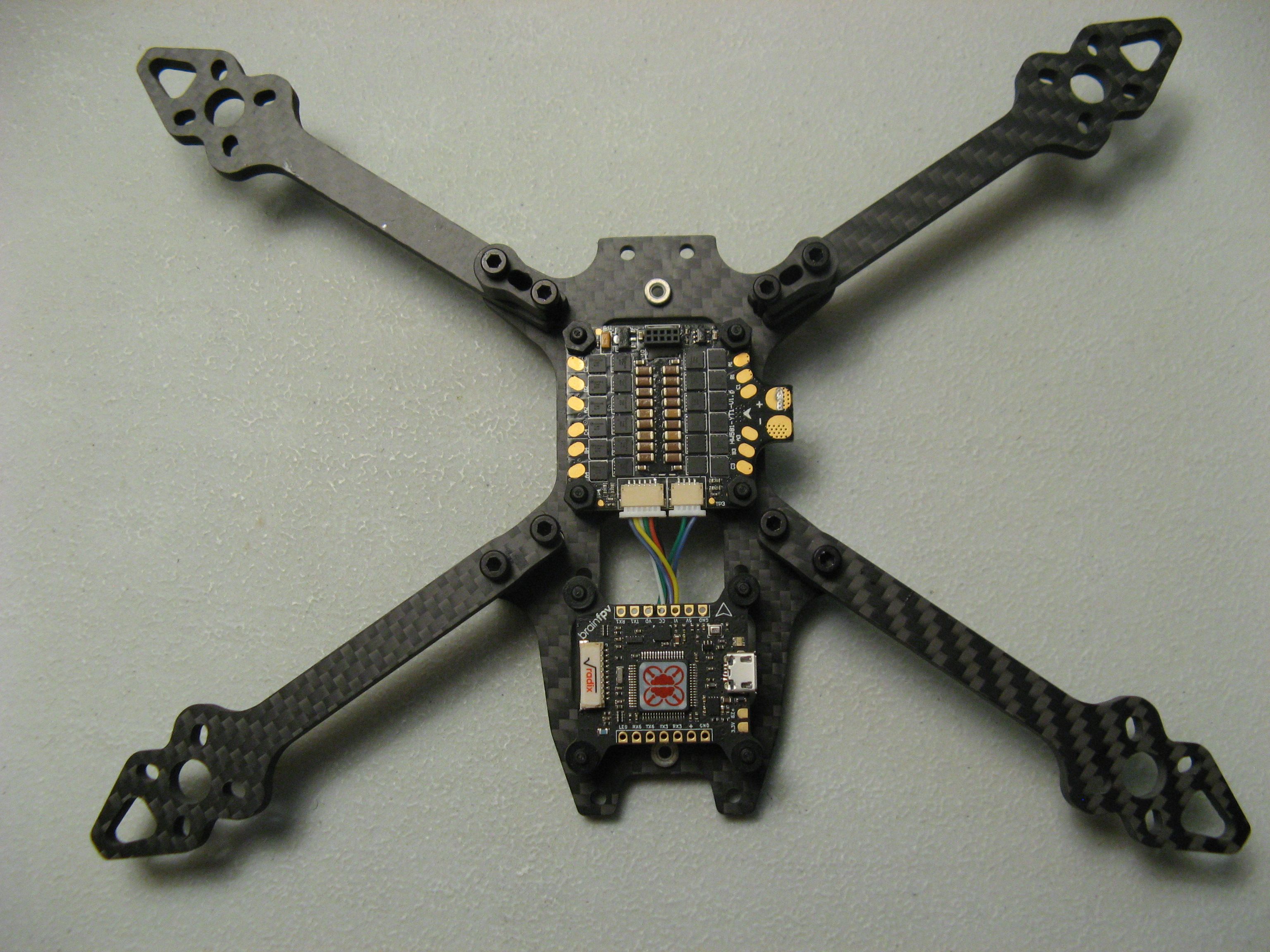

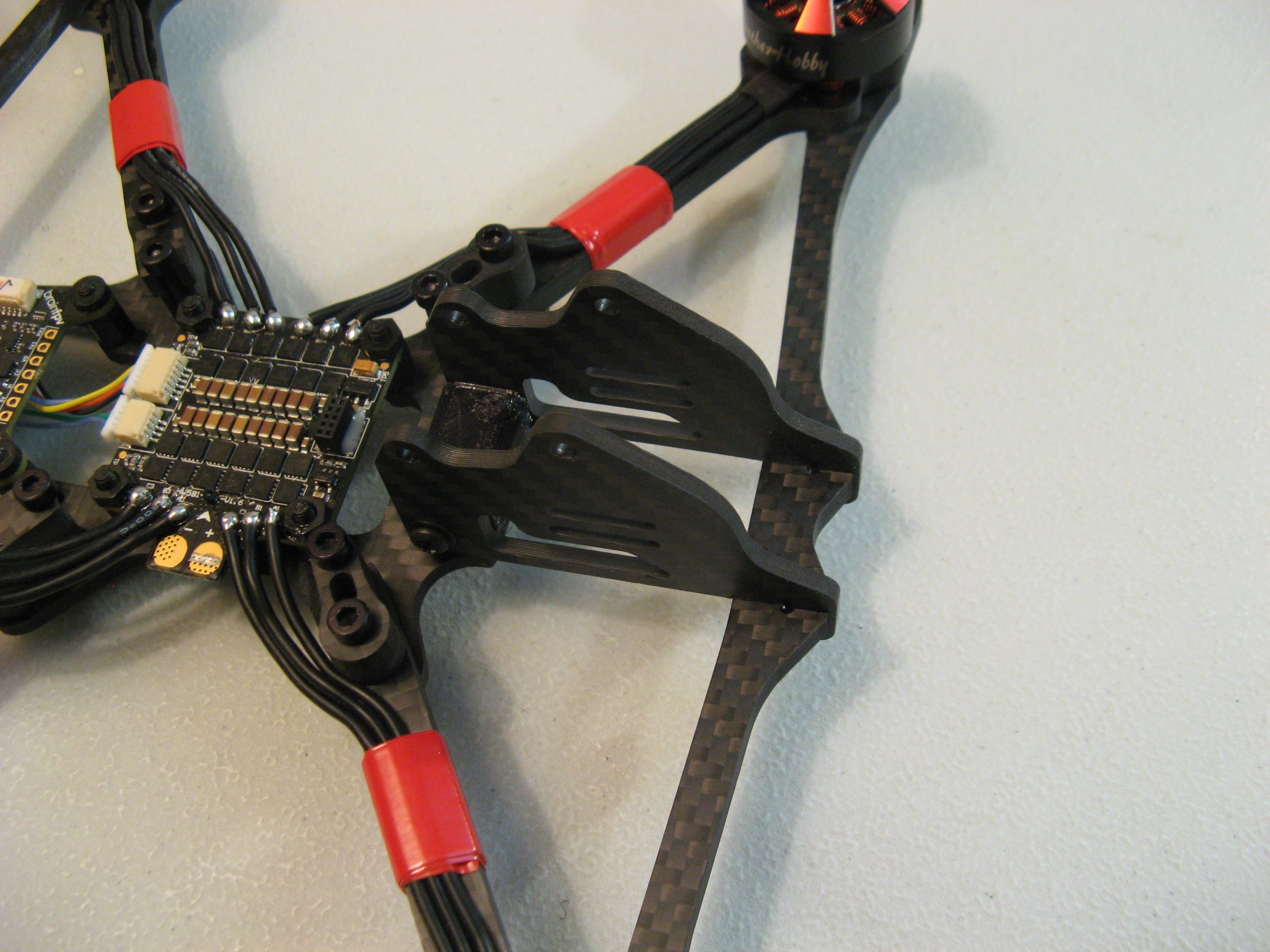

Having built quite few race quads, I decided I needed a freestyle quad. The Smooth Operator really stood out from the crowd with it's unique design features with it's slammed 13mm deck, side-by-side ESC/FC mounting, raised rear arms, impact resistance for the front arms and HD camera mount. The sheer volume of the parts is a little overwhelming when you open the package but Catalyst has supplied an indepth 2 hour build video. I certainly wouldn't recommend this frame to a beginner, but for more experienced builders with some very careful pre-build planning, this build goes together quite nicely. Bottom line, this is one sexy little beast

Photos

Part List

Frame

Smooth Operator 5 Inch - (CAMERA MOUNT SOLD SEPARATE) (13 builds)
Catalystmachineworks.com
$99.99

Flight Controller

BrainFPV RADIX Flight Controller (Custom Graphical OSD, Baro, Stackable) (117 builds)
Getfpv.com
$55.99

ESCs

Hobbywing XRotor 40a 4-in-1 ESC 4in1 - DShot 600 (142 builds)
Racedayquads.com
$59.99

Motors

Brotherhobby Deadpool Returner R5 2306 2450kv Brushless Motor (9 builds)
Getfpv.com
$23.39

Propellers

DAL CYCLONE T5040C Propeller - Crystal Red (79 builds)
Getfpv.com
$2.99

FPV Camera

RunCam Micro Eagle 800TVL 16:9/4:3 NTSC/PAL CMOS FPV Camera - Red (323 builds)
Racedayquads.com
$44.99

FPV Transmitter

TBS Unify Pro 5G8 HV (SMA) (596 builds)
Getfpv.com
See Site

Antenna

Lumenier AXII Stubby 5.8GHz Antenna (RHCP) (232 builds)
Getfpv.com
$14.99

Receiver

FrSky R-XSR 2.4GHz Micro ReceiverDefault Title (937 builds)
Racedayquads.com
$21.99

Batteries

RDQ Series 14.8V 4S 1300mAh 100C LiPo Battery - XT60 (88 builds)
Racedayquads.com
$20.49

Radio

FrSky Taranis X9D Plus 2.4GHz ACCST Radio & X8R Combo w/ case (Mode 2) (52 builds)
Getfpv.com
$244.99

Goggles

FXT VIPER V2 5.8GHz Diversity FPV Goggles w/ DVR (14 builds)
Getfpv.com
See Site

HD Camera

Caddx Turtle V2 Micro FPV Camera / 20x20 1080P 60 FPS HD DVR - Black (54 builds)
Racedayquads.com
$51.99

HD Camera

GoPro HERO5 Session (303 builds)
Getfpv.com
$199.99

Misc Parts

Racewire - PCB Motor Wires (6x Full Size) (21 builds)
Tinysleds.com
$6.00

Misc Parts

ViFly Finder 2 Buzzer - Lost Drone Finder/Locater/Alarm (174 builds)
Racedayquads.com
$14.99
Show stores (4)

Discussion

Sign in to comment

RENOV8R   Nov 01, 2018
1

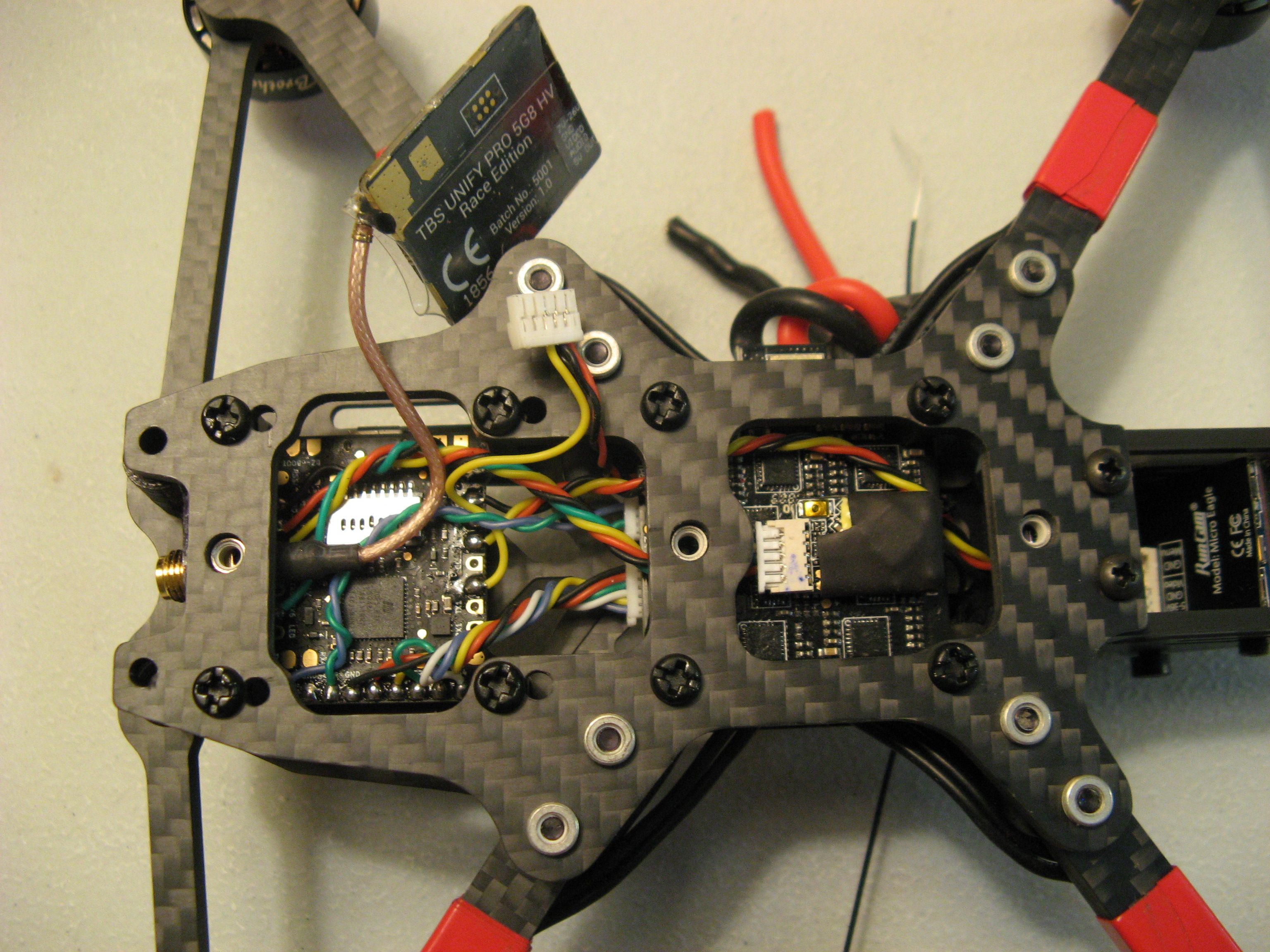

Absolutely, the video makes this much easier to build. As it's not the typical electronics layout, this is what can be a little complicated. Like I said, preplanning is important, especially board orientation.

evpdimi   Oct 31, 2018

Noob question: What about this frame makes it not worthy of recommending to a beginner? I am looking to get into FPV, and I have done a lot of practice in Liftoff, and a good bit of research on builds. I have a decent budget of $400, and this frame looks like a cool option! I have heard good things about its design and durability. It seems that Catalyst Machineworks has a tutorial video on how to assemble the frame. If I get electronics that are compatible with the frame's design, what would make it difficult to build on? It seems that most beginner builds use cheaper frames, and I wouldn't mind getting a pricier frame like this one if it means that I'll have a solid freestyle drone!

Cheredanine   Sep 06, 2018

you didnt use the racewire in the end? i used the mini on mine, the normal were a bit large. tried t-motor 5143 props?

RENOV8R   Sep 06, 2018

No, like you said the RaceWire is just a bit too big for these arms. Ordering some of the mini version with LEDs today along with a Hellgate buzzer. Got one of the new Vifly buzzers last night but it's just a bit too big for this build as well. And thanks, I'll try some of those T-Motor props

Cheredanine   Sep 06, 2018

yeah i had a vifly in my basket but the size was worying me, no hellgate suppliers in the UK :(

RENOV8R   Sep 04, 2018

Having built quite few race quads, I decided I needed a freestyle quad. The Smooth Operator really stood out from the crowd with it's unique design features with it's slammed 13mm deck, side-by-side ESC/FC mounting, raised rear arms, impact resistance for the front arms and HD camera mount. The sheer volume of the parts is a little overwhelming when you open the package but Catalyst has supplied an indepth 2 hour build video. I certainly wouldn't recommend this frame to a beginner, but for more experienced builders with some very careful pre-build planning, this build goes together quite nicely. Bottom line, this is one sexy little beast
