TransTEC Freedom V2 with Yi 4K

By KuriOSS on May 14, 2019

10  586  12

Introduction

This is 2nd build for freestyle frame which is called TransTEC Freedom V2 (5inch). According to the TracsTEC Spec. the upper shell is made by CNC 7075 Aviation Aluminium-alloy. The point of attraction is the arms thinkness which is 6 mm. It looks super soild.

Goal and Parts Selection

Recently, i have experienced bad flying with not enough strong statement. For example, the screw or nut or some parts(broken and cracked plate, arm) could generate some jello or vibration or noise. The goal of this quad was to build , a frame must be strong enough in machanical properties like as a frame of racing car.

Frame & Build Tip

All parts are not finished the edge of carbon by some poymer material. The edge has not cutted so i finished by my hand with sand paper.

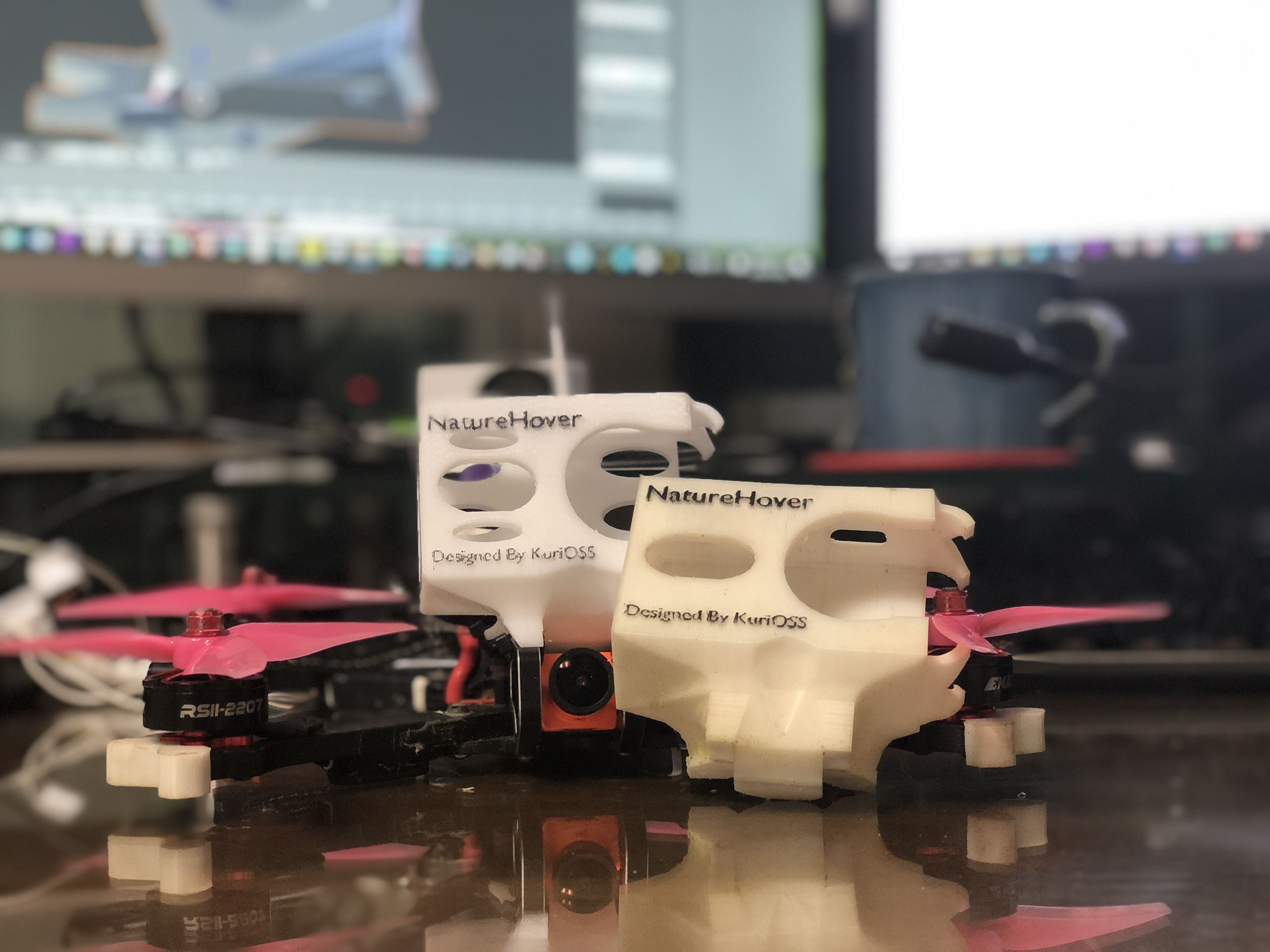

The arm thickness is over 6mm. Actually, two of them are 6 mm and the other two of them are 6.2mm. I used 6.2mm arm for front arm. bottum plate is 3 mm. it super strong enough with arm. The screws are something is supplied 10.9 and 12.9 class. it's looking good. The space is not enough for parts so i recommed to use single ESC. but i haven't got the single ESC. I just used 4 in 1 ESC. My HD cam is Yi 4K and i desinged HD cam mount for Yi 4k which is fixed with 30 mm screw at the front rear is hold the cable tie.

Flight Test

I've tested all of default setting with butterflight firmware i haven't changed PID and filtering. It's super smooth and flying like a clean now. In the future, i'd like to record flight video wwith this quad. i really expected.

AUW(all-up weight) is 705 g with battery, propeller and action cam.

I'm going to record the drift car chasing video with this drone and the other one which is Puda D240 frame. It's also great frame.

Photos

Part List

Frame

Freedom V2_5 inches - TransTEC Hobby
Transtechobby.com
See Site

Flight Controller

HelioRC SPRING IMU-F Flight Controller : 아재드론 (2 builds)
Smartstore.naver.com
$49.00

ESCs

Holybro Tekko32 35A 4-in-1 BLHeli32 3-6s ESC (104 builds)
Getfpv.com
$56.99

Motors

4pc Emax RSII 2207 Brushless Motor 3-6S 1600/2300/2550kv Motors for FPV Quadcopter (2 builds)
Aliexpress.com
$62.65

Propellers

20pcs/10pairs Gemfan Flash 5149 5 inch tri-blade 3 blade cw ccw plastic propeller compatible T-motor for FPV Racing Drone
Aliexpress.com
$7.56

FPV Camera

RunCam Micro Eagle 800TVL FPV Camera NTSC / PAL 16:9 / 4:3 Switchable 1/1.8" CMOS Sensor 5-36V for FPV Quadcopter Racing Drone
Aliexpress.com
See Site

FPV Transmitter

Original FrSky 2.4G ACCST Taranis X9D Plus Transmitter With X8R Receiver (44 builds)
Banggood.com
$219.00

FPV Transmitter

AKK FX2 Ultimate Mini International 5.8GHz 40CH 25mW/200mW/600mW/1000mW Switchable FPV Transmitter
Banggood.com
$19.90

Antenna

2pcs Foxeer Lollipop 2 V2 Antenna 5.8G 2.3Dbi TX RX RHCP FPV SMA RPSMA Straight/Angle MMCX Antenna FOXEER ClearTX Transmitter
Aliexpress.com
$10.99

Receiver

FrSky R9 Slim+ R9 Slim plus Receiver Optimized 900MHz long range receiver with 2 detachable antennas in stock (3 builds)
Aliexpress.com
$30.14

Batteries

Infinity 1500Mah 4S 110C Race Spec lipo Battery (3 builds)
Pyrodrone.com
$20.99

Radio

Original FrSky 2.4G 16CH ACCST Taranis X9D Plus Transmitter Carton Package for RC Drone FPV Racing (44 builds)
Banggood.com
$268.74

Goggles

Fatshark Dominator HD3 Core 3D FPV Goggles with HDMI DVR Support Head Tracker (66 builds)
Banggood.com
$399.00

HD Camera

YI 4K Action and Sports Camera, 4K/30fps Video 12MP Raw Image with EIS, Live Stream, Voice Control - Black
Amazon.com
$109.95

Video Receiver

Eachine PRO58 RX Diversity 40CH 5.8G OLED SCAN VRX FPV Receiver for FatShark Goggles (28 builds)
Banggood.com
$29.23

Radio Module

FrSky R9M 900MHz Long Range Transmitter Module for FrSky R9 Series (67 builds)
Banggood.com
$61.80

Battery Charger

Turnigy Quad 4x6S Lithium Polymer Charger 400W DC Only
Hobbyking.com
$78.31

Soldering Iron

Soldering Station with Adjustable Heat Range with EU Plug
Hobbyking.com
$16.96
Show stores (8)

Discussion

Sign in to comment

___anvy___   Jan 04, 2020

Hi KuriOSS, could you please share 3D files of Yi camera holder? I'm also courious about the lens filter, do you have a link to it?
Thanks a lot!

KuriOSS   Jan 04, 2020

i sent the e-mail directly! thanks, mate! updated new version has been sent

___anvy___   Jan 07, 2020

Thanks mate. Could you tell me what printing material did you use? Thanks

KuriOSS   Jan 07, 2020

TPU filaments are used. i'd asked about machanical properties(tensile strength, melting poiont, density, elongation at break flexural modules) to seller(Korea). they can't answer about it. they said it just TPU, lol. Anyway, It's pretty good.

Mark Angel   Aug 23, 2019
1

This is HOT!! I've just build a transtec myself! Would you mind sharing your 3D STL files? Especially the gopro mount, this frame really need a special mount. I've been scouring all over the net for this, and yours look perfect!

KuriOSS   Aug 25, 2019

Yes, it is really cool design and cheap. Also, frame is super strong enough. I really like it. I have sent the msg for you. please contact me when you can't get the msg for STL files. Have a fun!

eduenlamer   May 19, 2019
1

Oh my god this is beautiful! Well done!
I'm super impressed with the TransTec frames. They are nearly indestructable and fly really good!

KuriOSS   May 19, 2019

Yes, it is beatiful design. I just tested it now it is still good enough!

benjo   May 16, 2019
1

6mm Carbon!!! I've got a TransTec Frog and its indestructible. But this thing takes it to the next level.
Love the build.

KuriOSS   May 16, 2019

Yes, it is. I tseted it shortly today. No need too much filteration so that it flight performance is response than bad condition frame. Recently, i really interested in machanical property of frame. thanks for replying and giving like button! Have a good day!

Jodie Froster   May 14, 2019
1

What a sexy frame! I have looked at that one on banggood for weeks now, it looks like a great design. I like your layout, and i'm impressed with your antenna mod, how is it performing?
Great build!

KuriOSS   May 15, 2019

Thank you for your compliment! The flight is soo much smooth and easy to control. It could be my main quad after finishing setting(PID and filteration). This frame feels like strength of mechanical. i have tried to bend the the end of arm to the other arm but it can not be bent. super super strong enough. Disadvantage is limited space of parts so i highly recommend to use individual ESC.
