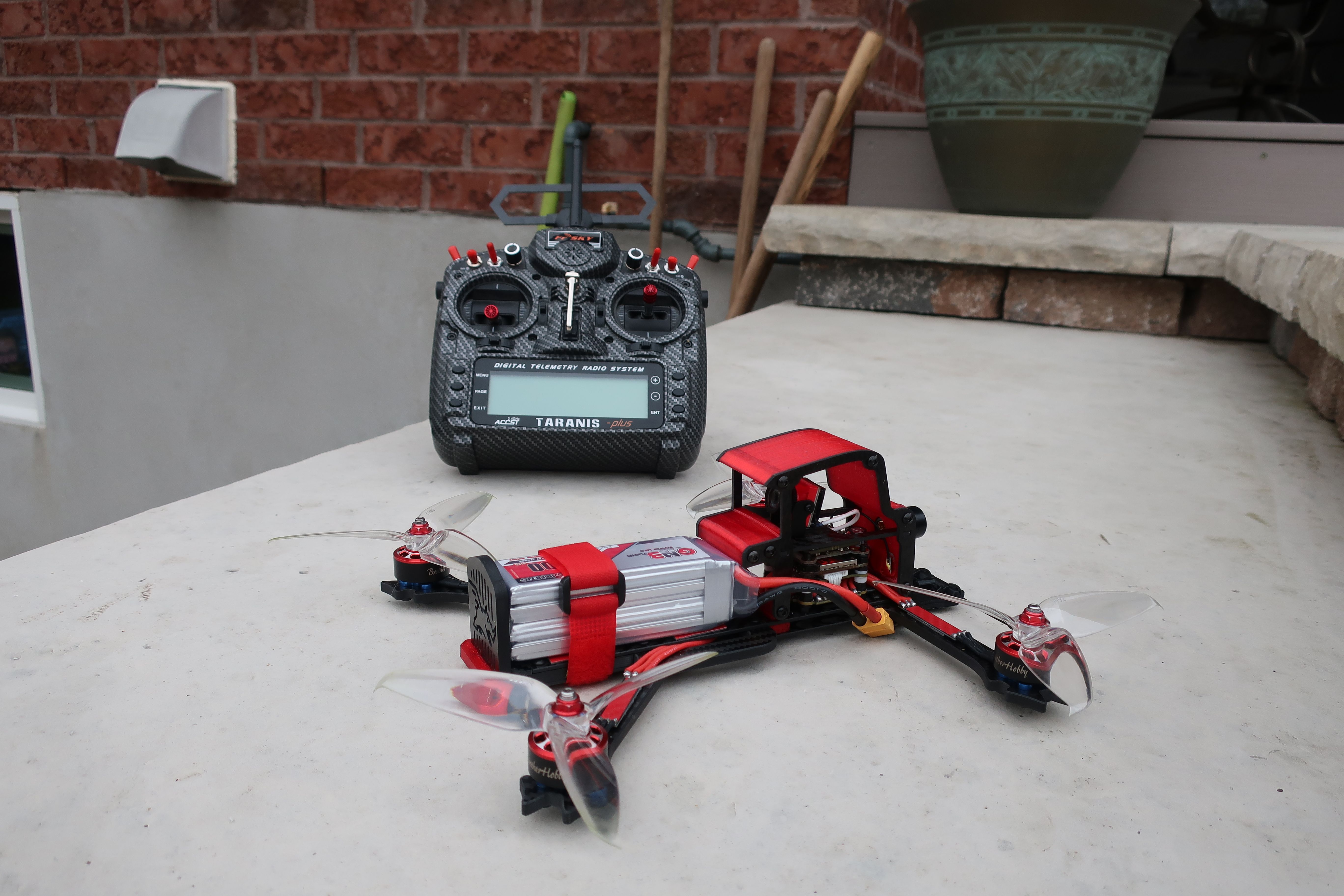

I have been looking for an excuse to build a 6S and the F7 I had, then I found this CRAZY thing. Not sure it will fly, but I will let you know...
Overall build was OK. Biggest pain was motor wires for front were not long enough and figuring a good way to run battery wires because they would be in line of sight for camera if you run over the top. Looking for a slimmer longer battery.
Lot of space for stack since I made a mount for the camera on the top of the cab.
Wasn't cheap, but it was a cool build.
I am selling this build. $300.00 . It has never been flown! LMK if interested.
Frame |
Flynoceros RatKwad Frame
(3 builds)
Theflynoshop.com
|
$139.99 |
Flight Controller |
Holybro Kakute F7 V1.5 + Tekko32 F3 Metal 65A 4-in-1 ESC + Atlatl HV V2 Combo
Getfpv.com
|
$143.99 |
Motors |
4 x Lumenier 2207-11 1750KV JohnnyFPV V2 Motor
(3 builds)
Getfpv.com
|
$103.96 |
Propellers |
DAL Cyclone T5047C Propeller (Set of 12)
(3 builds)
Getfpv.com
|
$5.94 |
FPV Camera |
Foxeer Mix 2 1080P 60fps HD FPV Camera
(2 builds)
Getfpv.com
|
$68.99 |
Receiver |
FrSky R-XSR 2.4GHz 16CH ACCESS/ACCST Micro Receiver w/ S-Bus & CPPM
(937 builds)
Getfpv.com
|
See Site |
Batteries |
TATTU 1300mAh 6S1P 75C 22.2V Lipo Battery Pack with XT60 plug
(2 builds)
Getfpv.com
|
$29.99 |
Misc Parts |
Adafruit NeoPixel Ring - 12 x 5050 RGB LED with Integrated Drivers [ADA1643]
Amazon.com
|
$7.50 |
AirbladeUAV has done it again and this time they've brought long range to the 5" class! Based on the popular Transformer Mini, the new Transformer 5" Ultralight adopts a lot of the same design philosophies with larger props and more payload capacity. It can fly upwards of 20 minutes on a 4 cell Li-Ion battery pack and in ideal conditions it's got a range of over 4 to 5 miles. In this guide I'll walk..
Read moreWith the release of the DJI FPV Drone cinematic FPV has become a lot more accessible, but you certainly don't want to crash a $750 drone! The QAV-CINE Freybott is a compact, lightweight cinematic FPV drone that can take a hit and keep going. It's a lot safer to fly indoors and around people. With a naked GoPro or the SMO 4k you can capture some great stabilized footage. In this guide I'll show you..
Read more
How did noone comment on this thing?? it's beautiful!
They're all awe struck and speechless. I've built one and working on a second and I can verify it flies quite well.
nice! how's the crashability and balance? i guess it's not much of a basher but I'm curious
Pretty sure if you crash, it is going to hurt.. Will definetly lose the front grill.. Arms are pretty thick. Not much protection for the camera. I let you know for sure when I find my next tree.
