Trashy #1

By Trashyfpv on Aug 22, 2019

2 183 4

My first build ever, I'm new here so go easy on me. Feeling a bit trashy.

Spent a lot of time taking this guy apart, and getting everything situated in the frame properly.
Didn't realize how tight of a frame this TransTEC Frog Lite 218mm would be, definitely looking forward to a frame with more space in my next build!

Either way, it flies great, and I'm loving my foray into this awesome hobby.

Cheers!

If you feel like following along with my progress, follow me on instagram: @trashyfpv

Photos

Part List

Frame	TransTEC Frog Lite 218mm Carbon Fiber 4mm Arm X Frame DIY Frame Kit RC Drone FPV Racing Multi Rotor (42 builds) Banggood.com	$28.99
Flight Controller	DALRC F405 AIO Betaflight F4 Flight Controller MCU STM32F405 MPU6000 OSD 9V/1.5A 5V/2A BEC 200A PDB (5 builds) Banggood.com	$42.84
ESCs	4 x Spedix ES30 HV 3-6S 30A ESCDefault Title (154 builds) Racedayquads.com	$47.80
Motors	4X Racerstar 2207 BR2207S Green Edition 1600KV 3-6S Brushless Motor For RC Drone FPV Racing Frame (4 builds) Banggood.com	$34.99
Propellers	DAL 5x4.6 - 3 Blade, Black Cyclone Propeller - T5046C (Set of 4) (391 builds) Getfpv.com	$1.99
FPV Camera	Foxeer Monster Mini Pro 1/2.9" CMOS 1.8/2.5mm 1200TVL 16:9 PAL/NTSC Switchable WDR FPV Camera (14 builds) Banggood.com	$26.67
FPV Transmitter	Eachine TX526 5.8G 40CH 25MW/200MW/600MW Switchable AV Wireless FPV Transmitter RP-SMA Female (120 builds) Banggood.com	$12.92
Antenna	Foxeer Pagoda Pro 5.8GHz Long SMA Antenna - RHCP - Black (33 builds) Racedayquads.com	$9.99
Receiver	Spektrum - DSMX Quad Race Receiver with Diversity (SPM4648) (108 builds) Readymaderc.com	$24.99
Batteries	GOLDBAT 1500mAh 4S 100C 14.8V Lipo Battery Softcase Pack with XT60 Plug for RC Boat Heli Airplane UAV Drone FPV - 2 Pack (7 builds) Amazon.com	$31.99

Show stores (5)

Like Copy Part List Follow Trashyfpv

Discussion

Tanner1998 Dec 24, 2019

please help im on my first build as well im using this same fc and reciever and i cannot get the thing to register my inputs what pad did you solder the reciever to? and what is your betaflight setup? the bars arent moving in my reciever tab and i cant figure it out!

Trashyfpv Dec 25, 2019

what kind of receiver are you using? Ill take a look at my board to see what UARTs im using for my DSMX.

Tanner1998 Dec 25, 2019

spm4649t

Trashyfpv Dec 25, 2019

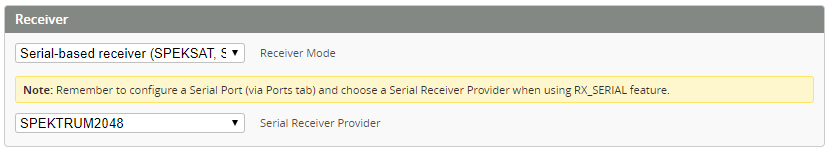

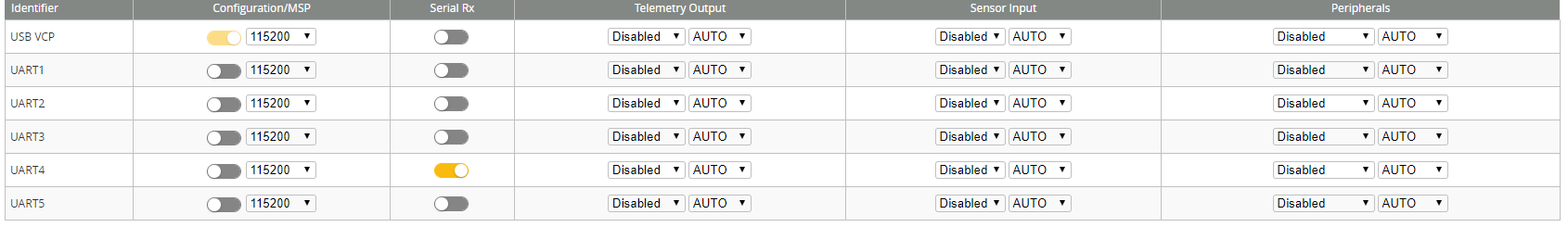

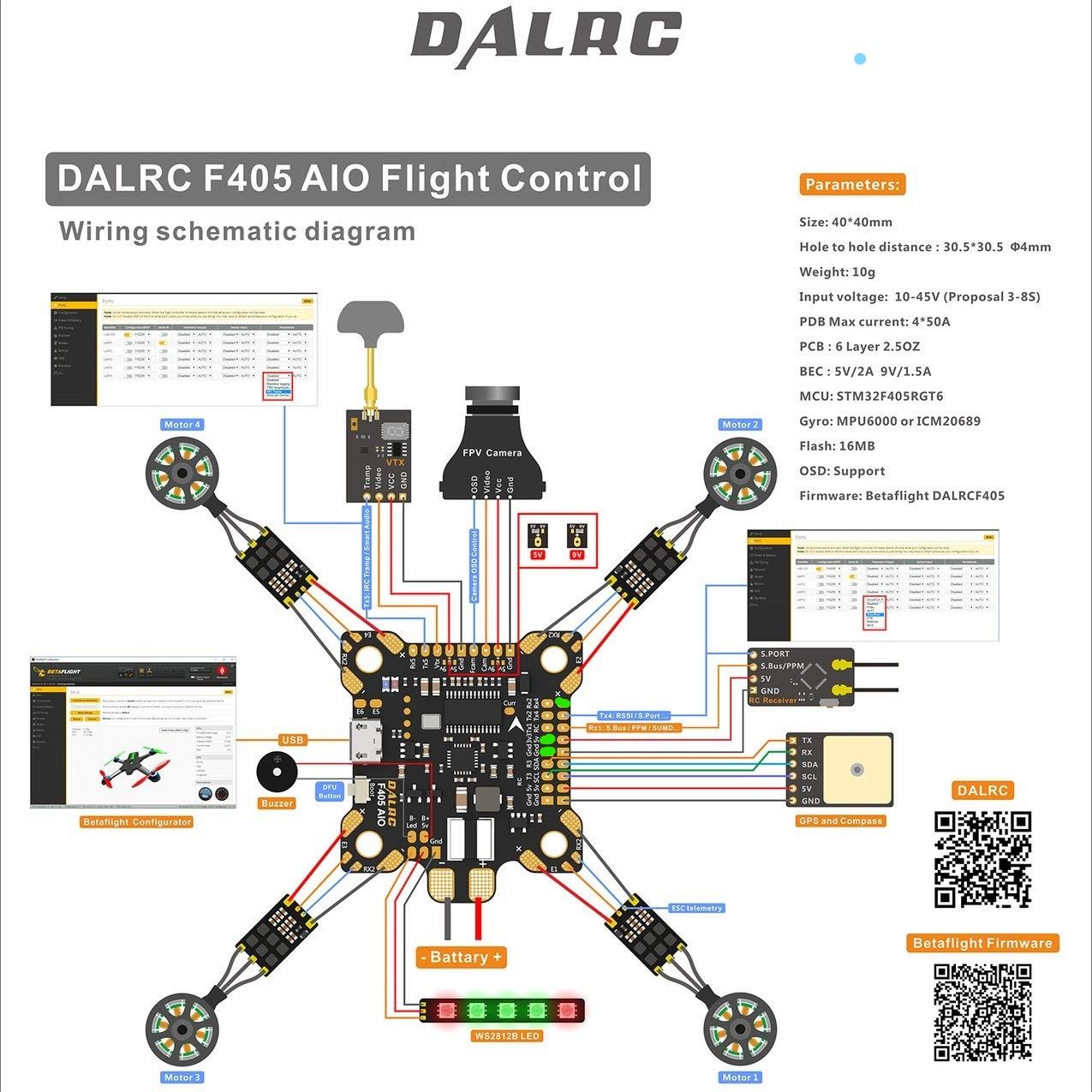

I marked the UART I used for my receiver (SPM4648 - No Telemetry) in the attached image in neon green (RX4, 3.3V, and Ground) , also added images of my BetaFlight configuration. Make sure to set the UART4 to Serial, in the ports tab, also select the receiver under configuration tab, lastly select TAER1234 in Receiver tab
