5 inch professional Fpv racing build

By Oren michaeli on Mar 23, 2020

2  123  0

Hey everyone,

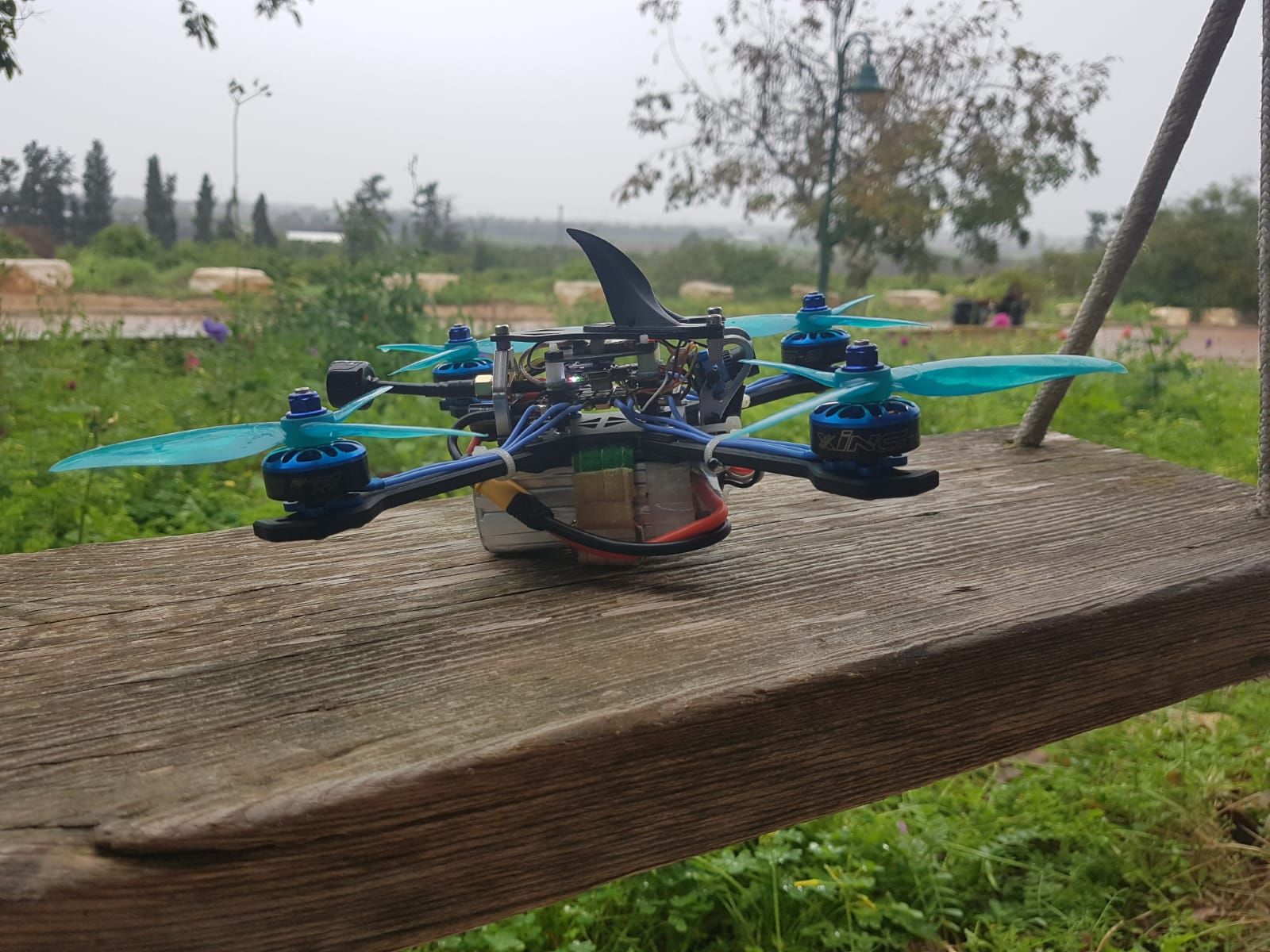

I recently built this amazing quad and I would like to share what it made of and my equipment.
I truly recommend this build and equipment and Im sure you will enjoy it.
Here is a link to a list of the parts with prices and links: https://docs.google.com/spreadsheets/d/1DU7C9nsBfqLzh0zpsCKLhVUwTA76qlkYdihE99p_V9Q/edit?usp=sharing

*please appreciate my work and buy from the links that i provided beacause i get a little commission at no extra cost.

Part List

Frame

FLYWOO CRAB 220mm 5 Inch FPV Racing Frame 5mm Arm Supports RunCam Micro Swift Foxxer Arrow M icro
Banggood.com
$44.98

Flight Controller

MAMBA F405 MK2 Betaflight Flight Controller F40 40A 3-6S DSHOT600 FPV Racing Brushless ESC (90 builds)
Banggood.com
$42.99

Motors

4 x iFlight XING-E 2207 1700KV 1800KV 3-6S /2450KV 2750KV 2-4S Brushless Motor for RC Drone FPV Racing (4 builds)
Banggood.com
$59.32

Propellers

2 Pair DALPROP T5045C Cyclone 5 Inch 3 Blade Propeller Clover Prop Black Red Orange Green (198 builds)
Banggood.com
$3.37

FPV Camera

Foxeer Arrow Micro Pro 1/3" CCD 2.1mm 4:3 600TVL PAL/NTSC FPV Camera with OSD Black/Blue/Red (229 builds)
Banggood.com
$20.70

FPV Transmitter

US $38.6 |TBS UNIFY PRO 5G8 V3 video transmitter SMA RPSMA for FPV racing drone|Parts & Accessories| | - AliExpress
Aliexpress.com
See Site

Antenna

2pcs Foxeer 5.8G Lollipop 3 2.5DBi Omni FPV Antenna RHCP SMA/RP-SMA for RC Drone Airplane (17 builds)
Banggood.com
$21.01

Receiver

FrSky R9 MM-OTA ACCESS 16CH 900MHz Long Range RC Mini Receiver Support Wireless Upgrade Firmware Inverted S.Port RSSI Output (6 builds)
Banggood.com
$31.45

Batteries

AHTECH Infinity 4S 14.8V 1500mAh 85C Graphene LiPo Battery XT60 Support 15C Boosting Charger (81 builds)
Banggood.com
$25.67

Radio

FrSky Taranis X9D Plus SE 2019 24CH ACCESS ACCST D16 Mode2 FCC Version Transmitter with R9M 2019 900MHz Long Range Transmitter M (2 builds)
Banggood.com
$289.99

Goggles

FrSky Taranis X9D Plus SE 2019 24CH ACCESS ACCST D16 Mode2 FCC Version Transmitter with R9M 2019 900MHz Long Range Transmitter M (2 builds)
Banggood.com
$289.99

Misc Parts

TBS Unify HV / FrSky RX Mounting Board (3 builds)
Team-blacksheep.com
$5.95
Show stores (3)
