First Build

By profayne on Jul 12, 2020

4 352 4

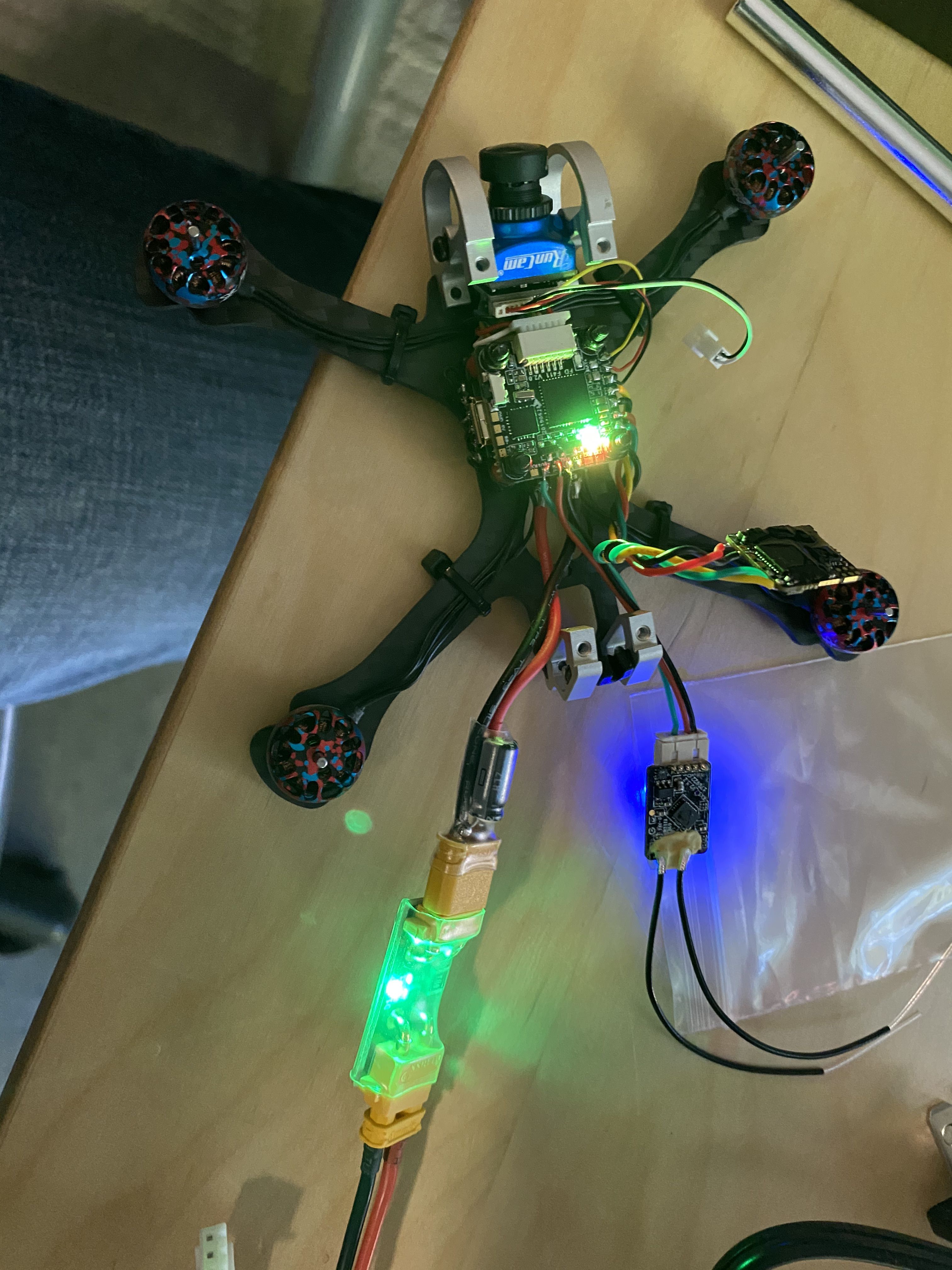

This is my very first build. I'm afraid to show my soldering jobs on the motor wires but everything else came out great. I'm running BF 4.2 with Bidirectional Dshot and RPM filters. It flies but it has a lot of wobble. I am now immersed int he world of PID tuning and failing miserably so far. I almost wonder if there is a mechanical issue.

Photos

Part List

Frame	Tadpole (30 builds) Armattanquads.com	$35.00
Flight Controller	HGLRC FD413 STACK 16x16 3-6S F411 Flight Controller 13A BLS 4in1 ESC (7 builds) Hglrc.com	$39.99
Motors	iFlight XING NANO X1103 8000KV/10000KV FPV NextGen Motor (1pcs) (2 builds) Getfpv.com	$13.99
Propellers	Gemfan Flash 2540 Tri-Blade 2.5" Prop 8 Pack - Choose Your Color (172 builds) Racedayquads.com	$3.69
FPV Camera	RunCam Phoenix 2 Nano 1000TVL CMOS 4:3/16:9 PAL/NTSC FPV Camera (2.1mm) - Silver (21 builds) Racedayquads.com	$29.99
FPV Transmitter	TBS Unify Pro32 Nano 5G8 V1.1 500mW Video Transmitter (400 builds) Getfpv.com	See Site
Antenna	Lumenier Micro AXII 5.8GHz U.FL FPV Antenna - Choose Your PolarizationLHCP (59 builds) Racedayquads.com	$19.99
Receiver	FrSky R-XSR 2.4GHz Micro ReceiverDefault Title (937 builds) Racedayquads.com	$21.99
Batteries	3S Drone Batteries for - RaceDayQuads (44 builds) Racedayquads.com	$11.74

Show stores (4)

Like Copy Part List Follow profayne

Discussion

Jayembee67 Jul 13, 2020

I have had a lot of strange wobbles and oscillations with a couple of smaller machines, and a Tadpole. I tried all sorts of things to try to smooth the flight out, and in the end the two biggest things that helped were BF4.2 with RPM filtering, which you already have and isn't helping, and changing the PWM frequency of the ESCs from 24kHz to 48kHz (details here: https://oscarliang.com/best-blheli-32-settings). The latter completely solved the issue of mid-throttle oscillation I was seeing on two 3" machines.

I also put bi-blades onto the Tadpole; the tri-blades were a bit much and added far too much jello to the video.

jpeterson Jul 12, 2020

make sure you soft mount the flight controller, that can help a lot. And check out UAVtech on youtube. He has a ton of great videos on tuning pids. If you take a look at Joshua Bardwells RPM filter video, he shows a good starting point, i copied it and my newest build went from awful to damn near perfect.

profayne Jul 12, 2020

I've got the FC soft mounted but I am wondering if I may have it screwed down too tight. I just finished Bardwell's video on RPM filters and I am on to UAVTechs video on tuning a 2 inch quad with sliders. I tried all afternoon fiddling with sliders and couldn't tune out the wobbles. I'll try more tomorrow. I appreciate your quick comment.

jpeterson Jul 12, 2020

yeah for sure. thats a big thing, because if you screw it down too tight the gummies just get crushed. Yeah as long as you are patient, you'll get the quad flying good. keep in mind, the little quads are moe difficult to tune so don't expect perfection. good luck!
