Every Day Freestyle Build

By yapsy on Aug 03, 2020

4  121  0

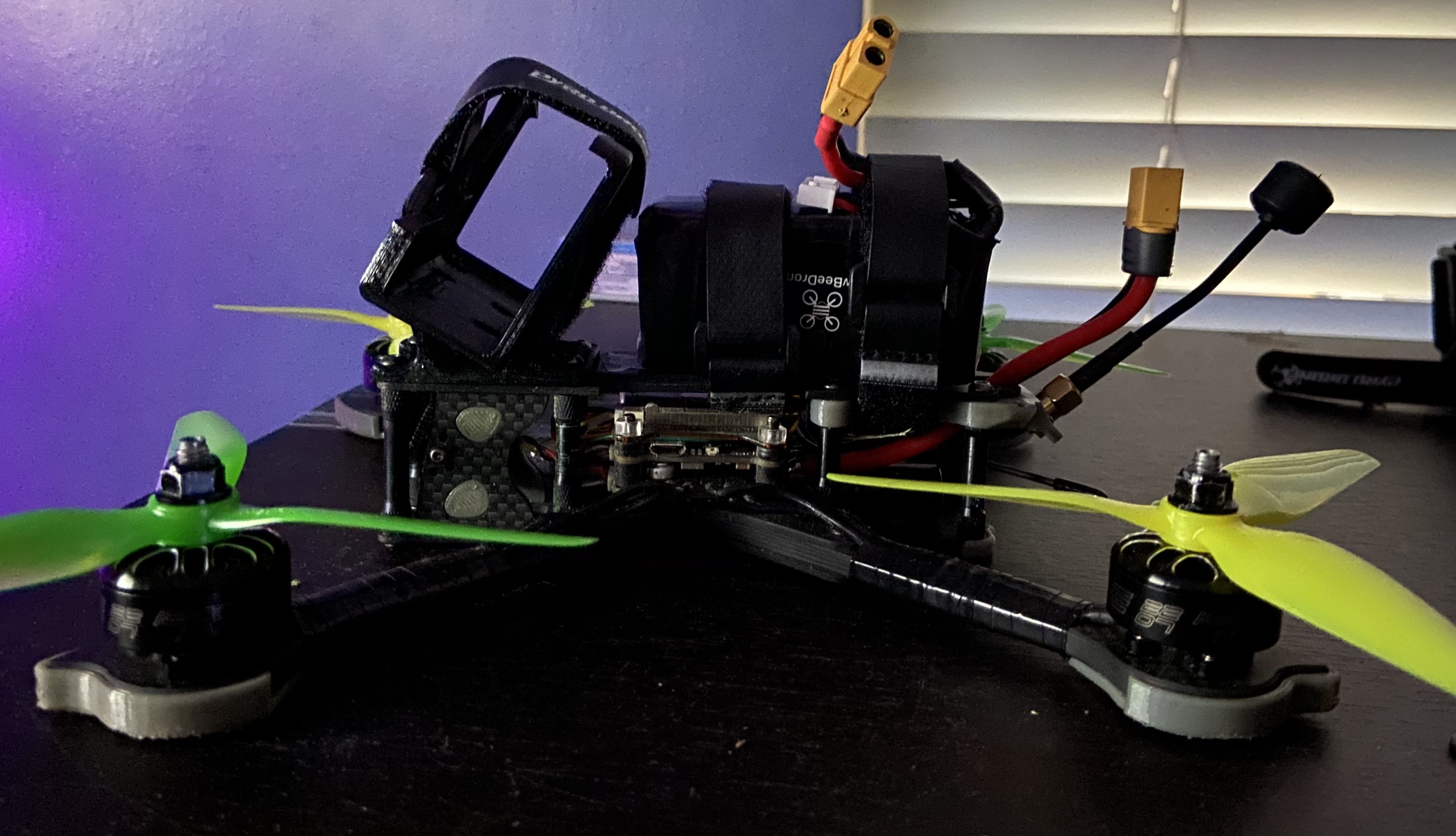

This is my main freestyle quad. Bought it prebuilt and swapped some parts out to make it look and feel nice.

Photos

Part List

Frame

iFlight Cidora SL5 215mm 5 Inch FPV Freestyle 3K Carbon Fiber Frame Kit 20x20/30.5x30.5mm Hole for RC Drone (3 builds)
Banggood.com
$41.99

Flight Controller

iFlight SucceX-E 2-6S 30x30 Stack/Combo (F4 FC, 45A 4in1) (8 builds)
Racedayquads.com
$53.99

ESCs

iFlight SucceX-E 45A 2-6S 30x30 4in1 ESC (4 builds)
Racedayquads.com
$29.99

Motors

4 x iFLIGHT XING-E 2207 2-6S FPV Motor (9 builds)
Pyrodrone.com
$55.96

Propellers

HQ Prop Ethix S4 5x3.7x3 Tri-Blade 5" Prop 4 pack - Lemon Lime (26 builds)
Racedayquads.com
$3.49

FPV Camera

Caddx Ratel Starlight HDR OSD 1/1.8" 1200TVL FPV Camera (Choose Color & Lens) (93 builds)
Pyrodrone.com
$33.99

FPV Transmitter

Rush FPV Tank Ultimate Plus 25-800mW VTX w/ Smart Audio - MMCX (8 builds)
Racedayquads.com
$37.99

Antenna

TBS Triumph Pro Antenna 5.8GHz (RHCP) (SMA) (3 builds)
Hobbyrc.co.uk
$24.01

Receiver

TBS Crossfire Nano RX FPV LONG RANGE DRONE RECEIVER (756 builds)
Pyrodrone.com
$24.95

Batteries

3 x TATTU R-Line 1050mAh 6s 95C Lipo Battery (46 builds)
Getfpv.com
$107.97

Radio

RadioMaster TX16S Multi-Protocol RF Module OpenTX 2.4GHz RC Transmitter w/ Hall Gimbals (11 builds)
Racedayquads.com
$149.99

Goggles

Skyzone SKY03O Oled /SKY03S 5.8GHz 48CH Diversity FPV Goggles Support OSD DVR HDMI With Head Tracker Fan LED For RC Racing Drone (31 builds)
Banggood.com
$399.90

HD Camera

GoPro HERO8 Black - Waterproof Action Camera with Touch Screen 4K Ultra HD Video 12MP Photos 1080p Live Streaming Stabilization (19 builds)
Amazon.com
$348.99

Misc Parts

Team BlackSheep TBS Crossfire Immortal T Antenna V2 (18 builds)
Airbladeuav.com
$5.99

Radio Module

TBS Crossfire Micro TX V2 (122 builds)
Team-blacksheep.com
$69.95

Accessories

XT60 Plug Parallel Charging Board For ISDT Q8 D2 Q6 T6 Lite ToolkitRC M6 M8 Charger (3 builds)
Banggood.com
$15.44
Show stores (8)
