4S-3" Leader130 (2021-2024)

By scirocco on Jul 19, 2021

11  267  2

4S-3" Leader130 with GEPRC 1105/5000KV motor!

Frame: Leader130 130mm Carbon Frame
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
Motor: GEPRC 1105/5000KV (6,1g)

Propeller: Gemfan Hurricane 3018 2blade (the best 0,75g) or HQ 3015 3blade (1.1g)!
maybe? HQ 3015/3020 2 blade (0,8/1g)

Camera: RunCam Micro Swift 2
VTX: Eachine VTX02 200mW
Receiver: XM+

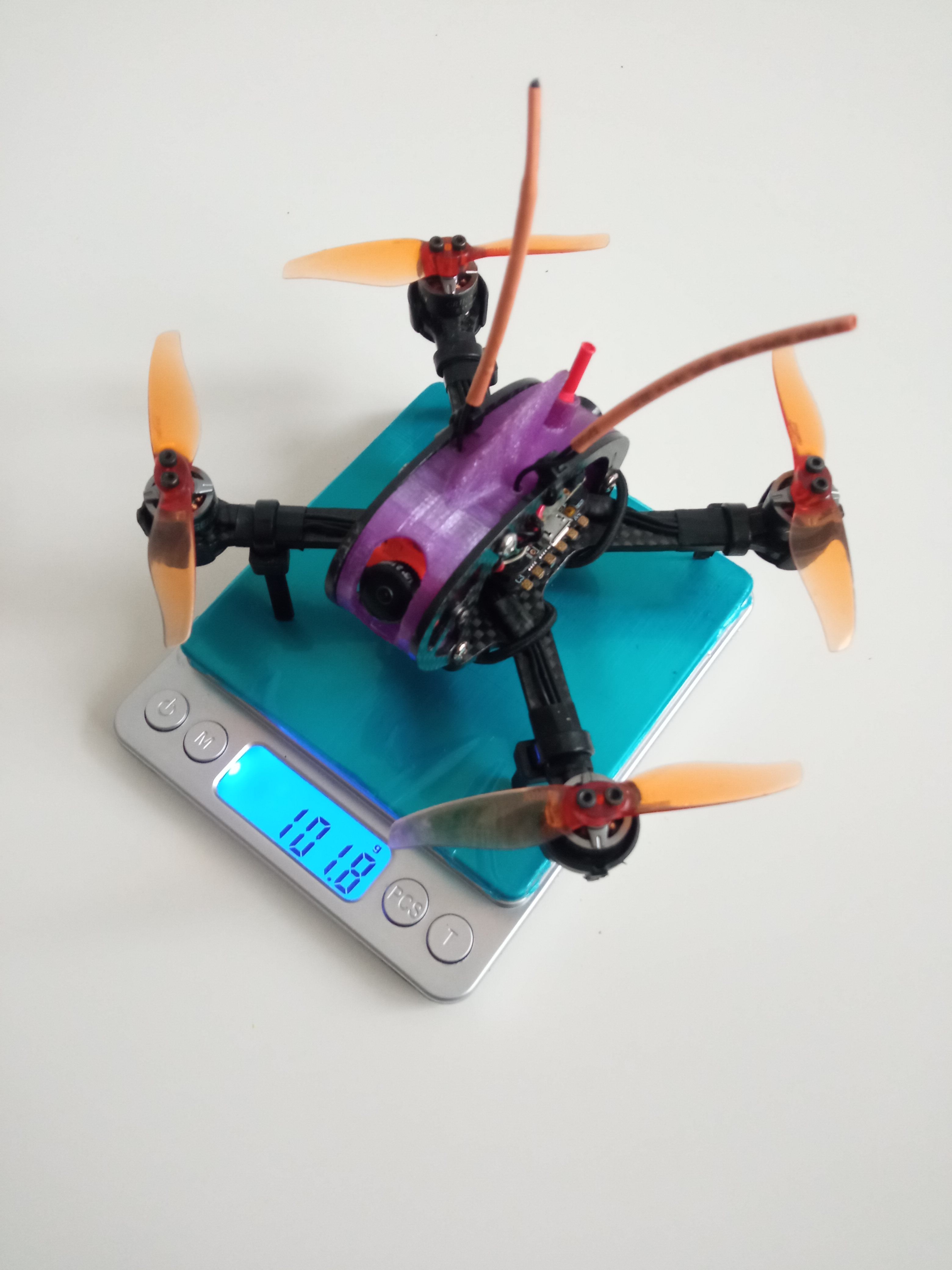

Weight: 101g

Battery:
GNB HV 4S 650mah (63g)
Turnigy Graphene 4S 450mah (69g)

Summ weight: around 164-170g
Fly time: 4-5minutes

Photos

Part List

Frame

FullSpeed 3SE 130mm / Leader3 130mm Wheelbase Carbon Fiber Frame Kit for RC FPV Racing Drone Spare Part Accessories (2 builds)
Aliexpress.com
$16.24

Flight Controller

Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
$32.99

ESCs

20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
$35.99

Motors

4 x GEPRC SPEEDX GR1105 5000KV 2-4S 6000KV 2-3S FPV Racing Brushless Motor for RC Drone (5 builds)
Banggood.com
$63.96

Propellers

Gemfan Hurricane 3018 3x1.8 3 Inch 2-Paddle Propeller 1.5mm /2.0mm Hole T Mount for RC Drone FPV Racing Toothpick Frame (8 builds)
Xt-xinte.com
$2.75

Propellers

Hqprop T3X1.5X3 Grey 3015 3 Blade Pc Propeller Voor Rc Fpv Racing Freestyle 3Inch Tandenstoker Cinewhoop Drones (2 builds)
Nl.aliexpress.com
$10.00

FPV Camera

RunCam Micro Swift 2 FPV Camera 2.1mm/2.3mm Lens FOV160w/OSD& Low Voltage Alarm PAL NTSC (5 builds)
Aliexpress.com
$37.43

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

GAONENG – batterie Lipo GNB 4s 660mAh 15.2V HV 90C/180C avec prise XT30U F, pour Drone de course Beta85X Whoop Quadcopter FPV (6 builds)
Fr.aliexpress.com
$9.00

Batteries

5PCS Lipo Battery Gaoneng GNB HV 650mAh 60C 1s 2s 3s 4s HV With PH2.0 XT30 Plug For Emax Tinyhawk Kingkong LDARC TINY (4 builds)
Aliexpress.com
$18.00

Batteries

Turnigy Nano-Tech Plus 450mAh 4S 70C LiPo Pack mit XT30 (3 builds)
Hobbyking.com
See Site

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
Show stores (7)

Discussion

Sign in to comment

kisselcj@gmail.com   Oct 28, 2021

Smart idea on those Zip Tie Landing Gear.

scirocco   Oct 28, 2021

thnx but it is not nice build other hand it is very useful example for 4s battery! protect, easy to change if broke it, flexiable but enough strong, wide range to setup of long, can buy it low price everywhere no need to wait from china 😁
