4S-3" Leader120 (2020-2024)

By scirocco on May 18, 2021

2  101  0

New design and technic into Full Speed Leader120!

Frame: Leader120 120mm Carbon Fiber with own handmade top plate! (22g)
FC+ESC: Tower - Emax magnum F3 2-4S 13-15A
or
FC: Full Speed F3SD
ESC: HAKrc 4in1 20/25A 2-4S
motor: Full Speed 1106C2 4500KV (6,8gramm)

Propeller:
Emax AVAN Babyhawk 2327 3blade 1,4g
Gemfan Hurrican 3018 2blade 0,75g (best)
HQ 3015 3blade 1,1g

Camera: Caddx EOS2
VTX: Eachine VTX02 200mW
Receiver: XM+

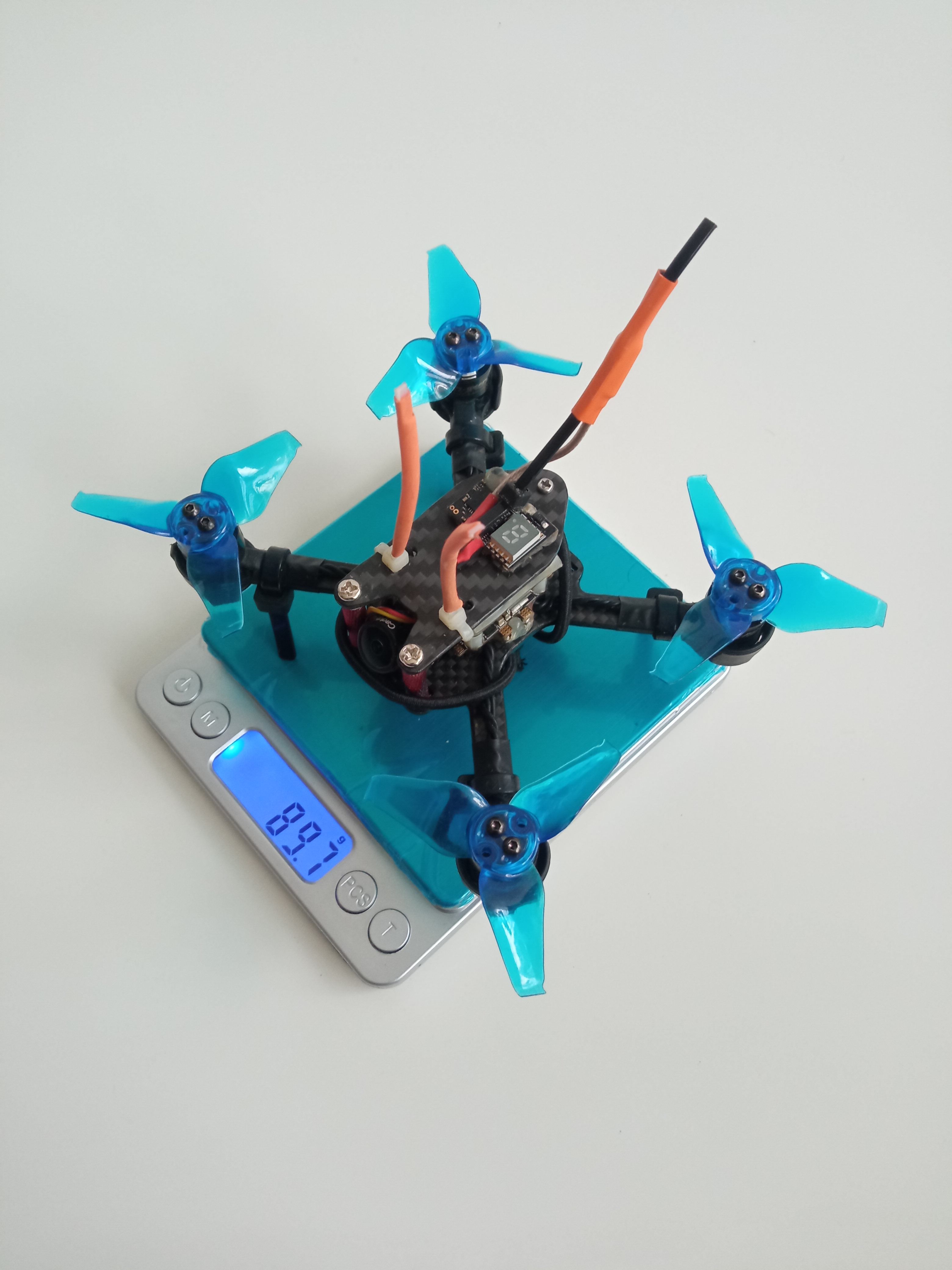

Weight: 87-92g

Battery:
GNB HV 4S 650mah (63g)
Turnigy Graphene 4S 450mAh (69g)

Summ weight: around 150-161g
Fly time: 5-6minutes

Photos

Part List

Frame

JMT Leader 120 120mm Carbon Frame Kit X Vorm 4 Axle voor DIY Micro FPV Racing Quadcopter Drone (2 builds)
Nl.aliexpress.com
$14.79

Flight Controller

Emax F3 Magnum Mini Tower Systeem Bullet 12A 4 In 1 Esc En F3 Vlucht Controller (9 builds)
Nl.aliexpress.com
$70.78

Flight Controller

Full Speed F3SD Flytower Part 20x20mm Omnibus F3 Flight Controller AIO OSD & BEC for RC Drone (18 builds)
Banggood.com
$32.99

ESCs

20x20mm HAKRC 20A BLheli_S BB2 2-4S 4 in 1 Brushless ESC Support DShot600 for RC Drone FPV Racing (19 builds)
Banggood.com
$35.99

Motors

4 x Full Speed 1106 C2 4500KV 2-4S Brushless Motor
Fullspeedrc.com
$43.96

Propellers

12pcs Emax AVAN Babyhawk 2.3 Inch 2.3x2.7x3 3 blade RC Drone FPV Racing Propeller CW CCW Spare Parts Accessories (6 pairs)
Aliexpress.com
$4.59

Propellers

Gemfan Hurricane 3018 3x1.8 3 Inch 2-Paddle Propeller 1.5mm /2.0mm Hole T Mount for RC Drone FPV Racing Toothpick Frame (8 builds)
Xt-xinte.com
$2.75

Propellers

Hqprop T3X1.5X3 Grey 3015 3 Blade Pc Propeller Voor Rc Fpv Racing Freestyle 3Inch Tandenstoker Cinewhoop Drones (2 builds)
Nl.aliexpress.com
$10.00

FPV Camera

14X14Mm Caddx Turbo EOS2 V2 1200TVL 1/3 "Cmos Sensor 2.1Mm Lens Global Wdr Fpv Mini camera Voor Rc Fpv Racing Micro Whoop Drones (9 builds)
Nl.aliexpress.com
$16.12

FPV Transmitter

Eachine VTX02 200mW 5.8Ghz 40CH Mini FPV Transmitter for RC Tiny Racing Drone (32 builds)
Banggood.com
$14.99

Receiver

FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (41 builds)
Banggood.com
$19.99

Batteries

GAONENG – batterie Lipo GNB 4s 660mAh 15.2V HV 90C/180C avec prise XT30U F, pour Drone de course Beta85X Whoop Quadcopter FPV (6 builds)
Fr.aliexpress.com
$9.00

Batteries

Lot de 5 batteries Lipo Gaoneng GNB HV 650mAh 60C 1s 2s 3 4s HV avec prise PH2.0 XT30 pour Emax Tinyhawk Kingkong LDARC TINY (5 builds)
Fr.aliexpress.com
$19.76

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long goggles edition (5 builds)
Shop.prodrone.pl
$42.00
