Lumenier QAV-R 2 Slammed Skitzo

By ArkansasFPV on Mar 03, 2022

15  360  4

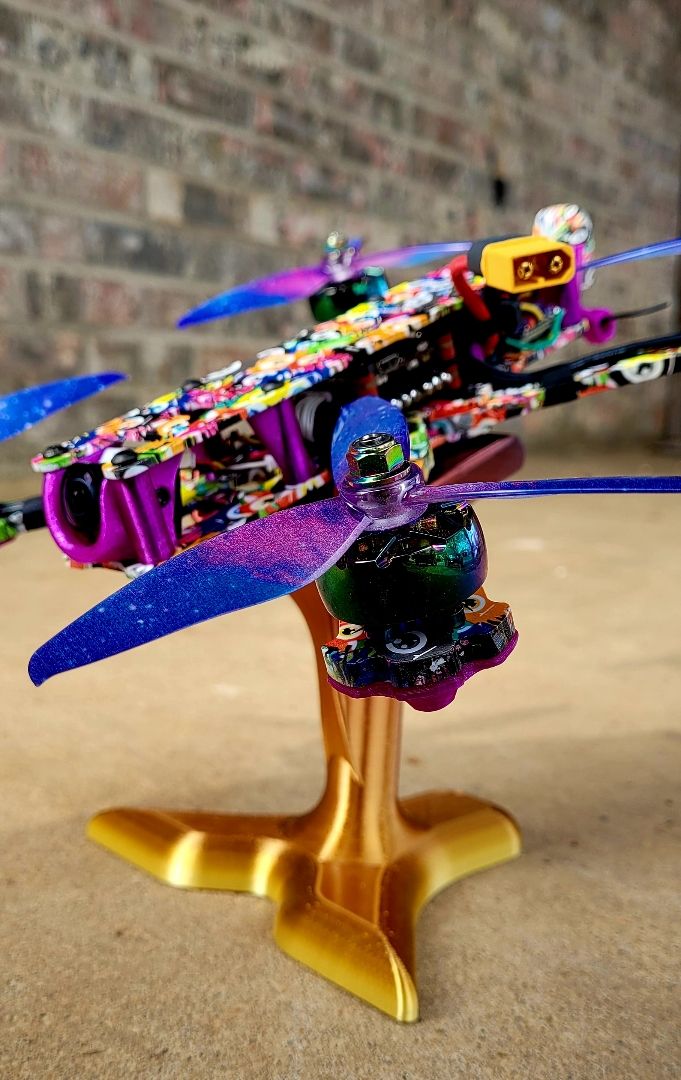

My wife loved this frame so I built it for her.

Photos

Part List

Frame

Lumenier QAV-R 2 Slam SKITZO Freestyle 5" Quadcopter Frame (Hydro Dipped) (2 builds)
Getfpv.com
$79.99

Flight Controller

CLRACING F7 V2.2 30x30 FLIGHT CONTROLLER (11 builds)
Pyrodrone.com
$56.99

ESCs

GEPRC G50A BL32 3-6S 4-in-1 ESC
Getfpv.com
See Site

Motors

4 x iFlight XING2 2207 Rainbow Unibell Motor - 1950KV
Getfpv.com
See Site

Propellers

Gemfan WinDancer 5043 3-Blade Propeller- Skitzo Galaxy (8 builds)
Getfpv.com
$4.29

FPV Camera

Foxeer Toothless 2 Micro 1200TVL 16:9/4:3 PAL/NSTC CMOS Switchable FoV FPV Starlight Camera w/ M12 Lens and 1/2" Sensor (1.7mm) (10 builds)
Pyrodrone.com
$39.90

FPV Transmitter

RUSHFPV Tank Solo 25-1000mW+ 5.8GHz VTX - MMCX (25 builds)
Racedayquads.com
$49.99

Antenna

Lumenier AXII 2 Right-Angle Stubby 5.8GHz Antenna - SKITZO Hydro Dip SE (RHCP)
Getfpv.com
$19.99

Receiver

HappyModel 2.4GHz EP1 RX ELRS Receiver (104 builds)
Racedayquads.com
$13.49

Batteries

Ovonic 22.2V 100C 6S 1000mAh LiPo Battery Pack with XT60 Plug for Freestyle (13 builds)
Ampow.com
$20.62

Radio

Jumper T-Lite JP4-in-1 Multi Protocol Open TX 2.4GHz RC Transmitter w/ Hall Gimbals (23 builds)
Racedayquads.com
$75.99

Goggles

ORQA FPV.One OLED FPV Goggles (12 builds)
Getfpv.com
$549.00

3D Printed

QAV-R 2 Slam "Batman DD" parts by M490fpv
Thingiverse.com
See Site

Video Receiver

FatShark SharkByte RX5.1 Receiver Module (20 builds)
Racedayquads.com
$249.99

Video Receiver

ImmersionRC RapidFIRE w/ Analog PLUS Goggle FPV Receiver Diversity Module (179 builds)
Banggood.com
$149.00

Radio Module

Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite (6 builds)
Pyrodrone.com
$33.99

Battery Charger

Pro 160W Duo AC/DC LiPo and NiMH Battery Charger
$109.99

Soldering Iron

Merece Soldering Station, 65W Digital Soldering Iron Kit 176℉-896℉ Adjustable Temperature (C/F), Standby & Sleep, Temper
Amazon.com
$49.99

Tools

RDQ 9 Piece Drone Tool Kit V2 (8 builds)
Racedayquads.com
$19.99

Backpack

RDQ FPV Backpack - Choose Your Version (8 builds)
Racedayquads.com
$62.29
Show stores (8)

Discussion

Sign in to comment

FlyWind   Jun 12, 2022

I know this sound weird asking, will Xing2 2207 1855Kv cruise well in 3s? I was thinking to use my old 3s for some extra fun and 6s for punch

ArkansasFPV   Jun 12, 2022
1

I honestly don't know. I personally wouldn't go less than 4S and even then it will still have very little power. All my builds but the Micros are on 6S.

OptimaZe   Mar 03, 2022

B-E-A-Utiful!!

ArkansasFPV   Mar 03, 2022
1

Thank you man! Hopefully it flies as good as it looks
