MOD-L 4 inch (ledroneclub)

By Flaggon on Jun 15, 2022

4  95  0

This build is based on the opensource Mod-L Frame from ledroneclub.
I used the 4 inch "beefy" arms in combination with the top & bottom plate for nano sized cameras. Additionally i modified the arms to be able to use 4 motor screws instead of only 2.
With the 2004 2900kv motors and a 850 mah Lipo it has a ton of power while beeing (in my opinion) relatively efficient.
Regarding props i use the HQprop T4x2x3 and 4" Proppy Floppy 3 bladed props (really practical on trips)

Flight times/Batteries:
4s 850 mah Lipo --> 4-6 min. of "agressive" freestyle flying
4s 1300 mah Lipo --> up to 9-10 min of light freestyle flying
4s 2800mah Liion pack with the battery clip system of DaveC --> up to 13 min of cruising
(I only use this battery when i'm on vacation because it's super practical to be able to charge the liion cells via usb)
(all those numbers are with my cam, so extra 60 g.)

Weight:
180 g. without battery and cam
285 g. with 850 mah Lipo
475 g. with the Liion pack and my cam
(cam weighs about 60 g.)

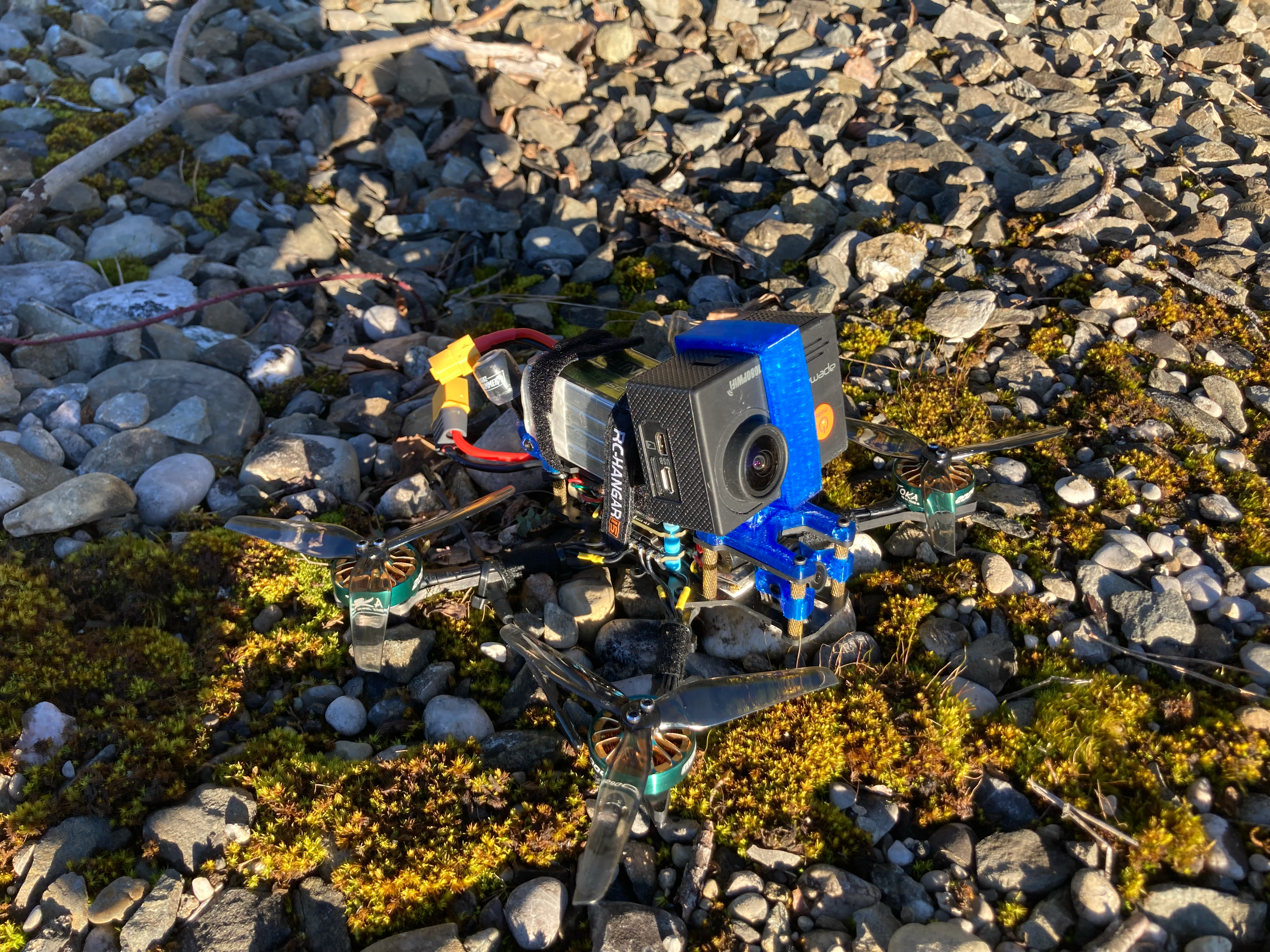

Photos

Part List

Frame

MOD-L 3-3.5-4-5 inch : modular ultralight frame (with separate arms) by ledroneclub (4 builds)
Thingiverse.com
See Site

ESCs

Diatone Mamba Basic F722 Mini MK3 Stack F7 FC + 40A 128K BL32 ESC
Rctech.de
See Site

Motors

4 x Diatone Mamba TOKA 2004 2900KV
Rotorama.de
See Site

Propellers

HQprop T4x2x3 Durable - Rotorama
Rotorama.de
See Site

FPV Camera

Caddx Baby Ratel 2 Nano
Rotorama.de
See Site

FPV Transmitter

HGLRC Zeus nano VTX 25-350mW
Rotorama.de
See Site

Antenna

iFlight Sigma u.FL (5 builds)
Rotorama.de
See Site

Batteries

Tattu R-Line 850mAh 4S 95C (4 builds)
Rotorama.de
See Site

Batteries

CNHL Ministar 850mAh 4S 70C
Rotorama.de
See Site

Batteries

4 x Molicel INR18650-P28A, 2800mAh 35A Lithium-Ionen-Akku, 3,6V - 3,7V | akkuteile.de
Akkuteile.de
See Site
