Odonata Vista aka "Zero Tolerance"

By airrage on Aug 30, 2023

5  0  12

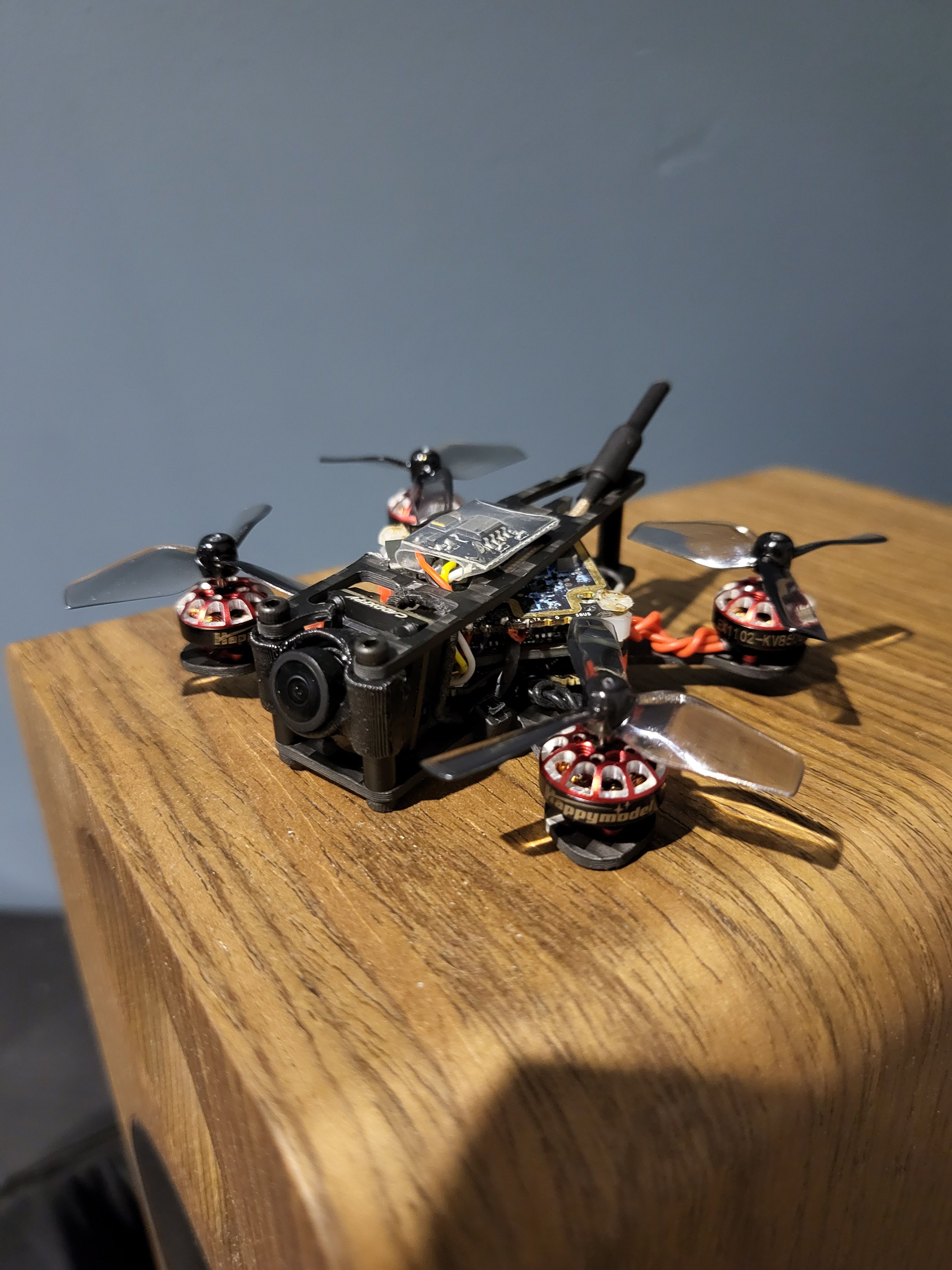

Practically a ductless whoop 77mm frame. Got this frame from Armattan. I wondered how this would fly and how much I could push the envelope cramming a Vista in there. Only had 1102 8500kv laying around so I don't expect huge power, or do I? Weighed it in at ~40gr.. Maiden will tell.

The initial setup was already halfway done since I recycled the aio that didn't seem to be the issue when it came down from the sky in my Og mobigital. Turned out a motor "Aeolus" just decided to leave the chat mid flight smgdh. So no more Aeolus for me.

I figured being this tiny it'll need some serioud PID tuning so added a Flywoo BT module which I could not find room for so I slapped it on top.

Man this thing is tiny! Practically same size as the lipo. I did a test hover in my mancave and she flew well, enough. Immediately noticed less noise as it has no ducts to fight.

I'll be trying it out with the new Radiomaster Pocket tx I got in the mail today.
Hoping I find the time tomorrow and if the weather gods are with me to give it a little rip.

Obviously it has it's name from being redicilous small and very, very finicky to build.

Edit: Flies very good, zero jello. Avg 4.5m with 530mah 2s hv lipo. Love that it is very quiet for it's size. Going to try a couple flights with 380mah 2s that I have. And got to find a way to mount the lipo properly. I don't even see where I could elastics the elastics. It is the Odonsta frame from Armattan, link in description. Bought at dronefpvracer as that is closer to where I live.

EDIT 12/22/23 - Found 1S lipo mounts that I remixed for 2S use, no more fiddling with those elastics. Oh, and I sold the Radiomaster Pocket elrs a week after receiving, if felt nice and all but I guess I am grown too much to the t2pro with cnc gimbals.
