AOS3.5 V2 6s 550mAh

By DFPV on Sep 17, 2023

5 0 7

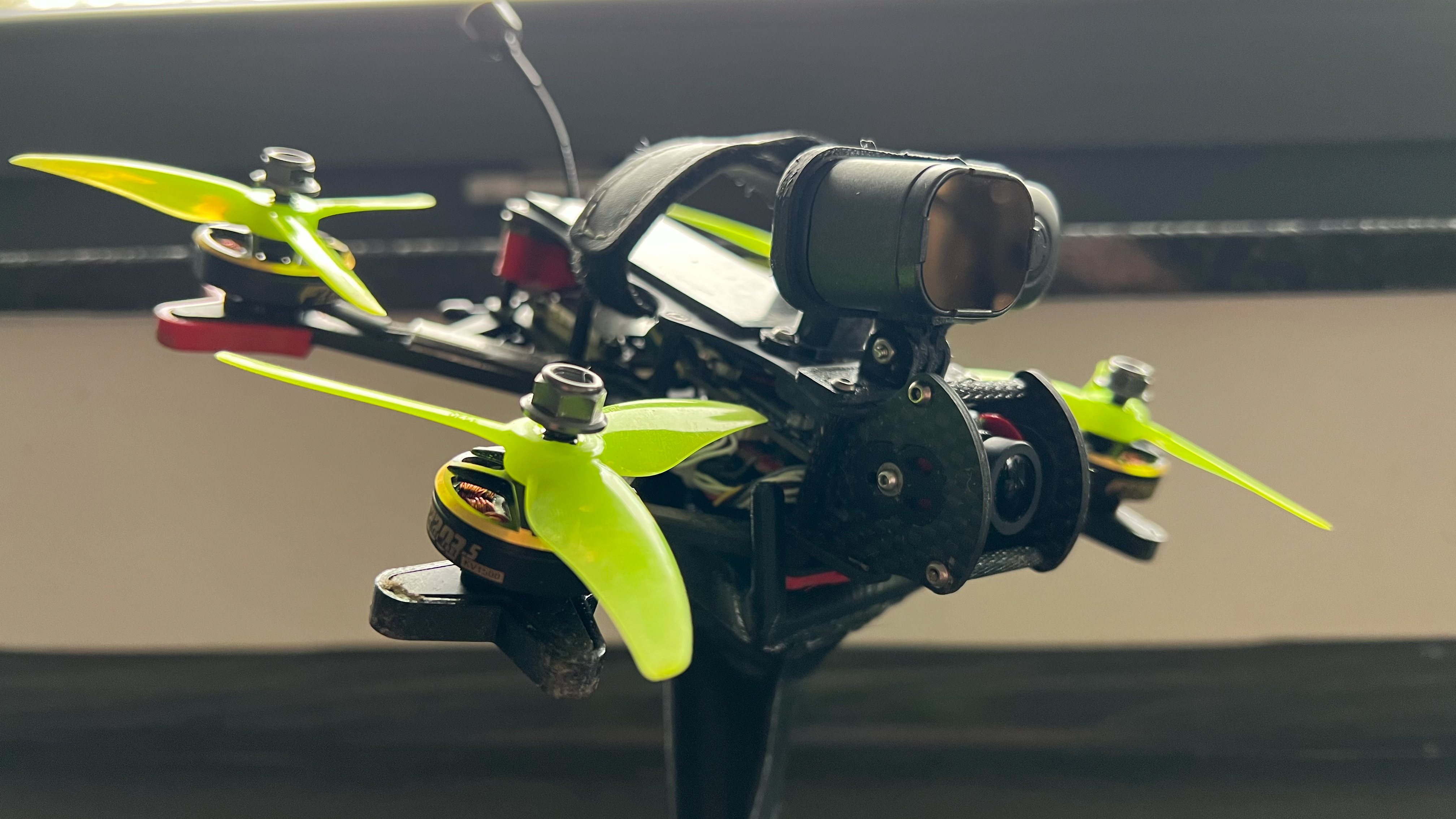

This is my first build i uploaded here. On my first flight i got about 6 min flight time. All parts are linked below. If you have any tips or questions just leave a comment.

Photos

Part List

Frame	AOS 3.5 v2 (14 builds) Cncdrones.com	$49.00
Flight Controller	MATEKSYS H743-MINI V3 Flight Controller Getfpv.com	See Site
ESCs	4 x HGLRC Zeus 50A Pro 3-8S 4-in-1 BLHeli_S ESC - Mini 20x20 Getfpv.com	See Site
Motors	4 x T-Motor F2203.5 FPV Race 20g Brushless Motor 1500kv (4 builds) Premium-modellbau.de	See Site
Propellers	Gemfan Hurricane 3520 Durable Tri-Blade 3.5" Propeller (2CW+2CCW) - Choose Your ColorYellow (55 builds) Pyrodrone.com	$2.99
FPV Camera	Runcam HDZero Micro FPV Camera V2 (12 builds) Racedayquads.com	$49.99
FPV Transmitter	HDZero Whoop Lite VTX By Divimath (20 builds) Pyrodrone.com	$54.99
Antenna	TrueRC SINGULARITY 5.8 U.FL LHCP (8 builds) Pyrodrone.com	$19.99
Receiver	RadioMaster RP1 V2 ELRS 2.4GHz Nano Receiver w/ UFL Antenna Pyrodrone.com	$24.99
Batteries	6S 22,2V 550mAh 95C TATTU R-Line Lipo I RC-Hangar15, 24,99 € Shop.rc-hangar15.de	See Site
3D Printed	Thingiverse - Digital Designs for Physical Objects Thingiverse.com	See Site
HD Camera	RunCam Thumb Pro W (8 builds) Shop.runcam.com	$89.99
Video Receiver	Walksnail Avatar FPV VRX (4 builds) Caddxfpv.com	See Site

Show stores (9)

Like Copy Part List Follow DFPV

Discussion

hover_trug Nov 06, 2023

Hey interesting build I'm looking to do something similar. Did you wire the VTX to the 5v bec output on the FC? I see whoop lite is rated for 1s to 3s but Im trying to figure out how I can put it on a 4s build safely

DFPV Nov 07, 2023

Yes I have connected it to the bec but you should make sure that the bec can supply the power that the HDZero whoop lite needs

DFPV Nov 07, 2023

The hdZero whoop lite is specified with a consumer of 7 watts, so your 5 V bec should be capable of at least 1.5 A continuous load

hover_trug Nov 09, 2023

thanks for the reply and explanation. How is the range on this setup? Do you usually keep it maxed out?

earflapjetpack Sep 19, 2023

building my own right now. what's your AUW (all-up weight, including battery)? interesting motor choice, btw. flight time aside, how does it fly? how much throttle does it take to hover? 1500kv is pretty cold-blooded. for comparison, my freestyle quads use 1850kv motors on 6s to swing a 5" prop, lifting 700g+. i'm using 1604 2850kv motors on 6s, so they'll spin almost twice as fast using the same current.

DFPV Sep 20, 2023

The drone itself weighs 230 grams and the battery another 87. Just take a look at the new photos. i would make a video of the behaviour at the weekend where you can see my stick inputs. i think it flies very well and with the 1500 kv motors it is a compromise with the flight time.

wind_rapport Sep 18, 2023

Nice - I would recommend you get a full size TPU mount for the ThumbPro over the tiny one that comes with it. Greatly reduces vibrations in my experience and can be found easily on Etsy or Ebay. Would also recommend you get that camera angle up to at least 30 degrees if you're ready. Cheers
