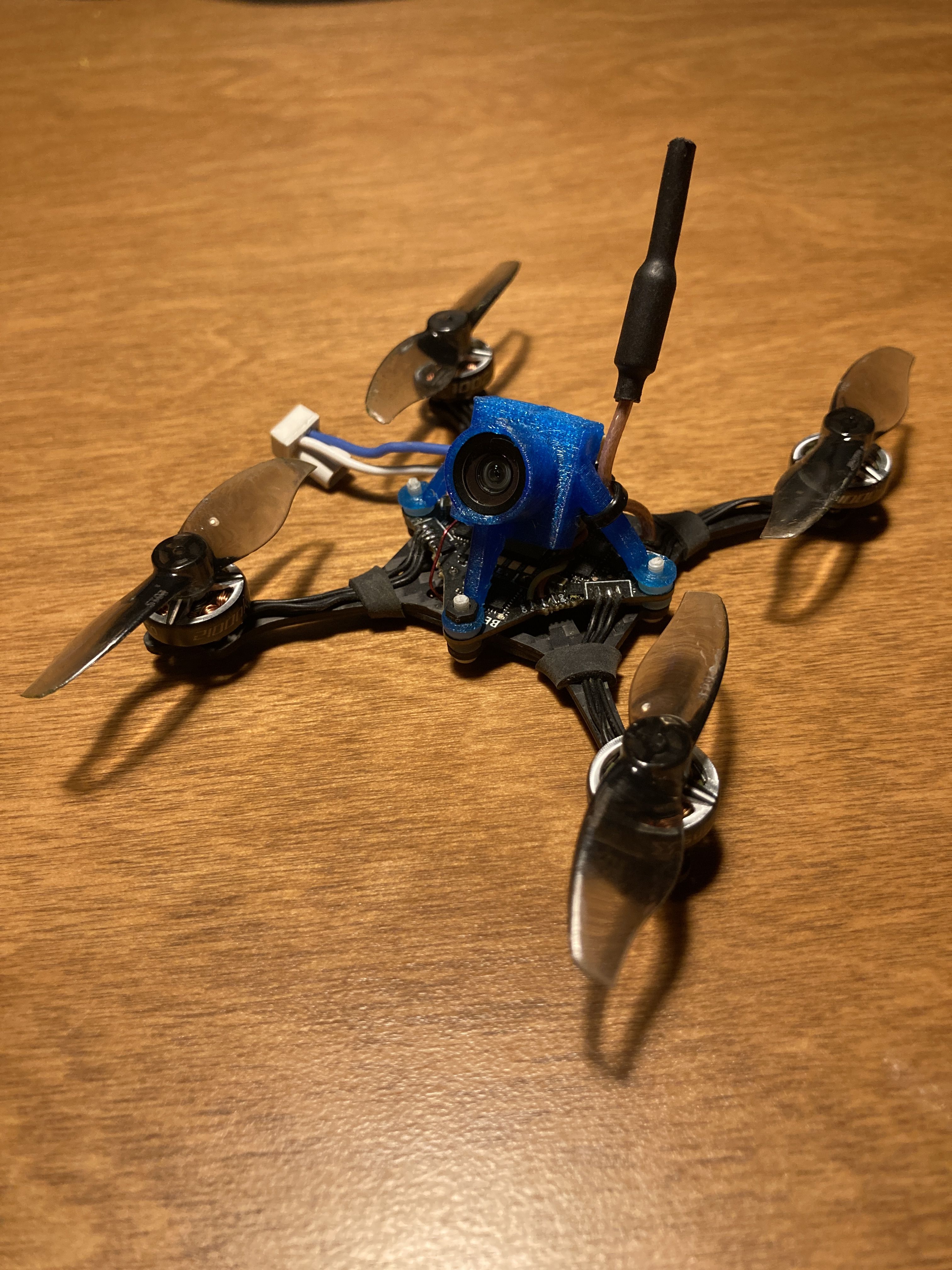

Macho 2" - 1s toothpick using Quad66's Skyryder frame with a Matrix 5-in-1 flight controller. I'm getting about 4 minutes of flight time on a Lava 450mah LiHv battery. I used Reny screws for the canopy and motor mounts except one metal screw on each motor for safety. I've tried the Gemfan 2008 and 2015 biblade props now, and prefer the extra lift on the 2015 props. This frame feels solid for how light it is, although I think the light build and small motors help out. I removed the motor connectors on the Matrix FC and direct soldered the motor wires. The FC is mounted upside down for access to the usb connector, which makes for challenging antenna routing.
Quick build and fun quad.
Frame |
SkyRyder 98
Cncdrones.com
|
$13.00 |
Flight Controller |
Matrix 1S Brushless Flight Controller (5IN1)
Betafpv.com
|
$49.99 |
Motors |
Sub250 M2 1002 21000KV Brushless FPV Drone Motor Set (4 Pc.) - Choose Color
Pyrodrone.com
|
$51.99 |
Propellers |
Gemfan Hurricane 2015-2 PC 1.5mm shaft Durable 2-Blade Prop 4CW+4CCW - Choose Color
Pyrodrone.com
|
$3.99 |
FPV Camera |
CADDX ANT LITE 4:3 NANO FPV CAMERA
Pyrodrone.com
|
$15.90 |
Antenna |
RDQ 5.8GHz U.FL Dipole FPV Antenna - Linear
(86 builds)
Racedayquads.com
|
$2.99 |
Hardware |
Solid Spot , PEEK and plastic fasteners
Solidspot.com
|
See Site |
Misc Parts |
BeeBrain V2 Camera Color Mount
(7 builds)
Pyrodrone.com
|
$2.99 |
