Mobigital O4 Air Pro

By Davidpe on Apr 24, 2025

3 0 3

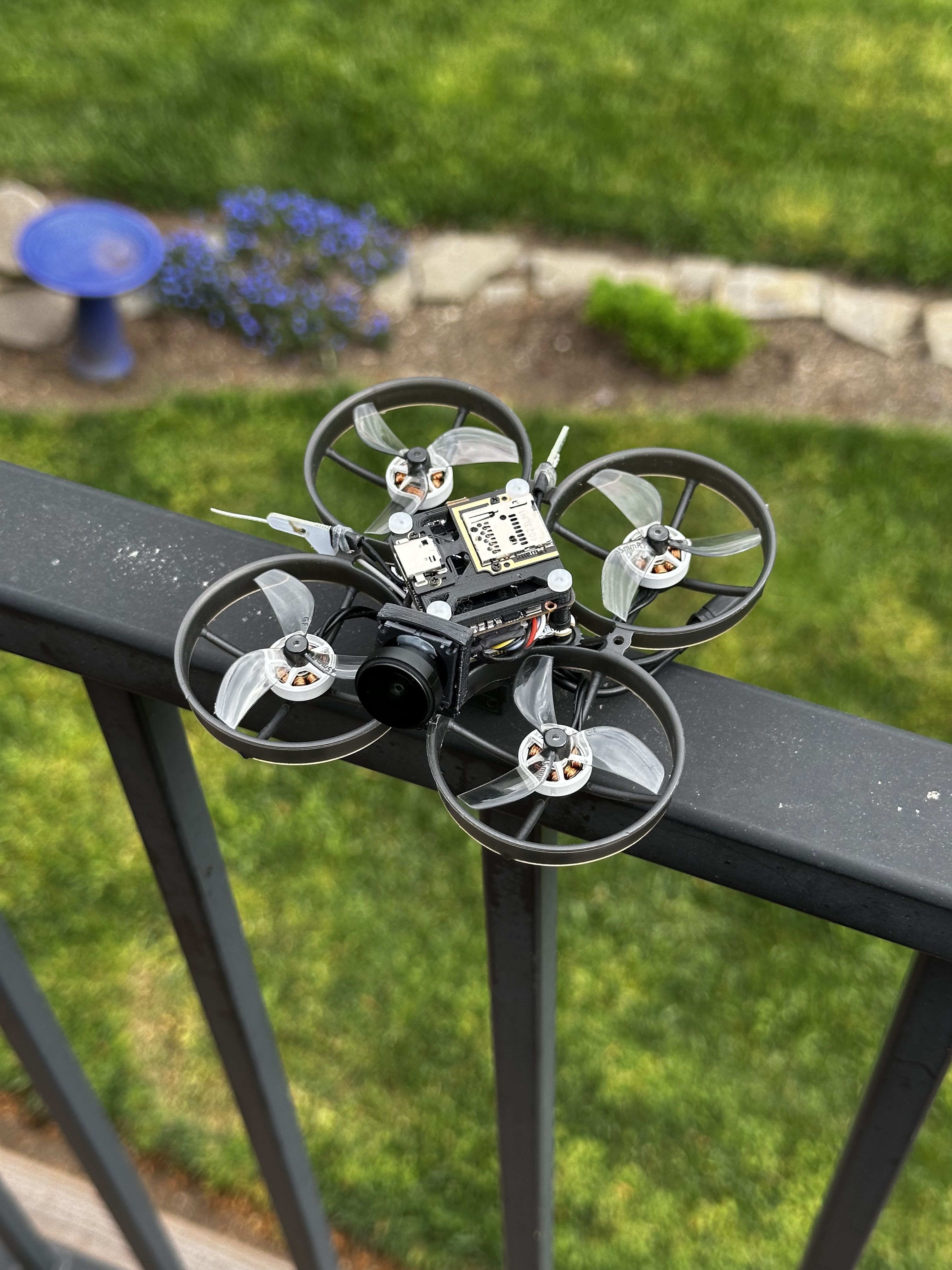

This is the latest iteration of Dax Neal's Mobigital design. It uses Quad Sensei 1102/ 10Kv motors and benefits from a naked 04 Air Pro unit. I've built many of the Mobigital7 builds using both Vista and 03 Air units but this one takes it to a new level. The image quality is fantastic and I'm using Tattuu 2s 650mah HV lipos with flight time of 4:30 minutes.

It's a tricky build but way worth it! I also found the decasing process much easier on the 04 Air Pro however the sorting of the various components is tricky but helped with a great 3D printed tray designed by Dax. It used the screws from the orginal cased version and is super slick.

The lens on the 04 Air Pro is BIG and one of the reasons the image quality if next level. The camera is also decased and leverages a printed holder that fixes with an m2 nylon screw throught the regular M80 frame holes.

The tune is dialed and I could not be happier! Hit me up with any quesitons.

Photos

Part List

Frame	Happymodel M80 Frame for Mobula7 O4 Pyrodrone.com	$6.99
Flight Controller	Flywoo GOKU F405 HD 1-2S 12A ELRS AIO V2 (2 builds) Flywoo.net	$69.99
Motors	4 x Quad Sensei 1102 10K Motor \| Quad Sensei Quadsensei.com	$47.96
Propellers	Gemfan 45mm-3 Tri-Blade 1.5mm Shaft Propellers - (4CW+4CCW) - Choose Color (7 builds) Pyrodrone.com	$3.99
FPV Transmitter	DJI O4 Air Unit Pro For DJI HD Video System (2 builds) Rotorriot.com	$229.00
Antenna	ORT Micro Vee 5.8GHz U.FL Antenna - Linear White \| Quad Sensei (4 builds) Quadsensei.com	$8.99
Batteries	Tattu 650mAh 2S 95C Lipo Battery \| Quad Sensei Quadsensei.com	$8.59
Hardware	M2.5x25mm Pan Head Nylon Screw Set \| Quad Sensei (4 builds) Quadsensei.com	$4.99

Show stores (4)

Like Copy Part List Follow Davidpe

Discussion

wind_rapport 7 hours ago

I immediately thought of Dax and was pleasantly suprised to see the comment. Your builds are extremely impressive.

Dax 16 hours ago

Wow! Nicely detailed write up!

Davidpe 10 hours ago

Thanks for the inspiration Dax! Keep it coming.
