MiniMint 7.5” Minilifter: Precision-Engineered-Versatlity

Engineered for Efficiency, Designed for Performance

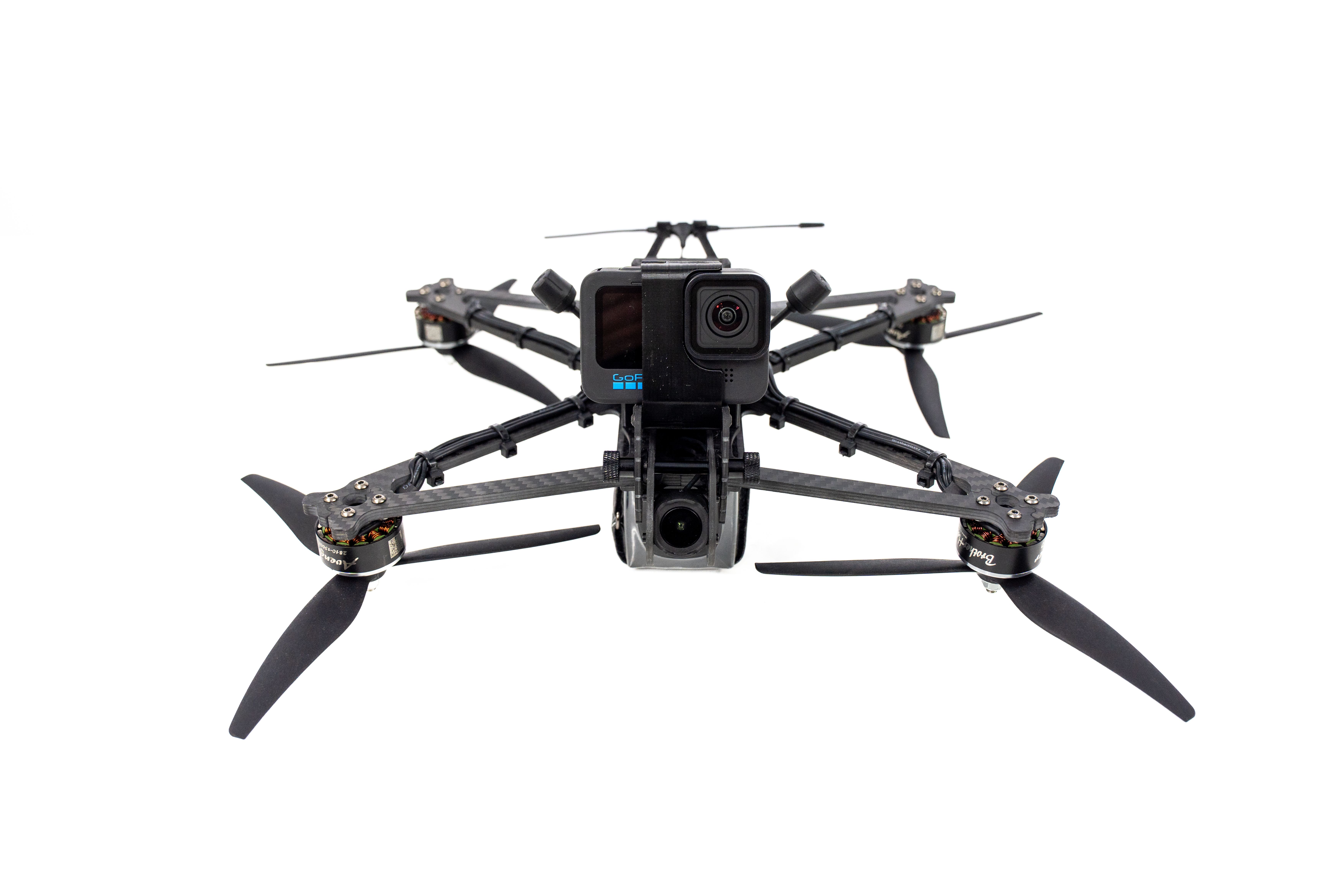

The MiniMint 7.5" Minilifter is a drone frame built around the principle of "form follows function." This compact powerhouse features a dual-arm design with interlocking motor mounts in a pusher configuration, allowing for closer motor placement and a minimized footprint without sacrificing performance.

Precision-engineered to accommodate a 6S 4500mAh/5200mAh battery underneath or a 6S 2200mAh on top, this frame shares the same quick-release camera mount system as the Straw Hat Aerial Vulture. Two adjustable knobs enable rapid camera angle adjustments, giving you complete control over your shot composition.

Pre - Order Now!

Versatile Configuration Options

Choose Your Perfect Setup:

Alt TagAlt Tag
Alt TagAlt Tag

  • Lite Config (2806.5 1300kv): GoPro/camera + top-mounted 6S 2200mAh battery
  • Cinematic Config (2808 1500kv): Camera + underslug 6S 5200mAh/4500mAh battery
  • Production Config (2810 1500kv): Camera + DJI SDR + underslug 6S 5200mAh/4500mAh battery
  • Livestream Config (2810 1500kv): GoPro/Camera + DJI SDR + underslug 6S 5200mAh/4500mAh battery
  • Long Range Config (2806.5 1300kv): GoPro + dual 6S 5200mAh/4500mAh batteries or Lithium-Ion Pack
  • Naked BMPCC Config (2808 1500kv): Naked BMPCC + optional DJI SDR + underslug 6S 5200mAh/4500mAh battery
  • Whoop Setup (2810 1500kv): Camera + Prop Guards (6” prop) + underslug 6S 5200mAh/4500mAh battery

Pre - Order Now!

Key Features

  • Component-centered design philosophy
  • Wide X-frame with symmetrical dual arms for optimal stability
  • Compact layout minimizes drag for superior aerodynamics
  • Quick-release camera mount with variable angle adjustment (Vulture compatible)
  • Versatile payload capacity: GoPro, Sony ZV-E10, Sony a6400, BMPCC Micro G2, BMPCC 4K, or Naked BMPCC
  • Integrated XT90/AS150 connector (AS150 mount available separately)
  • Efficient pusher-style motor mounting system
  • Dual battery mounting options: Top (up to 6S 3000mAh) and Bottom (up to 6S 5200mAh)
  • Direct DJI SDR compatibility
  • Clean field of view with props out of frame
  • Compatible with 6" prop guards
  • Tool-free access for easy maintenance and field repairs

Technical Specifications

Specification Detail
Product Name MiniMint 7"
Wheelbase 319mm
Frame Dimensions L246 × W290 × H35mm
Propeller Size 7-7.5 inches
Arm Thickness 5mm (premium carbon fiber)
Bottom Plate 2.5mm thickness
Top Plate 2.5mm thickness
Mid Plate 2.5mm thickness
VTX Shim 2.5mm thickness
Max Flight Stack Height 22mm
Max VTX Height 17mm
Flight Stack Mounting 20×20/Φ3mm, 30×30/Φ3mm
Motor Mounting 16×16/Φ3mm, 19×19/Φ3mm
VTX Mounting 20×20/Φ3mm, 25.5×25.5/Φ2mm
Dry Weight (with hardware) 230g ±5g
Weight with TPU 255g ±5g
Digital System Compatibility DJI O4 Air Unit Pro, DJI O3 Air Unit, DJI SDR, Analog VTX, Walksnail

Package Includes

  • 1 × MiniMint 7" Frame (premium carbon fiber construction)
  • 1 × Complete hardware set
  • 2 × M20×300mm battery straps
  • 2 × Camera Quick Release mounts (1/4-20 screw)
  • 1 × TPU GoPro Mount
  • 1 × Print package:
    • 2 × Antenna Mounts
    • 1 × XT90 Holder
    • 4 × Camera grommets
    • 1 × Rear Crossfire Mount
    • 1 × Side Crossfire Mount

Pre - Order Now!

Optional Accessories

  • Naked BMPCC Top Plate
  • DJI SDR Mount
  • 6" Prop Guards (coming soon)

Designed for professionals, built for versatility – the MiniMint 7.5" Minilifter delivers uncompromising performance in a compact, purpose-built package.

Photos

Part List

Flight Controller

RADIX 2 HD H7 Flight Controller for Digital FPV - 30*30mm (3 builds)
Pyrodrone.com
$99.00

Flight Controller

Aikon F7 30x30 V2.1 HD Flight Controller W/OSD (4 builds)
Pyrodrone.com
$75.99

Flight Controller

MY CART
Foxeer.com
$46.00

ESCs

MY CART
Foxeer.com
$84.00

Motors

4 x XING2 2809 Cinelifter Motor
Shop.iflight.com
$151.96

Motors

4 x T-Motor F90 2806.5 1500KV Long Range Motor (2 builds)
Pyrodrone.com
$143.96

Motors

4 x BrotherHobby Avenger 2810 Motor
Brotherhobbystore.com
$115.96

Motors

4 x BrotherHobby Avenger 2806.5 Motor
Brotherhobbystore.com
$107.96

Motors

4 x NEW! Xnova 2806.5 freestyle smooth line motor series. 1300kv_1700kv_1900kv | XNOVA MOTORS
Xnovamotors.com
See Site

Motors

4 x NEW! Xnova 2808 freestyle smooth line motor series. 1350kv_1500kv_1900kv | XNOVA MOTORS
Xnovamotors.com
See Site

Motors

4 x NEW! Xnova 2810 freestyle smooth line motor series. 1150kv_1400kv | XNOVA MOTORS
Xnovamotors.com
See Site

Motors

4 x Tmotorhobby Official store
Tmotorhobby.com
See Site

Motors

4 x Tmotorhobby Official store
Tmotorhobby.com
See Site

Propellers

Gemfan Cinelifter 7.5" 7535 7.5x3.5x3 Tri-Blade Polycarbonate Propellers - 2CW+2CCW
Pyrodrone.com
$6.99

Propellers

T-Motor C7.5x4.6x3 Cinematic Tri-Blade Carbon Fiber Nylon Propellers - 1CW+1CCW
Pyrodrone.com
$12.99

FPV Transmitter

DJI O4 Air Unit Pro For DJI HD Video System (2 builds)
Rotorriot.com
$229.00

Receiver

TBS Crossfire Diversity Nano Rx - FPV Long Range Drone Receiver
Pyrodrone.com
$59.95

Receiver

TBS Crossfire Nano RX PRO FPV Long Range Drone Receiver (17 builds)
Pyrodrone.com
$44.99
