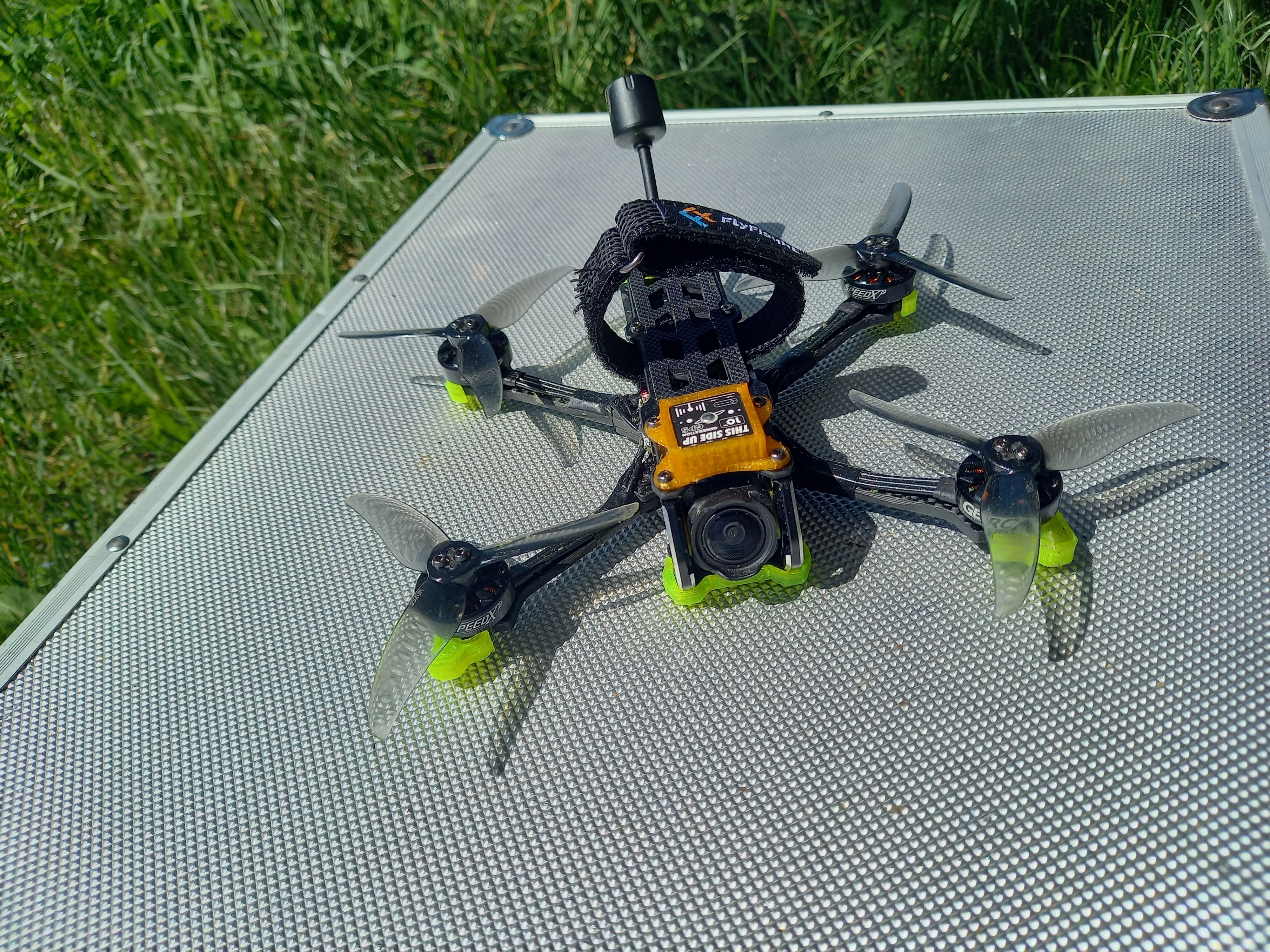

Here's my new project to replace my ATLAS 4".
I built this quad with the idea of keeping my 4s 18650 Molicel batteries but focusing the flight more on freestyle than long-range.
I found this frame at a reasonable price, so I transferred the battery, GPS, RX ELRS, and my O3 air unit into it.
I installed GEPRC 1804 3450KV motors; I don't need more because my batteries can't handle more than 36A peak...
Gemfan 3520 at maximum; the 3525s pull too hard!
The handling is very good despite the 195-gram battery.
I'm able to fly for 18 minutes without pushing the throttle too hard.
With my "cinematic" freestyle skills, I exceed 13 minutes, which is pretty close to the flight time of my 4" quad.
The orange GPS mount was found online and printed by my friend. Thanks, Greg!
Compared to my 4" ATLAS quad , I find it heavier and more inertial. It's quite different, and I really like it.
Frame |
Volador VX3 VX3.5 O3 Freestyle Frame Kit
(10 builds)
Flyfish-rc.com
|
$31.90 |
Flight Controller |
SpeedyBee F405 Mini BLS 35A 20x20 Stack
(26 builds)
Speedybee.com
|
$59.99 |
Motors |
4 x GEPRC SPEEDX2 1804 2450KV/3450KV Motor - GEPRC
(2 builds)
Geprc.com
|
$67.96 |
Propellers |
GEMFAN Hurricane 3520-3 (4pcs)
(2 builds)
Drone-fpv-racer.com
|
See Site |
FPV Camera |
DJI O4 Air Unit Series - DJI | See Site |
Receiver |
ELRS Nano Receiver
(4 builds)
Betafpv.com
|
$9.99 |
Batteries |
INR-18650-P30B - Molicel
(3 builds)
Molicel.com
|
See Site |
Misc Parts |
GOKU GM10 Mini V3 GPS
(8 builds)
Flywoo.net
|
$17.99 |
