Ikon 2.5 Max

By truckz on May 21, 2025

2  0  0

AvionRC Ikon 2.5 MAX frame
Flywoo GN745 45A AIO
Xing2 1404 3000kv motors
HQ triblade 2.5x2.5 props
O3 cam and air unit, O4 Pro antennas
Geprc Nano M10 GPS (fixed in place with ummagrip lite and a zip tie)

AUW w/ GNB 850mAh LiHV: 236g

GPS was not really necessary but the build is light enough to include it. There's room for a buzzer still.

Flew very well on the maiden flight. There was a lot of propwash but dynamic idle took care of that once enabled.

The only issue I encountered on this build is there is very little clearance once assembled to plug the usb cable into the FC. I had to modify a USB-C cable by shaving the plastic away from the connector.

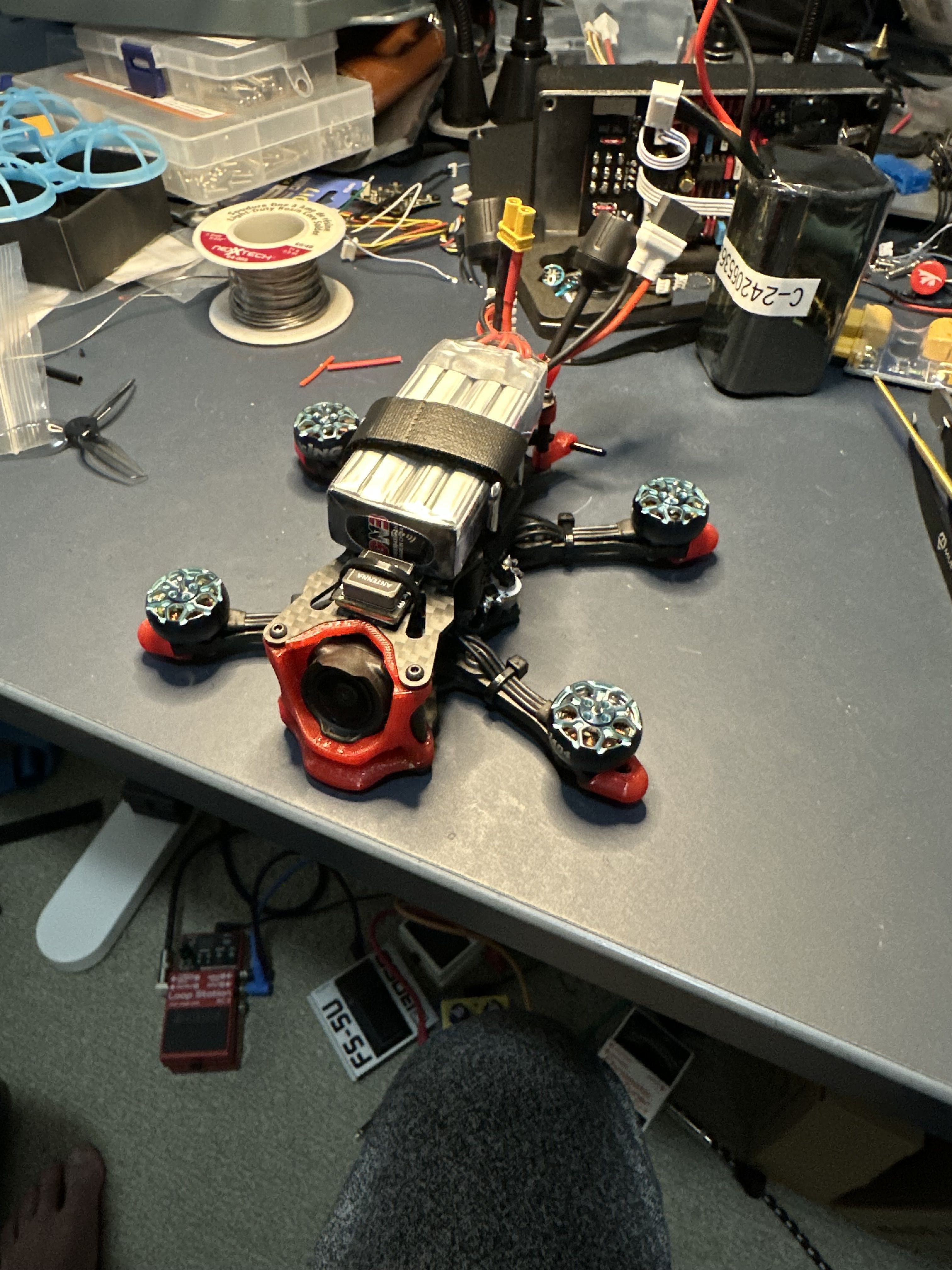

Photos

Part List

Frame

Ikon 2.5 MAX Frame Kit
Avionrc.com
$39.95

Flight Controller

Flywoo GOKU GN 745 45A AIO 32bit (MPU6000) V3 (5 builds)
Flywoo.net
$89.99

Motors

4 x XING2 1404 Toothpick Ultralight Build (unibell)
Shop.iflight.com
$63.96

Propellers

HQProp TR2.5X2.5X3 Tri-Blade Prop (2CW+2CCW)
Rotorvillage.ca
$2.99

FPV Camera

DJI O3 Air Unit Camera Module
Store.dji.com
See Site

FPV Transmitter

DJI O3 Air Unit Transmission Module
Store.dji.com
See Site

Antenna

2 x DJI O4 Air Unit Pro Antenna
Store.dji.com
See Site

Receiver

GEPRC ELRS Nano 2.4G PA100 Receiver - GEPRC
Geprc.com
$16.99

3D Printed

Ikon 2.5 Max and Ikon 3 DJI O4 parts by Avantquads
Thingiverse.com
See Site

Misc Parts

GEP-M10 Series GPS Module - GEPRC (7 builds)
Geprc.com
$18.99
Show stores (7)
