Nexa 3.5 Evo Pro

By GilgameshFPV on May 27, 2025

1  0  0

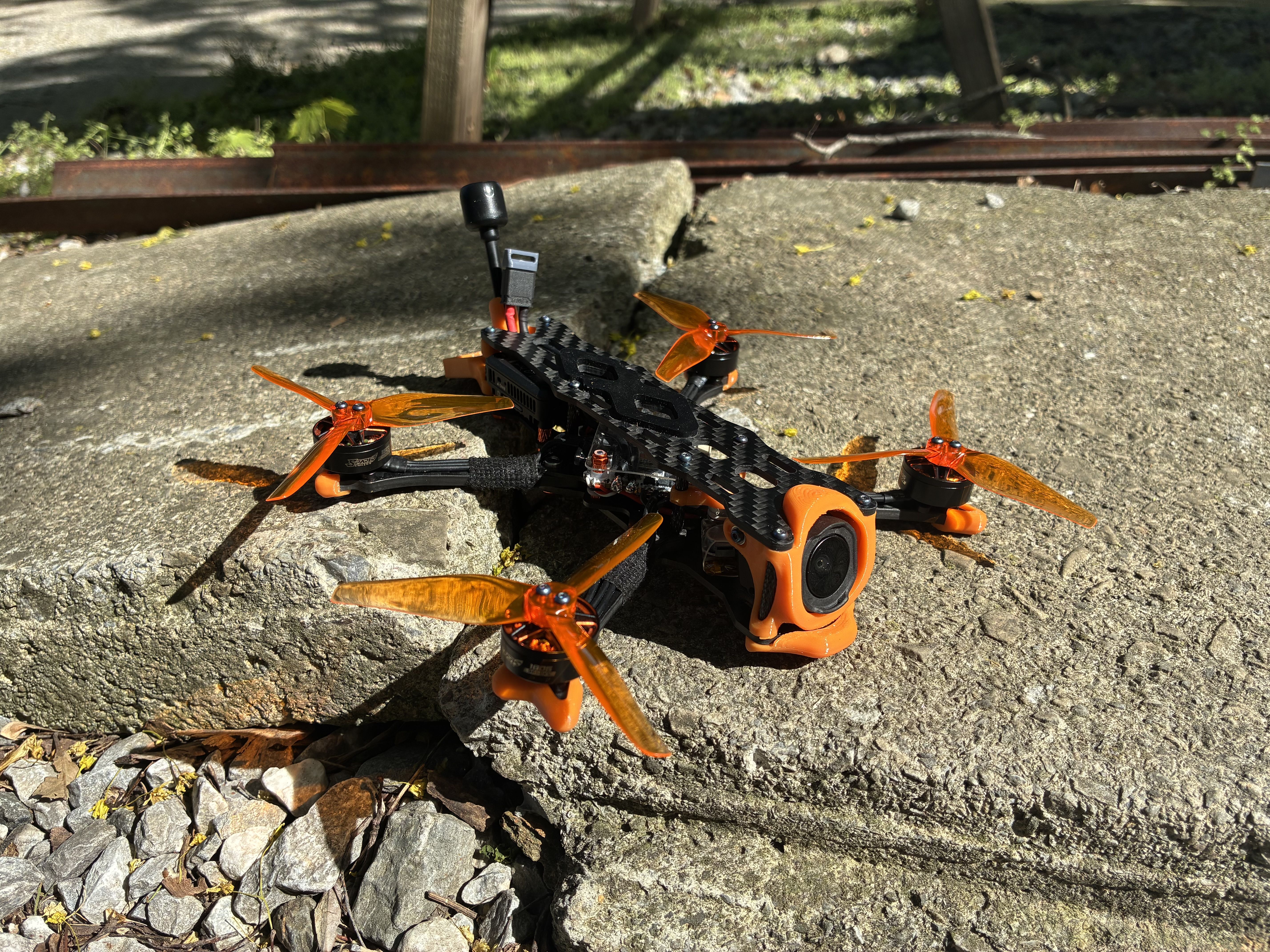

A custom-built 3.5” FPV platform optimized for agile performance and high-definition digital video, blending cutting-edge components for precision and reliability. It features an AvionRC Nexa 3.5 EVO PRO frame and is powered by a GOKU GN 745 45A AIO flight controller with VCI SPARK 1605 3650KV motors and HQProp 3.5x2.5x3 triblade propellers, delivering responsive, high-thrust flight dynamics. The DJI O4 Air Unit Pro ensures crystal-clear FPV transmission to DJI Goggles N3, with control via the DJI RC 3. Navigational confidence is enhanced by a GOKU GM10 Mini V3 GPS, supporting GPS Rescue. The 4S 650mAh 120C LiHV battery provides punchy power for freestyle or tight-spot exploration. Running Betaflight 4.5.2 with tuned filter settings and default PID settings.

Photos

Part List

Frame

Nexa 3.5 EVO PRO Frame Kit
Avionrc.com
$48.95

Flight Controller

Flywoo GOKU GN 745 45A AIO 32bit (MPU6000) V3 (6 builds)
Flywoo.net
$89.99

Motors

4 x VCI SPARK 1605 MOTOR-1800KV/2050KV/2450KV/2800KV/3350KV/ 3650KV - VCI HOBBY
Vci-rc.com
See Site

Propellers

HQProp T3.5X2.5X3(2CW+2CCW)-Poly Carbonate
Hqprop.com
$2.79

FPV Camera

DJI O4 Air Unit (8 builds)
Store.dji.com
See Site

Antenna

Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna For DJI O3 (6 builds)
Flywoo.net
$9.99

Batteries

GAONENG GNB LiHV 4S 15.2V 650mAh 120C XT30 LiPo Battery for FPV Drone Quads
Gaoneng.shop
$30.80

Radio

DJI FPV Remote Controller 3
Store.dji.com
See Site

Goggles

DJI Goggles N3
Store.dji.com
See Site
Show stores (6)
