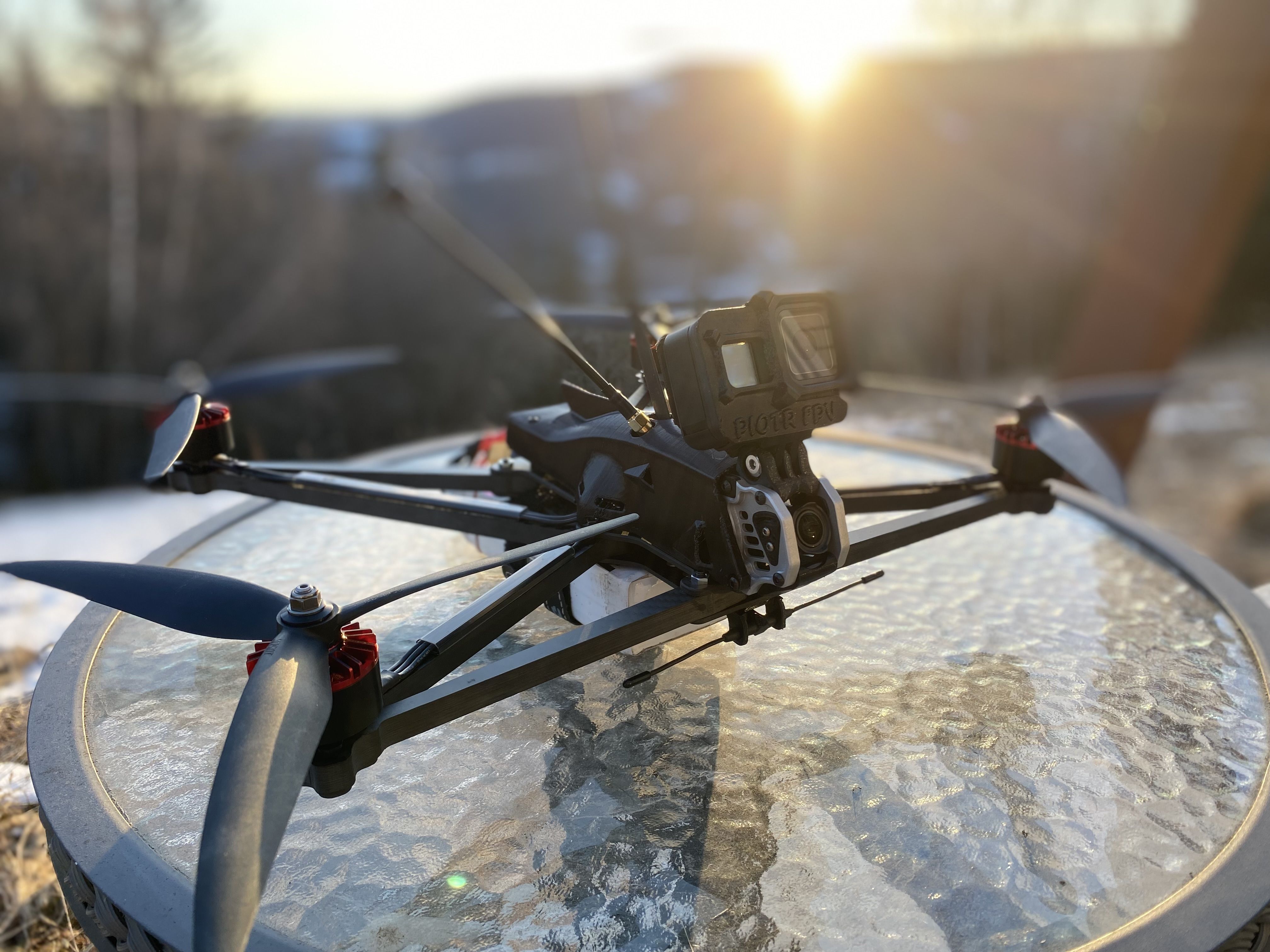

Oxylous 10.5" – Long-Range Wind Slayer Built for the North
After flying 7" and 8" long-range builds for years, I kept hitting a wall every time the wind kicked in. Gusts would throw my quads around like toys. I needed something that could punch through brutal alpine turbulence and stay locked-in no matter what Norway or the Alps threw at me.
Enter the Oxylous 10.5" — a Greek god of a frame. Aerodynamic as hell, no drag, no drama. When the 7-inch builds start getting slapped around, this beast just cuts through like it’s flying on a calm day. Built for the harsh north. Tested in the worst. Unshakable.
Check out the raw GoPro 8 footage with stabilization turned OFF:
https://youtu.be/bgXxy5G1hCQ?si=M6_NrANah_dL-2VO
OSD DVR from goggles 2
https://youtu.be/mpcZlniB7YI?si=5DugKV7vv15PwoZK
If anyone’s looking to build a long-range rig like this, I’m sharing the full spec list along with the dry and takeoff weight. This info is useful because I’m also including a screenshot of my PID tune and filter settings for Betaflight 4.5 – dialed in and tested on this exact setup.
Hope it helps someone out there building something similar!
Build Specs:
• Frame: Oxylus 10.5 inch
• Flight Controller: JHEMCU GF30F405 8S
• ESC: Foxeer Reaper 65A 4-in-1
• Video Transmission: DJI O4
• Motors: T-Motor 3115 1050kv
• Propellers: Gemfan 10x5x3
• Weight (dry): approx. 1100 g
• Takeoff Weight (with CNHL 6S 6000mAh 70C and GoPro Hero 8): approx. 2267 g
• RC Link: Bandit BR3 ExpressLRS 915MHz
• GNSS: Foxeer M10Q250 (GPS, Glonass, Galileo, Beidou)
PID TUNE update
https://drive.google.com/file/d/1MmVnKNpeKKojP2--jjcf4biF-Iszh5RU/view?usp=drivesdk
FILTERS
https://drive.google.com/file/d/1wvII-foZjkhRCQFRY4cp_EC-omG2pvfj/view?usp=drivesdk
Frame |
oxylus 10.5" DJI O4 & O3 - FpvCncDrone
Fpvcncdrone.com
|
See Site |
Flight Controller |
Aliexpress.com
Aliexpress.com
|
$30.00 |
ESCs |
MY CART
Foxeer.com
|
$84.00 |
Motors |
4 x Velox 3115 FPV X4 X8 Cinelifter Drone 3-12S KV500/700 | T-MOTOR®
Store.tmotor.com
|
$496.00 |
Propellers |
Gemfan 1050-3 Glass fiber nylon
Gfprops.com
|
$8.99 |
FPV Camera |
DJI O4 Air Unit Pro Camera Module
(2 builds)
Amazon.com
|
$109.00 |
FPV Transmitter |
DJI O4 Air Unit Pro Transmission Module
(2 builds)
Amazon.com
|
$169.00 |
Antenna |
5.8GHz Albatross 150mm Antenna
(3 builds)
Shop.iflight.com
|
$15.99 |
Receiver |
Bandit BR3 ExpressLRS 915MHz Receiver
Radiomasterrc.com
|
See Site |
Batteries |
CNHL G+Plus 6000mAh 22.2V 6S 70C Lipo Battery with EC5 PlugUS
(2 builds)
Chinahobbyline.com
|
$92.99 |
Batteries |
Tattu 9000mAh 6S 25C 22.2V Lipo Battery Pack with NA Plug
Genstattu.com
|
$211.99 |
Misc Parts |
MY CART
Foxeer.com
|
$19.00 |
