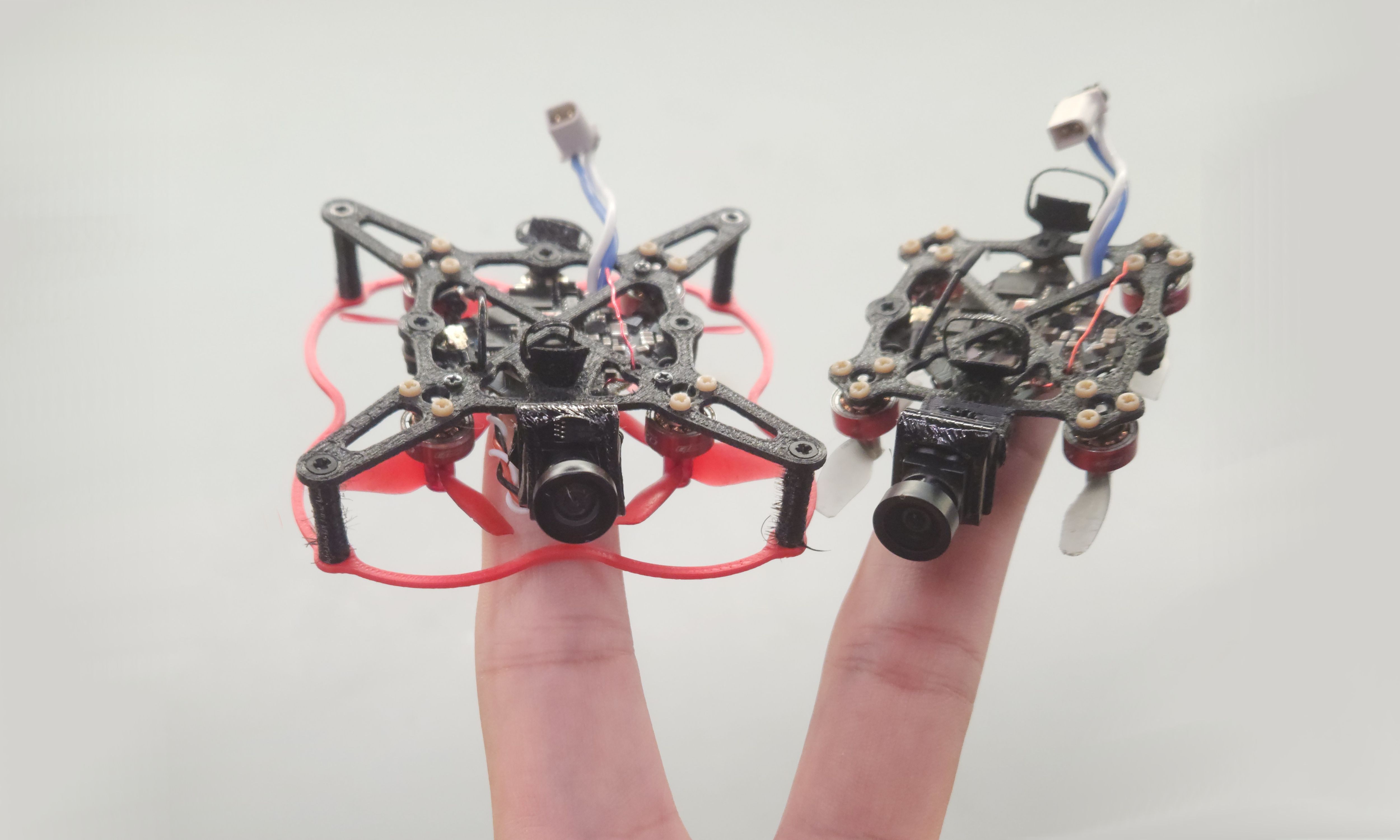

My smallest micro drone so far. A 32mm drone is coming soon.
Nano45
Nanowhoop
Nano45
build video https://studio.youtube.com/video/9ryq321f5s0/edit
buy 3d printed parts https://www.etsy.com/listing/1900749387/worlds-smallest-fpv-drone-3d-printed-kit
files for V3.6 https://cults3d.com/en/3d-model/various/worlds-smallest-fpv-drone-v3
Custom PAHT-CF frame 45mm https://www.etsy.com/listing/1900749387/worlds-smallest-fpv-drone-3d-printed-kit
Custom TPU Cam mount https://www.etsy.com/listing/1900749387/worlds-smallest-fpv-drone-3d-printed-kit
Rcinpower 29,000kv motors https://pyrodrone.com/products/rcinpower-0702-29000kv-brushless-motor-for-fpv-choose-color
Betafpv 5in1 https://betafpv.com/collections/brushless-flight-controller/products/air-brushless-flight-controller
HQprop 31mm Ultralight Bi-Blade Props https://www.hqprop.com/hq-ultralight-prop-2x09-51mm-grey2cw2ccw-pc-15mm-shaft-p0457.html
c03 cam https://betafpv.com/products/c03-fpv-micro-camera
FC screws nylon m2x10 https://www.amazon.com/dp/B0CB6JT6TV?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1
Peek Motor screws https://webleedfpv.com/products/peek-micro-flat-head-whoop-motor-screws
Weight 14.3g
Flight Times:
260mah ~2mins full speed, ~3mins crusing https://betafpv.com/products/lava-1s-260mah-80c-battery-5pcs?_pos=1&_sid=f8e11d9fc&_ss=r
300mah ~2.5mins full speed, ~3.5mins cruising https://webleedfpv.com/collections/batteries-chargers-accessories/products/webleedfpv-300mah-1s-ph2-0-or-bt2-0-lipo-batteries?bg_ref=QABkLjxTRA
Frame |
etsy.com
Etsy.com
|
See Site |
Flight Controller |
Air Brushless Flight Controller
(9 builds)
Betafpv.com
|
$44.99 |
Motors |
4 x RCINPower 0702 29000KV Brushless Motor for FPV - Choose Color
Pyrodrone.com
|
$67.96 |
Propellers |
HQ Ultralight Whoop Prop 1.2X1.2 (31MM) (2CW+2CCW)-PC-1MM Shaft
Webleedfpv.com
|
$3.69 |
FPV Camera |
C03 FPV Micro Camera
(6 builds)
Betafpv.com
|
$19.99 |
Antenna |
5.8G linear Antenna for Mobula6 HDZERO and Mobula ECO 2024
Webleedfpv.com
|
$2.00 |
Batteries |
BETAFPV 5pcs Lava 1S 260mAh Lipo Battery 3.8V 80C LiHV Battery with BT2.0 Connector Compatible for 1S FPV Tiny Whoop Drone Quadc
Amazon.com
|
See Site |
3D Printed |
Worlds Smallest FPV drone V3.6
Cults3d.com
|
See Site |
Hardware |
1250PCS Black Flat Head Phillips Screws Bolts and Nuts, M2 M3 M4 M5 M6 Metric Full Threaded Phillips Cross Recessed Nylon Plasti
Amazon.com
|
$23.00 |
Misc Parts |
Meteor Series Motor Fixing Screws Pack
(2 builds)
Betafpv.com
|
$1.99 |
