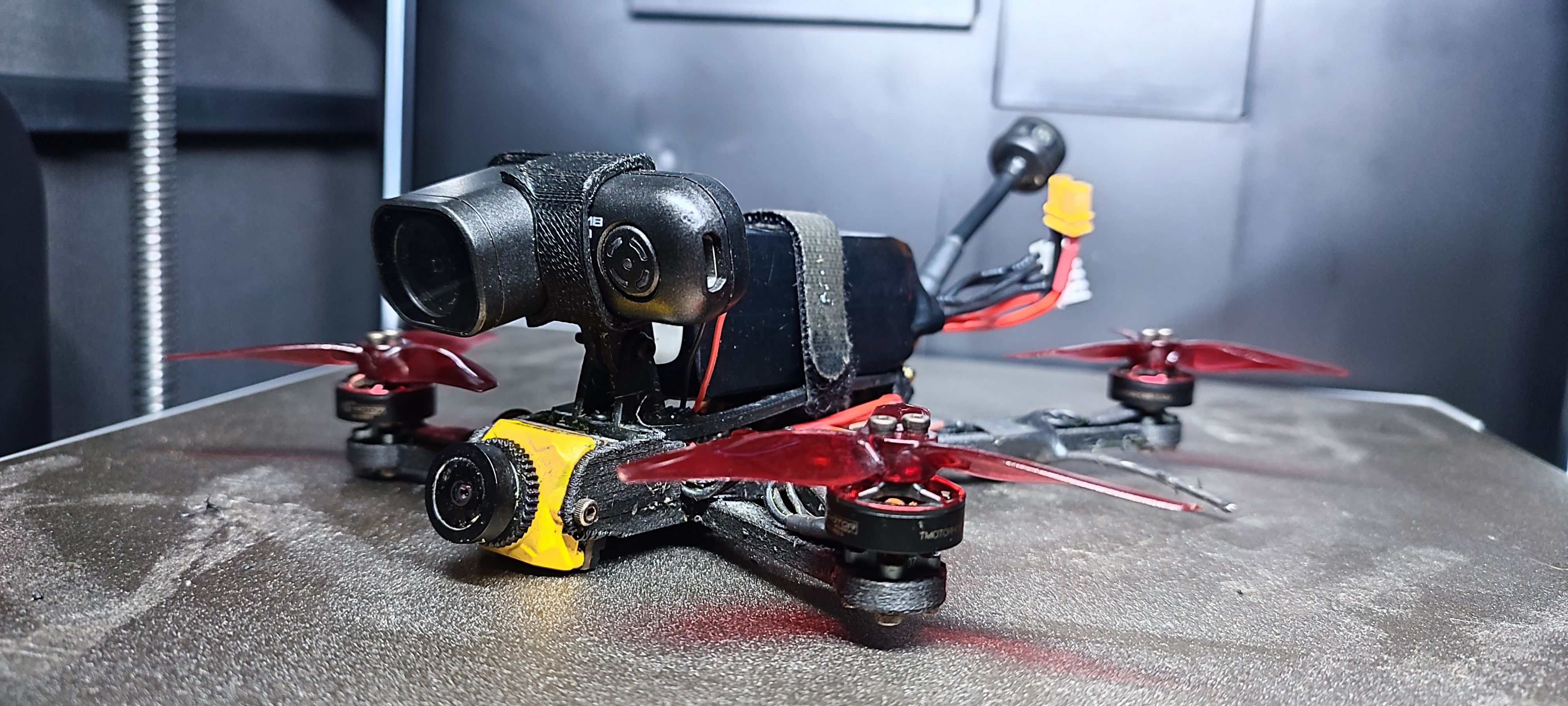

here is my second full diy build
it's a multipurpose quad, i use it mainly for cinematic, with gripper props, it's a good ( but absolutely not crash proof ) freestyle
I choosed this big caddx camera for it's video quality, a very big jump compared to my foxeer predator nano
frame is fully 3d printed in pet cf
fc/esc : jhemcu ghf13 aio
receiver : tbs nano rx
motors : t motors f1404 3800kv
vtx : tbs unify pro hv
antenna : 80mm rhcp true rc
transmission camera : caddx baby ratel
cine props : gemfan 3020 3
freestyle props : gemfan 3028 3
battery : bonka 520mah 4s HV ( 5 min flight time ), i'll try 3s or 2s with bigger capacity
camera : runcam thumb pro
Flight Controller |
JHEMCU GHF13AIO F4 13A 2-4S BL_S 4-in-1 Brushless Flight Controller
(2 builds)
Getfpv.com
|
See Site |
Motors |
4 x T-Motor F1404 - 3800kv
Drone-fpv-racer.com
|
See Site |
Propellers |
Gemfan WinDancer 3028 Tri-blade 3" Prop 4 Pack (5mm/1.5mm Mounting) - For at RaceDayQuads
(10 builds)
Racedayquads.com
|
$2.69 |
FPV Camera |
Caméra vidéo Caddx Baby Ratel 1,8 Lens Starlight FPV jaune kaufen | FPV24.com
Fpv24.com
|
See Site |
FPV Transmitter |
metteur vido 5.8GHz TBS Unify Pro 5.8GHz V3
Studiosport.fr
|
$32.13 |
Antenna |
Antenne Core 5.8 SMA 80mm - TrueRC
Studiosport.fr
|
$16.00 |
Receiver |
TBS Crossfire Nano Rx Special Edition FPV Long Range Drone Receiver
(163 builds)
Pyrodrone.com
|
$44.95 |
Batteries |
Batterie LiPo HV 4S 520mAh 80C (XT30) - Bonka
Studiosport.fr
|
$13.00 |
