Kayoumini HDZero

By RedFrog on Sep 14, 2025

1  0  0

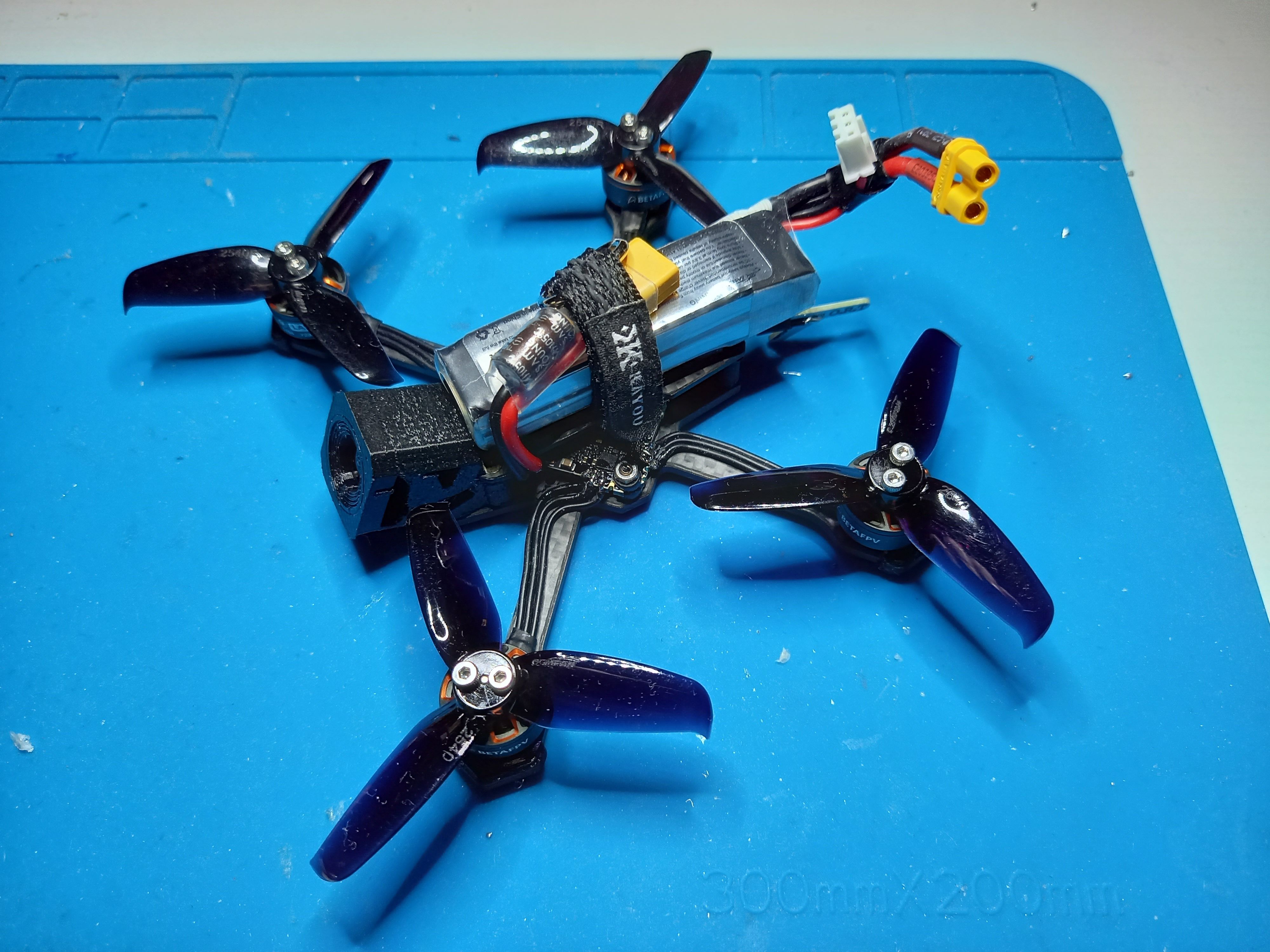

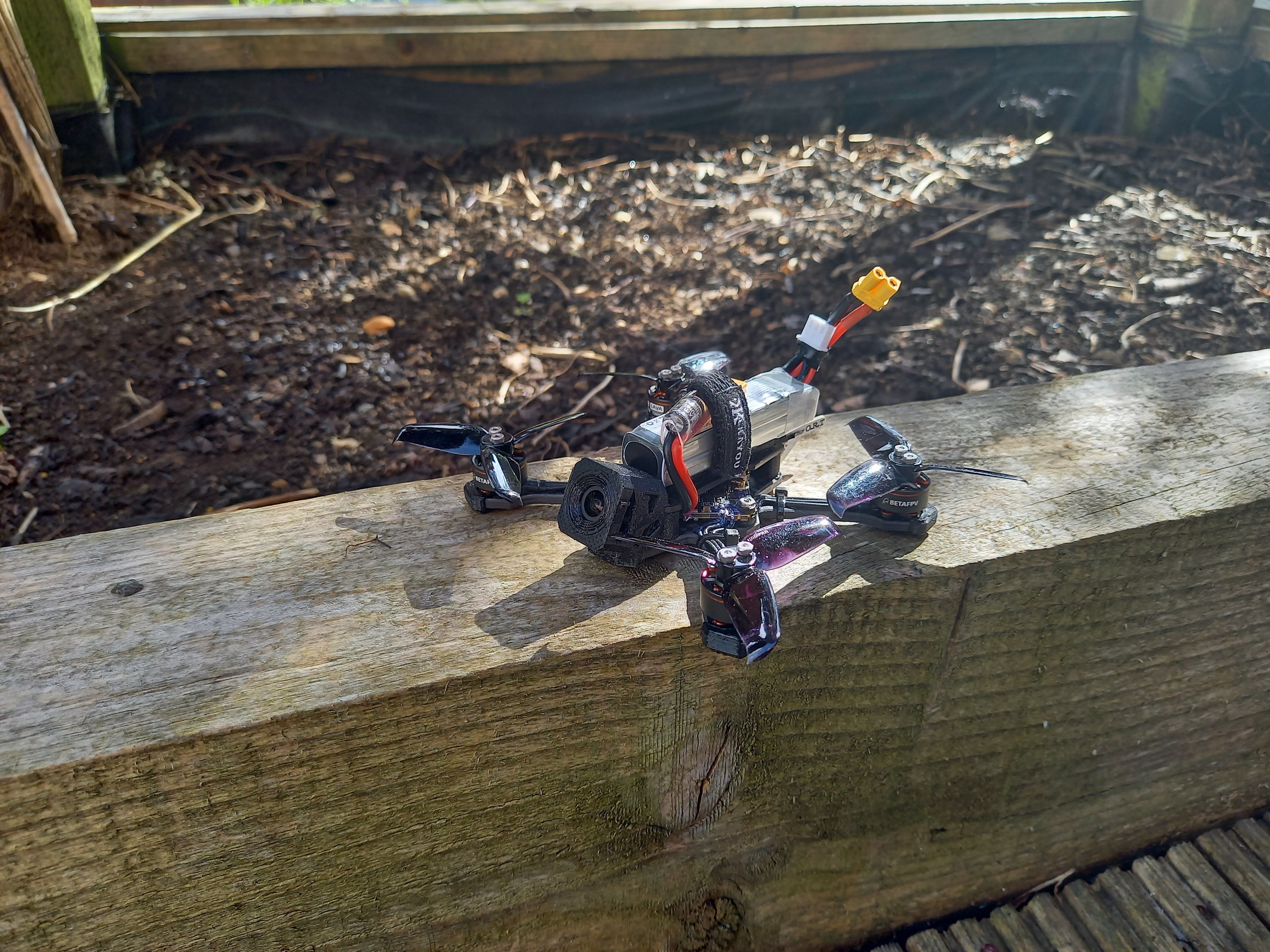

A very nice small park ripper - wanted to use the new HDZero AIO15 and the Kayou 2.5" frame felt like a pefect fit. The AIO integrates an ELRS receiver and a VTX allowing the use of the 8mm standoffs option of the frame (frame ships with both 8 and 12mm standoffs).
Picked the Lava 1104 motors from BetaFPV - works quite well with 2S batteries, giving a nice throttle resolution for close quarter flying - and becomes extremely fast with a 3S batterie. Just shy of 100g AUW (with a Tattu 2S 450mAh) so extremely quiet to boost.

Photos

Part List

Frame

Kayoumini 2.5"
En.kayou-frames.com
See Site

Flight Controller

HDZero AIO15 – 2S/3S Digital AIO Flight System | HDZERO
Hd-zero.com
$109.99

Motors

4 x LAVA Series 1104 | 7200KV Brushless Motors (2 builds)
Betafpv.com
$51.96

FPV Camera

HDZero Lux Camera | HDZERO
Hd-zero.com
$44.99

Antenna

ORT Micro Vee Linear 5.8GHz Antenna U.FL (5cm)
Team-blacksheep.com
$5.99

Batteries

Tattu 450mAh 2S 95C HV 95C (2 Pack)
Yourfpv.co.uk
See Site
Show stores (5)
